Speaker - Left Rear (UQ3)
Speaker - Left Rear (UQ3)

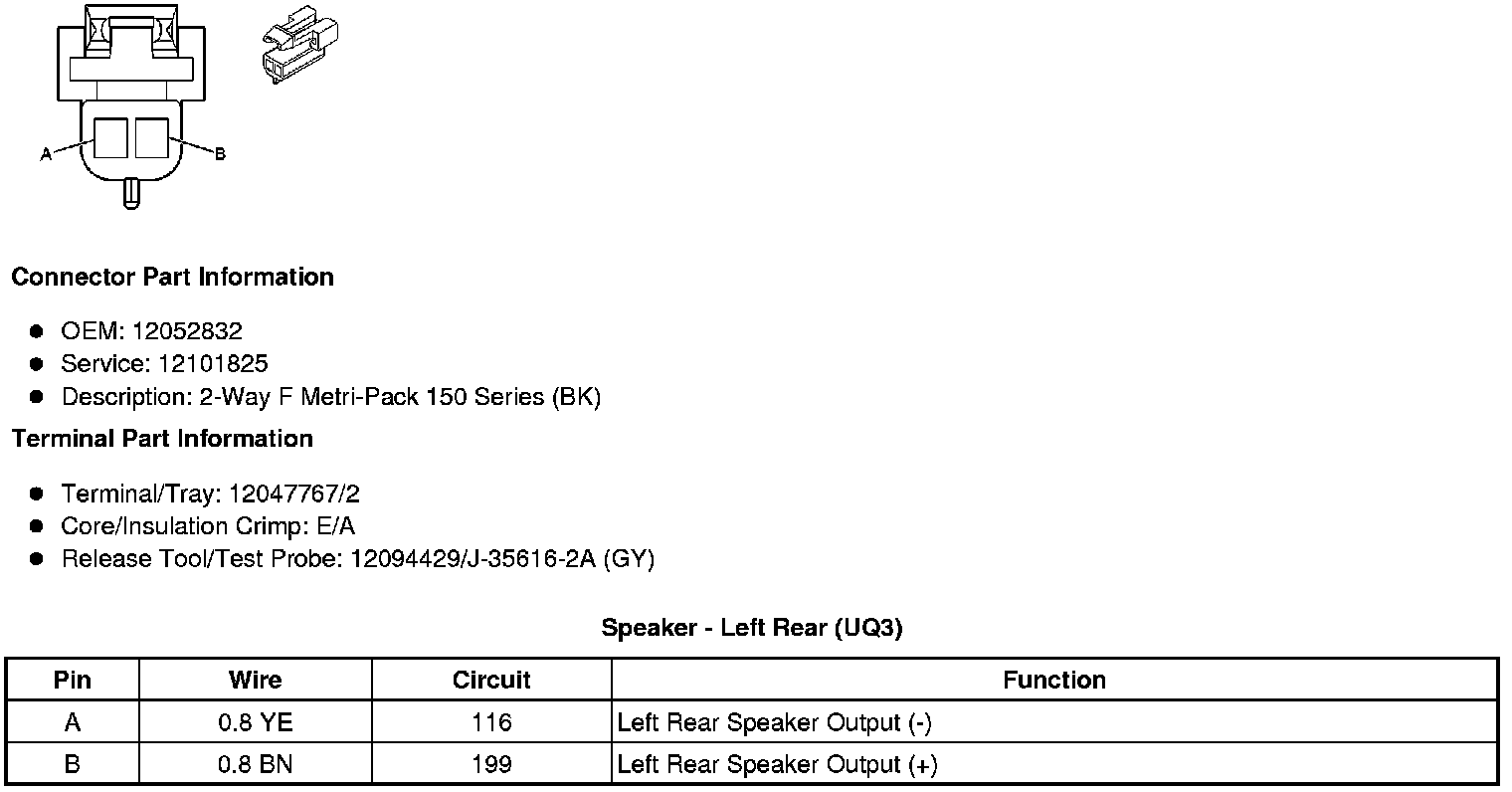

Component Connector End Views
Speaker - Left Rear (UQ3)
