Inside Rearview Mirror (ISRVM) (Without UE1)
Inside Rearview Mirror (ISRVM) (Without UE1)
Component Connector End Views

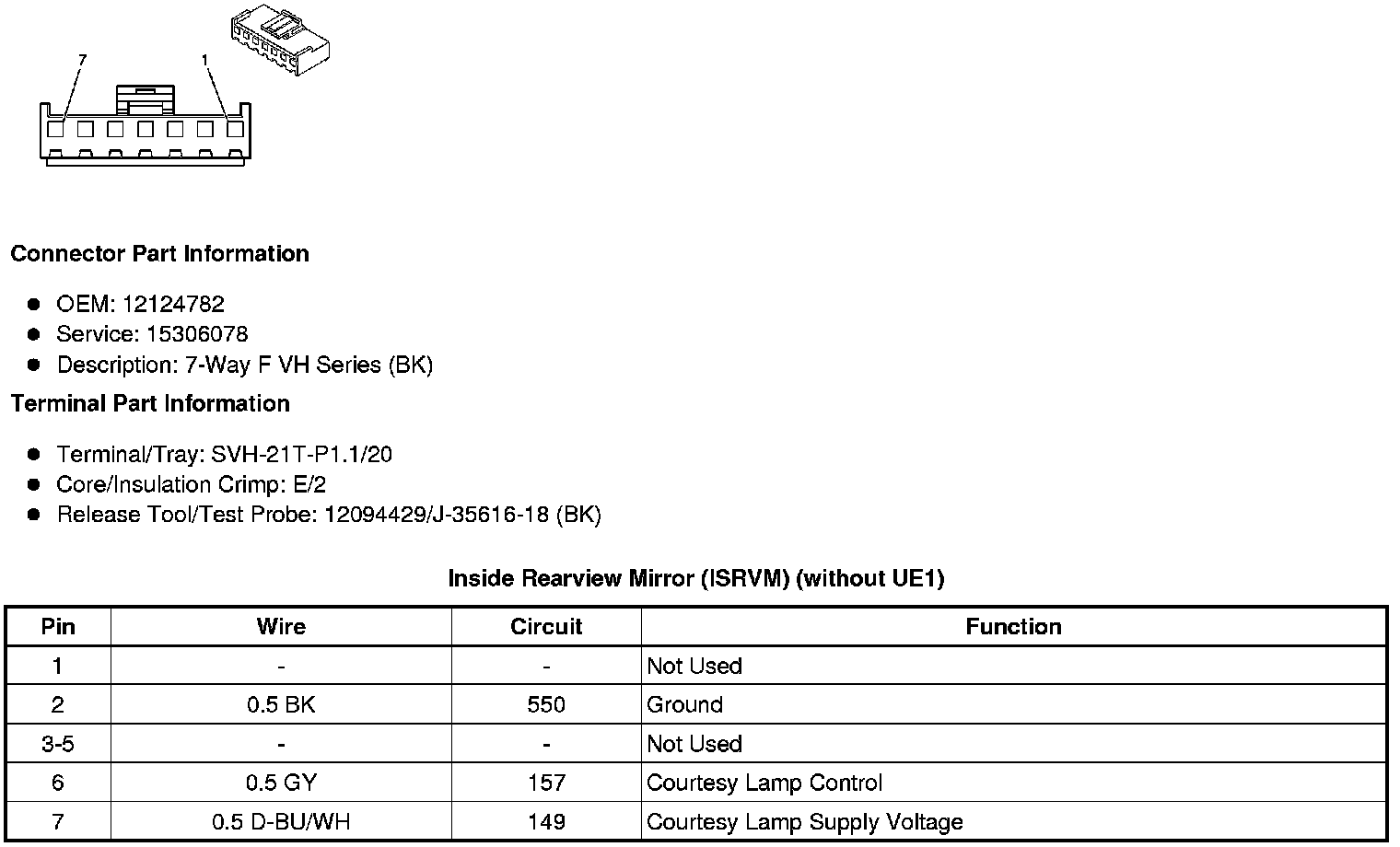

Inside Rearview Mirror (ISRVM) (without UE1)
