Electronic Brake Control Module

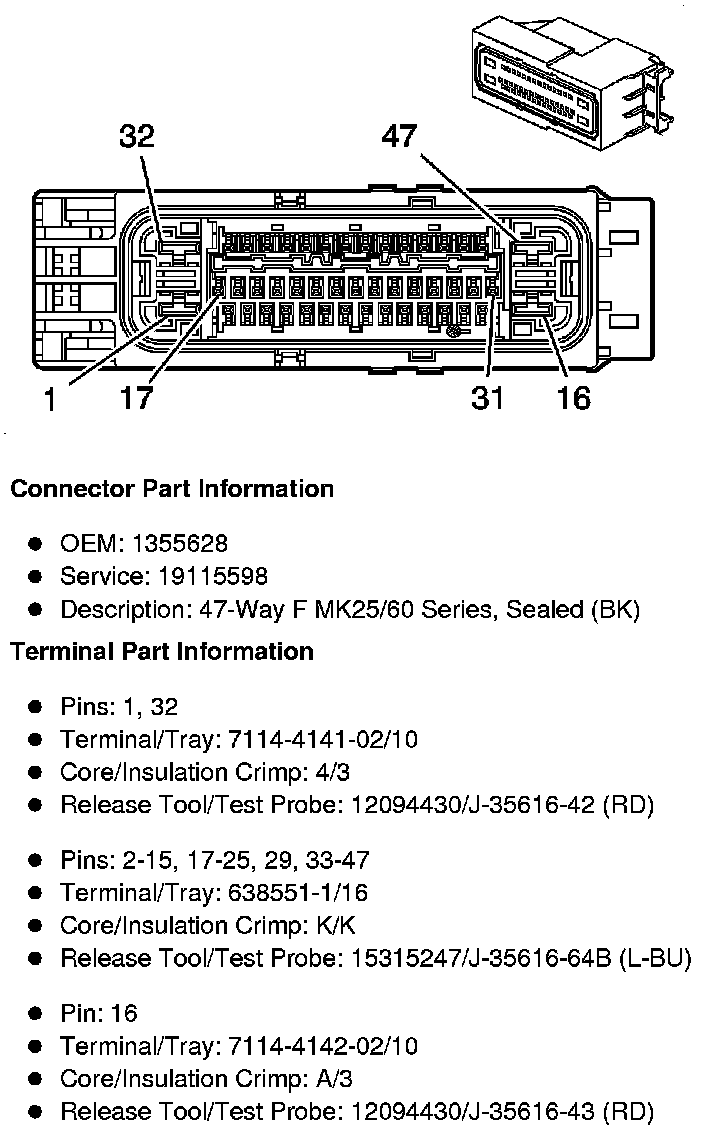

Component Connector End Views

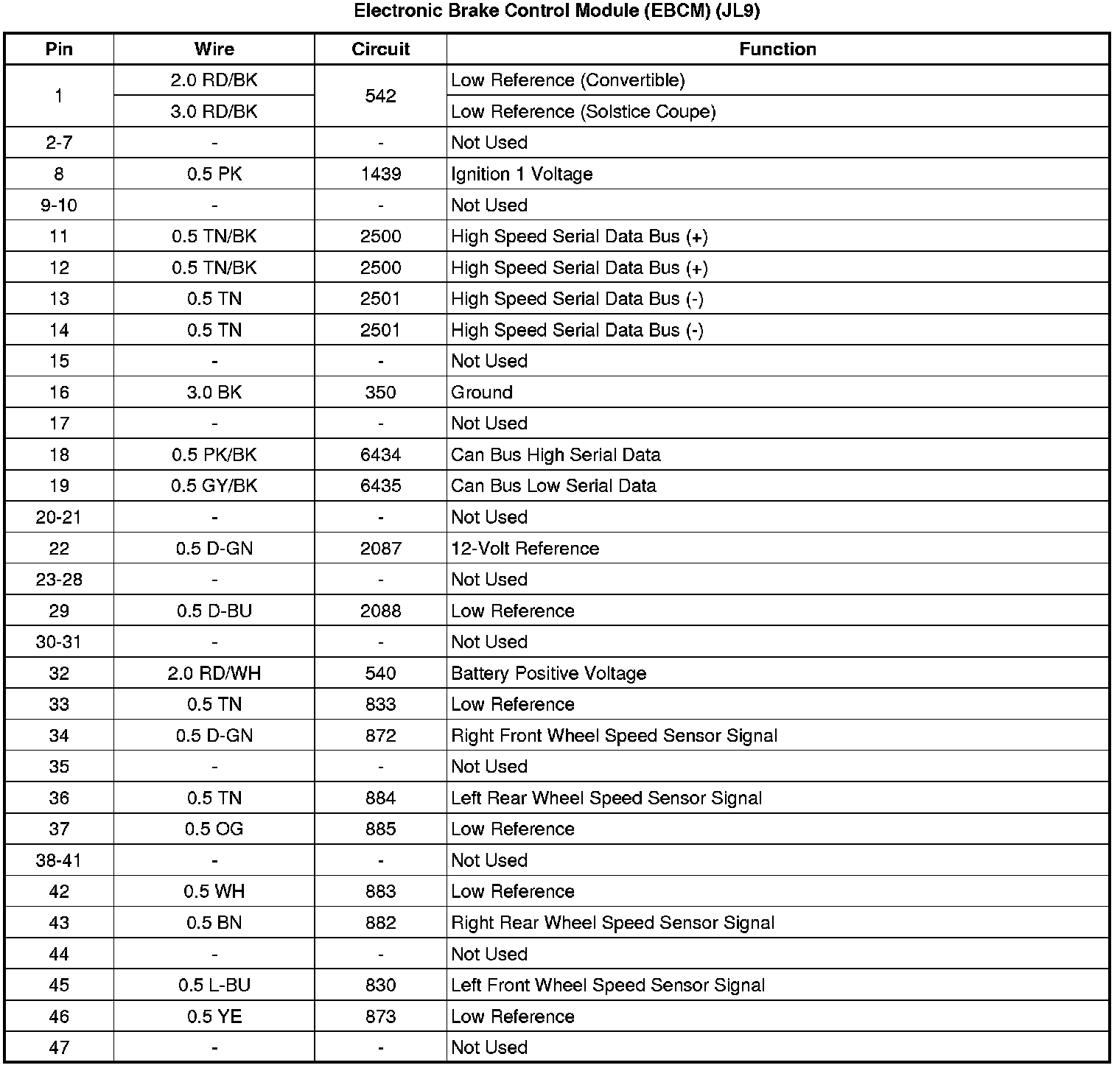

Electronic Brake Control Module (EBCM) (JL9)
