Home >> Pontiac >> 2009 >> Solstice L4-2.0L Turbo >> Repair and Diagnosis >> Diagrams >> Connector Views >> Combination Switch >> Turn Signal/Multifunction Switch X1

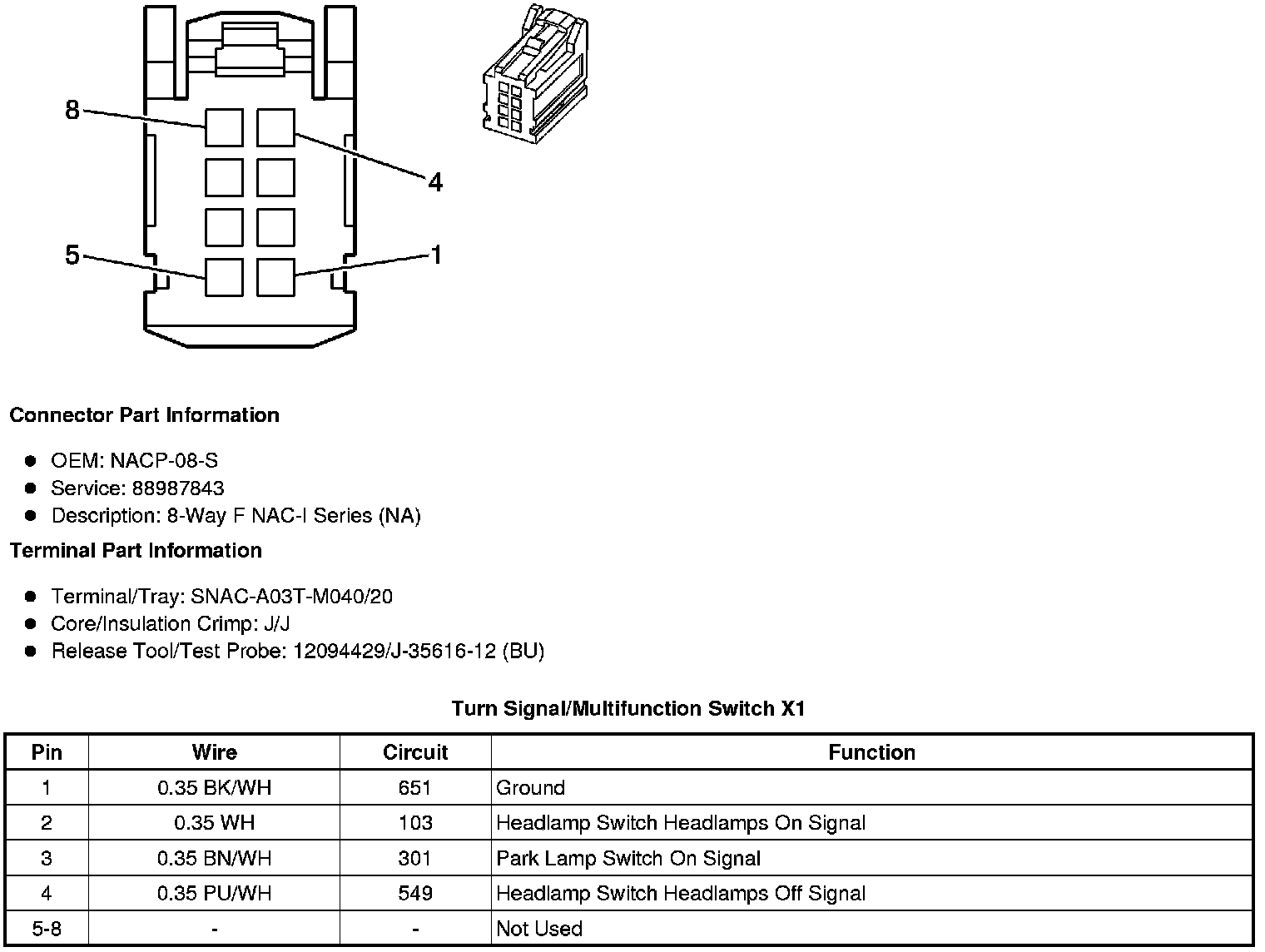

Turn Signal/Multifunction Switch X1




Component Connector End Views
Turn Signal/Multifunction Switch X1
