Amplifier, Sound System
>>

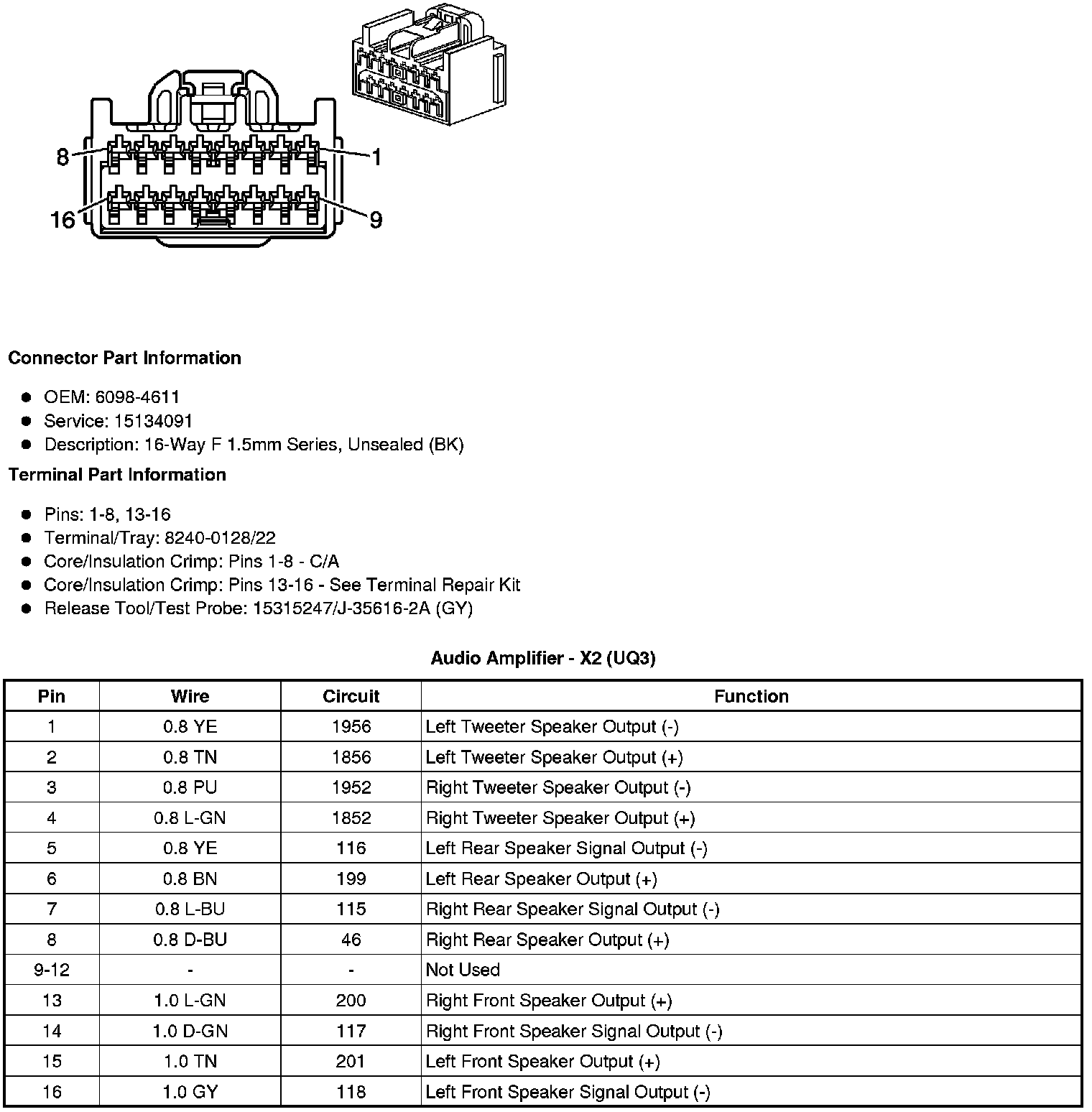

Audio Amplifier - X2 (UQ3)
Audio Amplifier - X2 (UQ3)
Component Connector End Views
Audio Amplifier - X2 (UQ3)
