Power Distribution Diagram 2 (Notchback)



Power Distribution Schematics (Notchback)

FAN LOW, FAN HI, A/C COMP, P/WINDOW Fuses

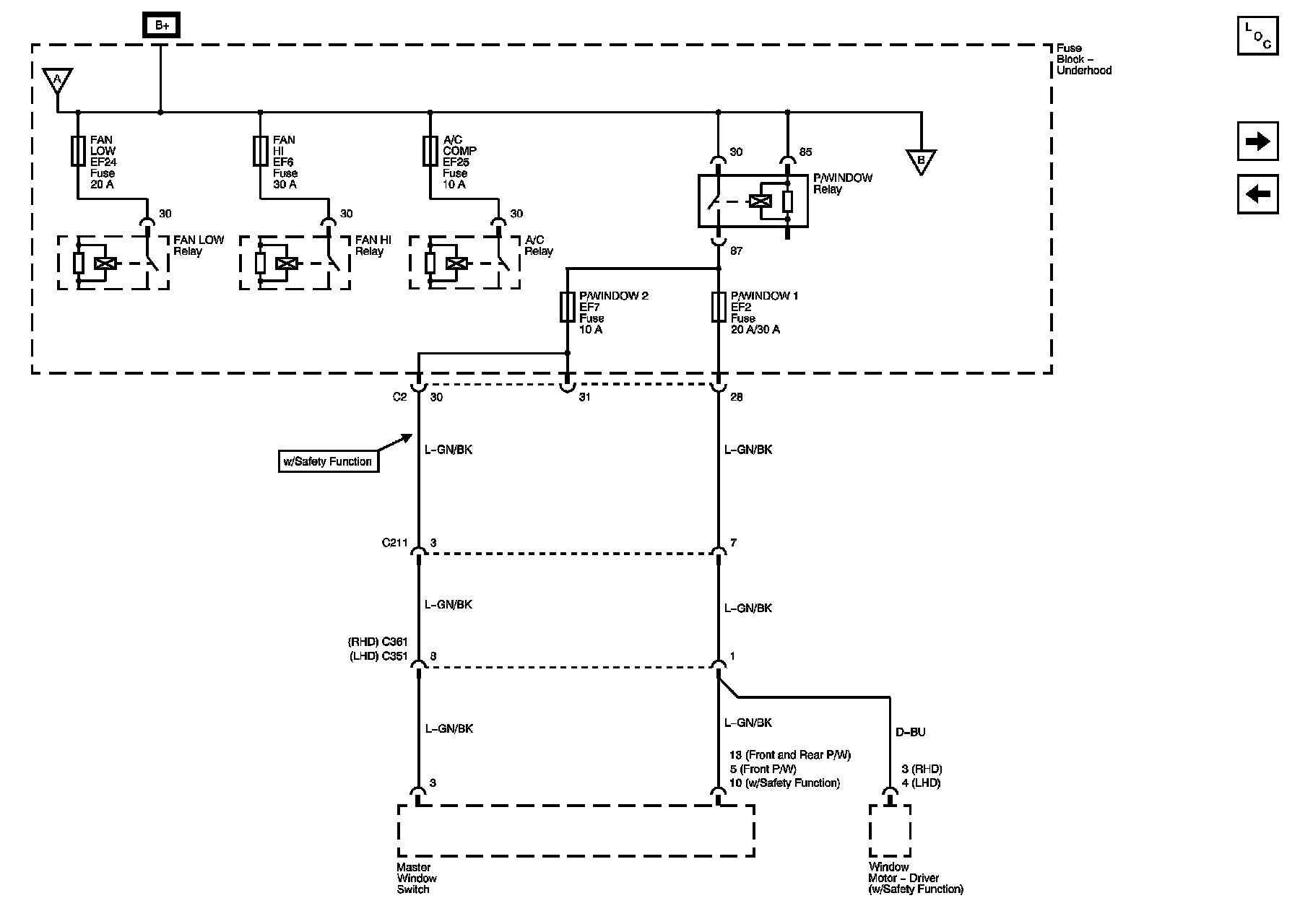

Power Distribution Diagram 2 (Notchback):
