Automatic Transmission Controls Schematics (Notchback)

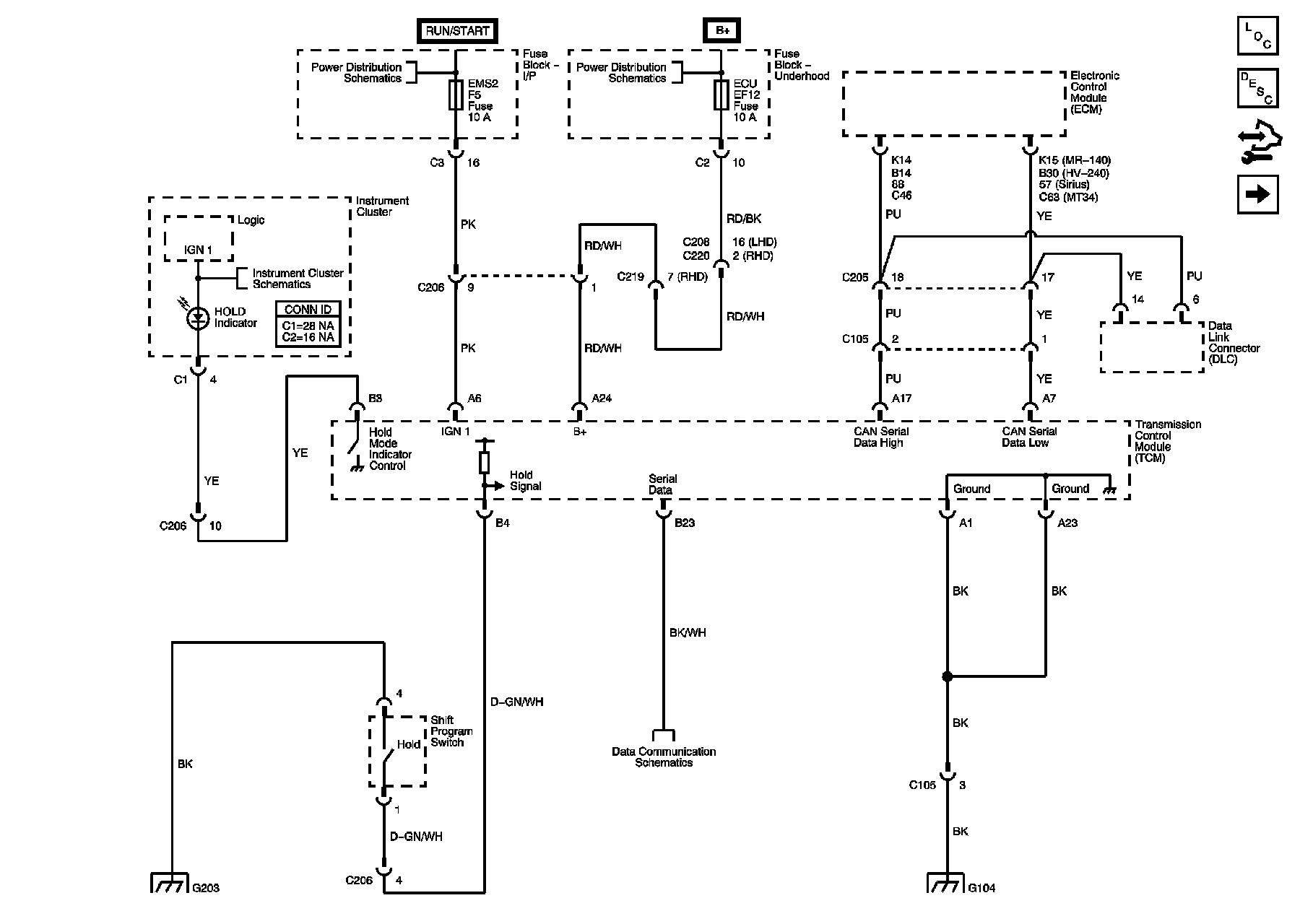

Transmission Control Module

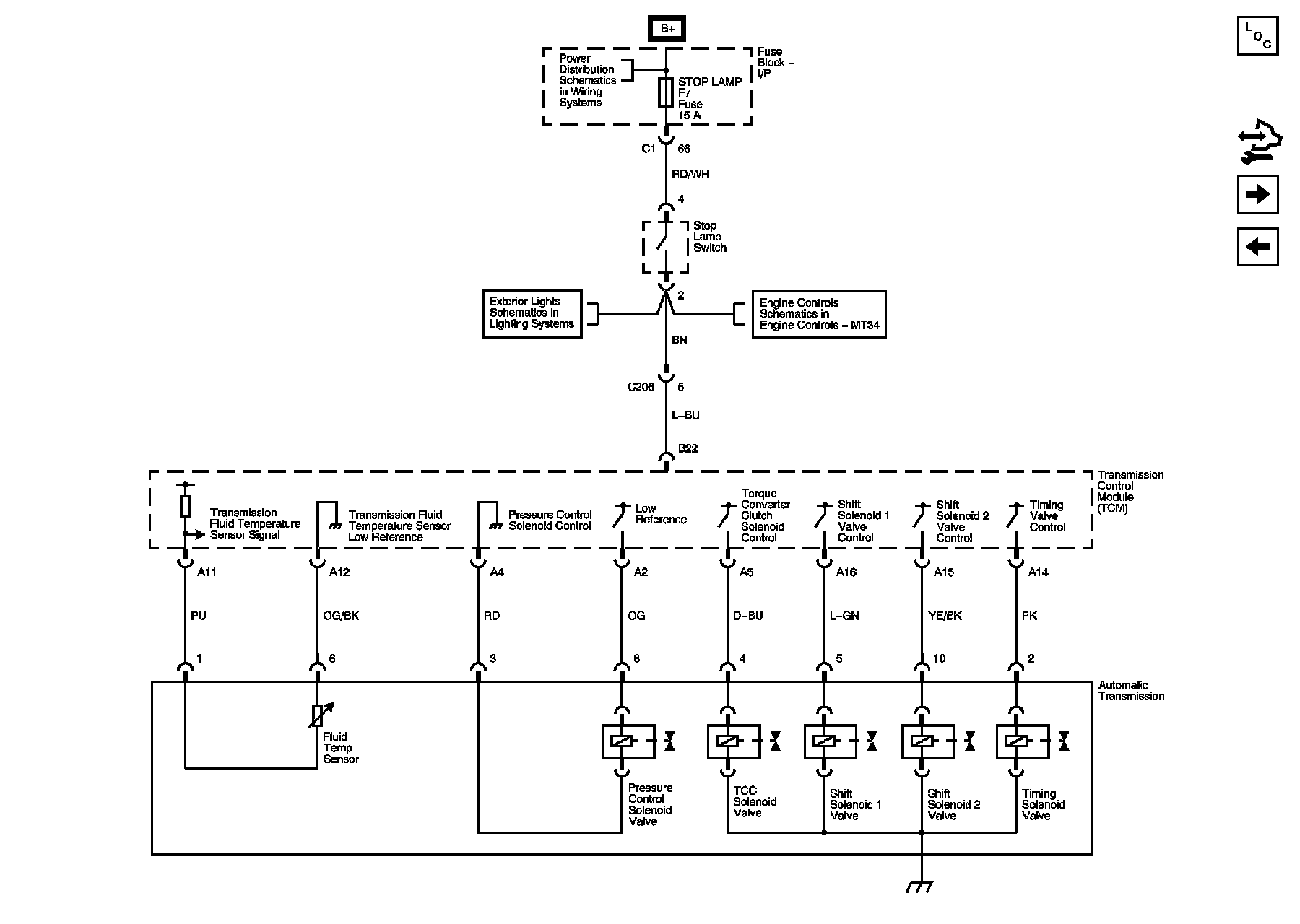

Pressure, TCC, Shift, Timing Solenoid Valves and TFT Sensor

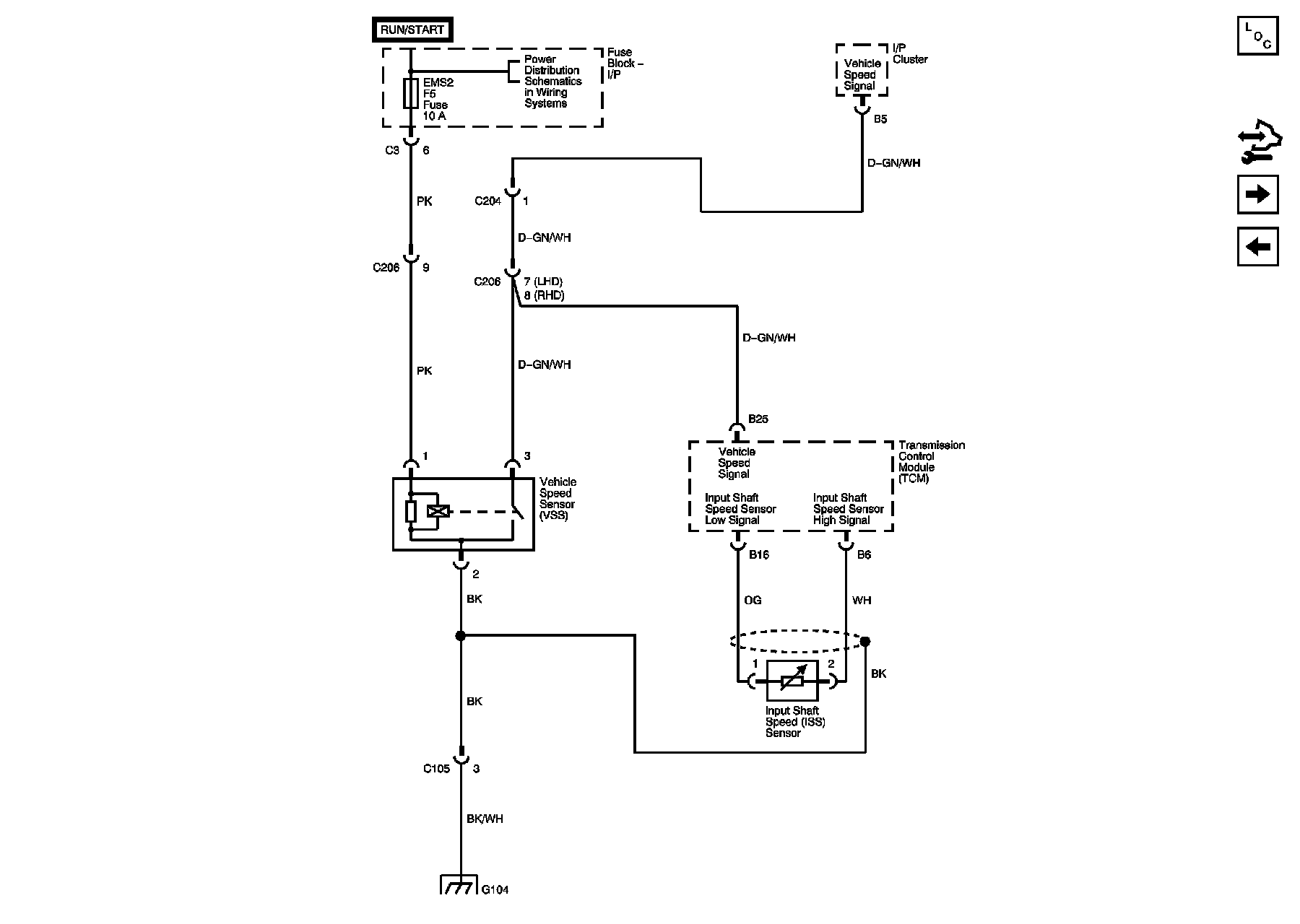

Vehicle and Input Shaft Speed Sensors

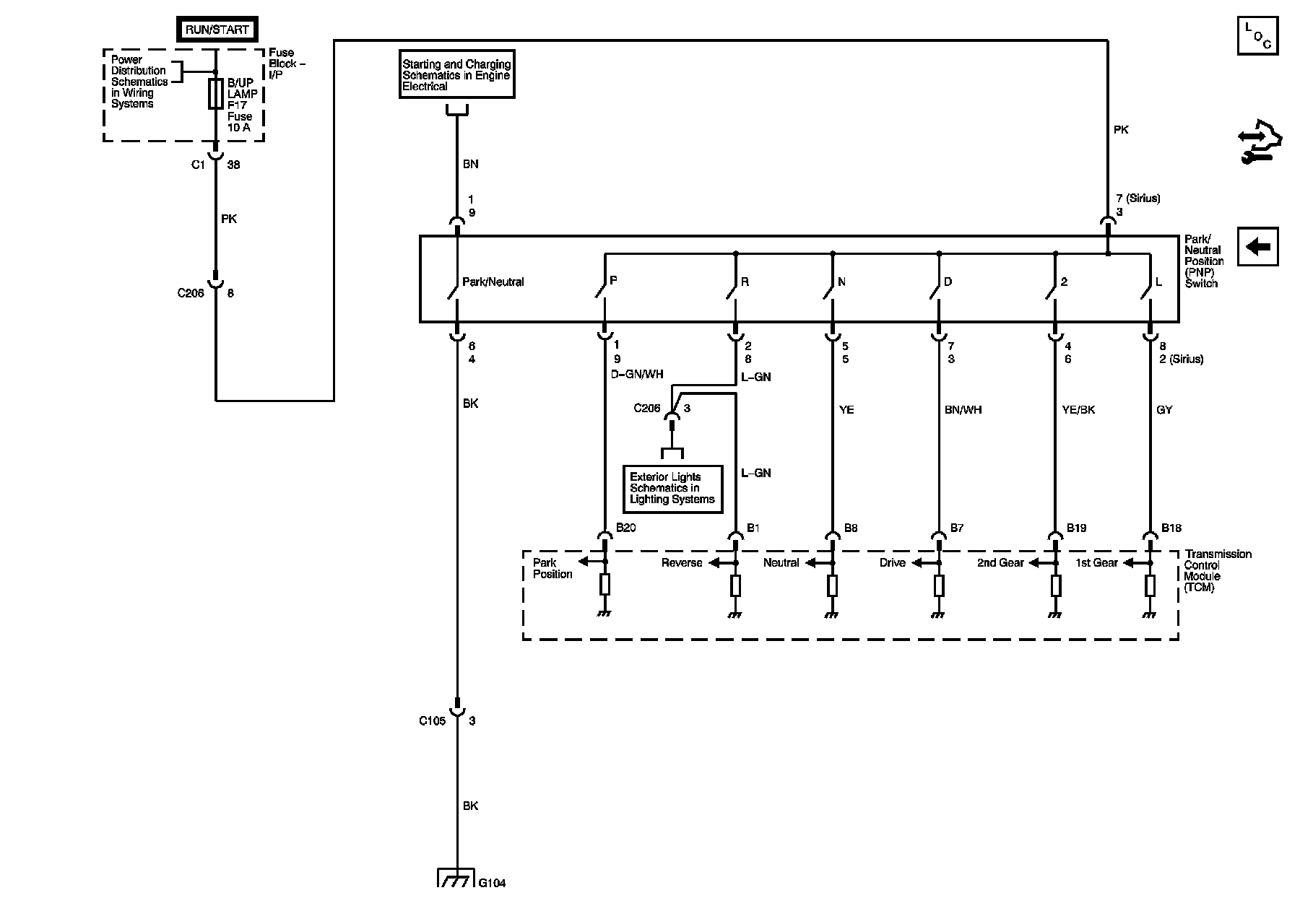

Park Neutral Position (PNP)
