Shift Lock Control Component Views (Notchback)



Shift Lock Control Component Views (Notchback)

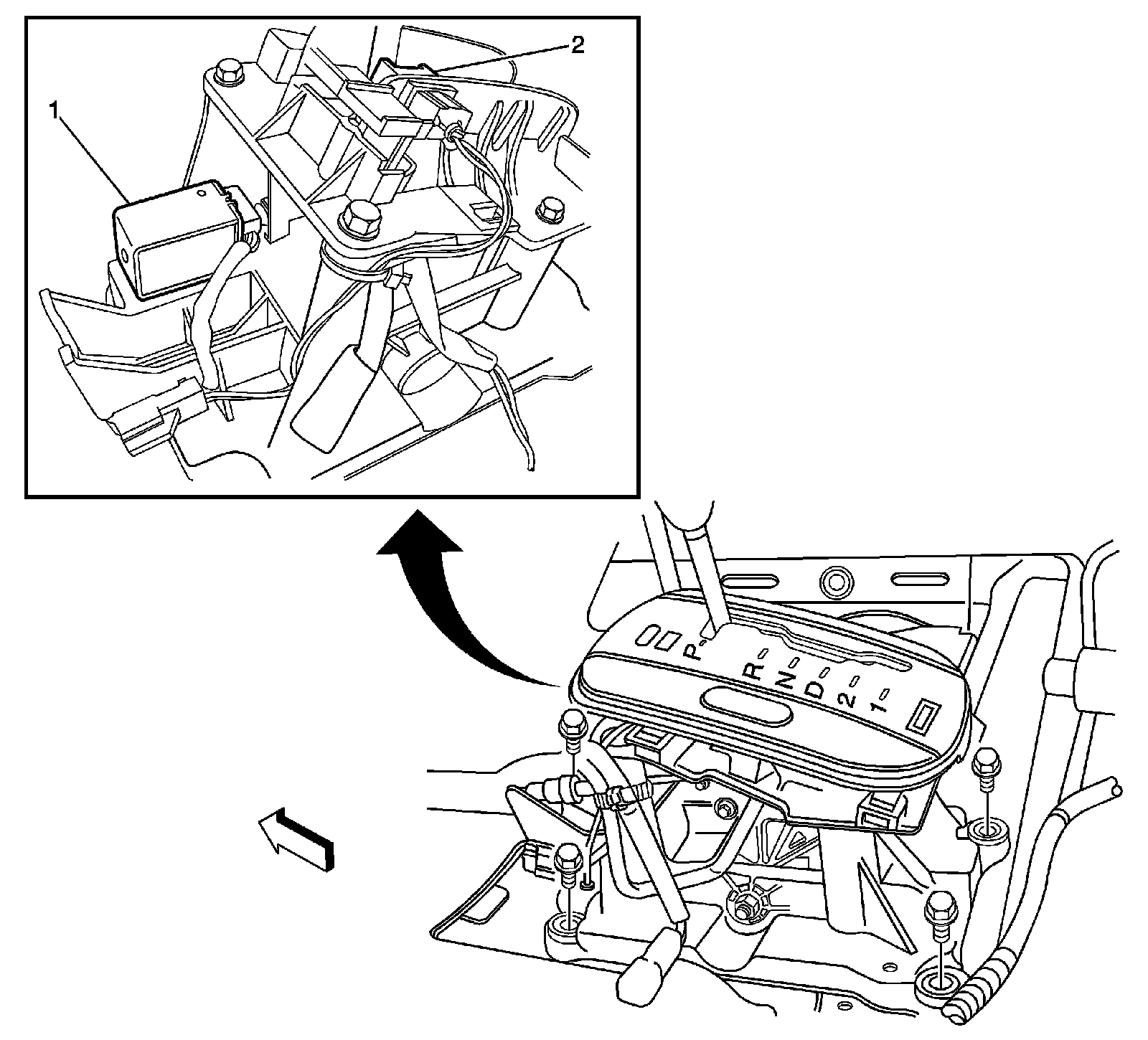

Shift Lever Assembly




1 - Automatic Transmission Shift Lock Control Solenoid
2 - Park Position Switch
