Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Powertrain Management >> Sensors and Switches - Powertrain Management >> Sensors and Switches - Computers and Control Systems >> Transmission Position Sensor/Switch >> Diagrams >> Connector End Views (Hatchback)

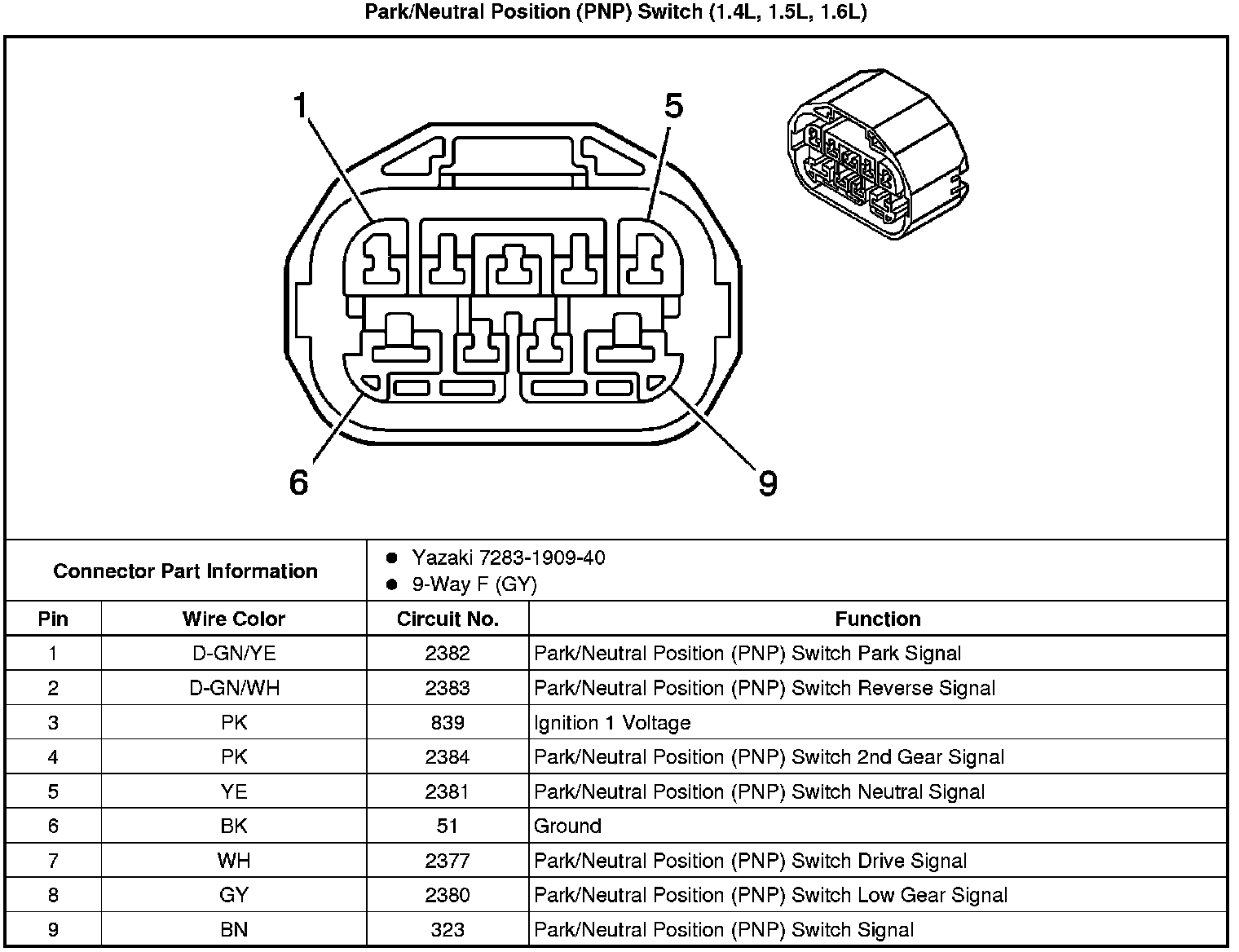

Connector End Views (Hatchback)



Connector End Views (Hatchback)
