Power Distribution Diagram 7 (Notchback)
Power Distribution Diagram 7 (Notchback)
Power Distribution Schematics (Notchback)
HORN, WIPER, DOOR LOCK, RR FOG Fuses and Relays

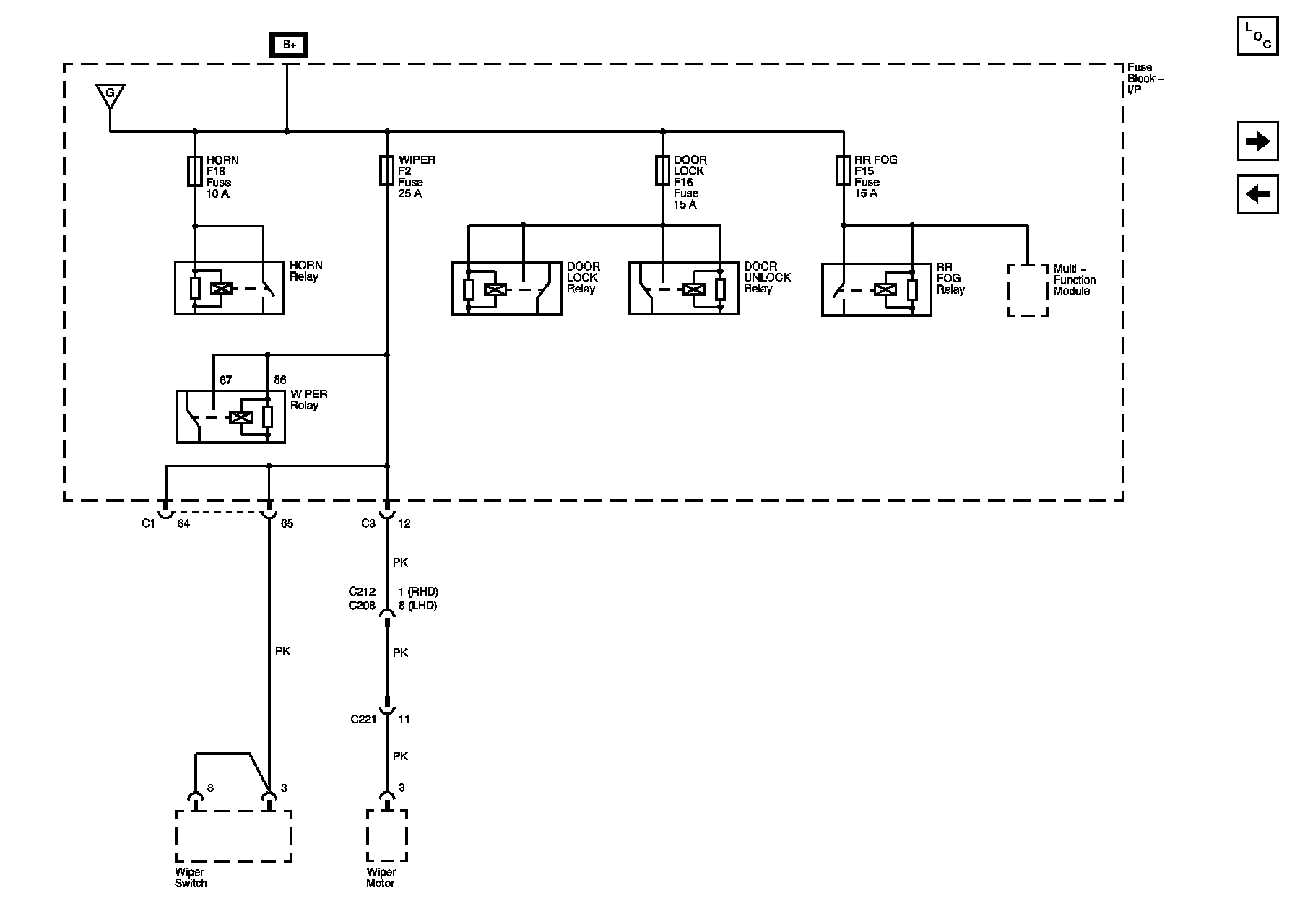

Power Distribution Diagram 7 (Notchback):
