Power Distribution Diagram 12 (Notchback)



Power Distribution Schematics (Notchback)

MAIN, FAN, A/C, Relays, EMS1, EMS2 Fuses - Sirius D42, MT34

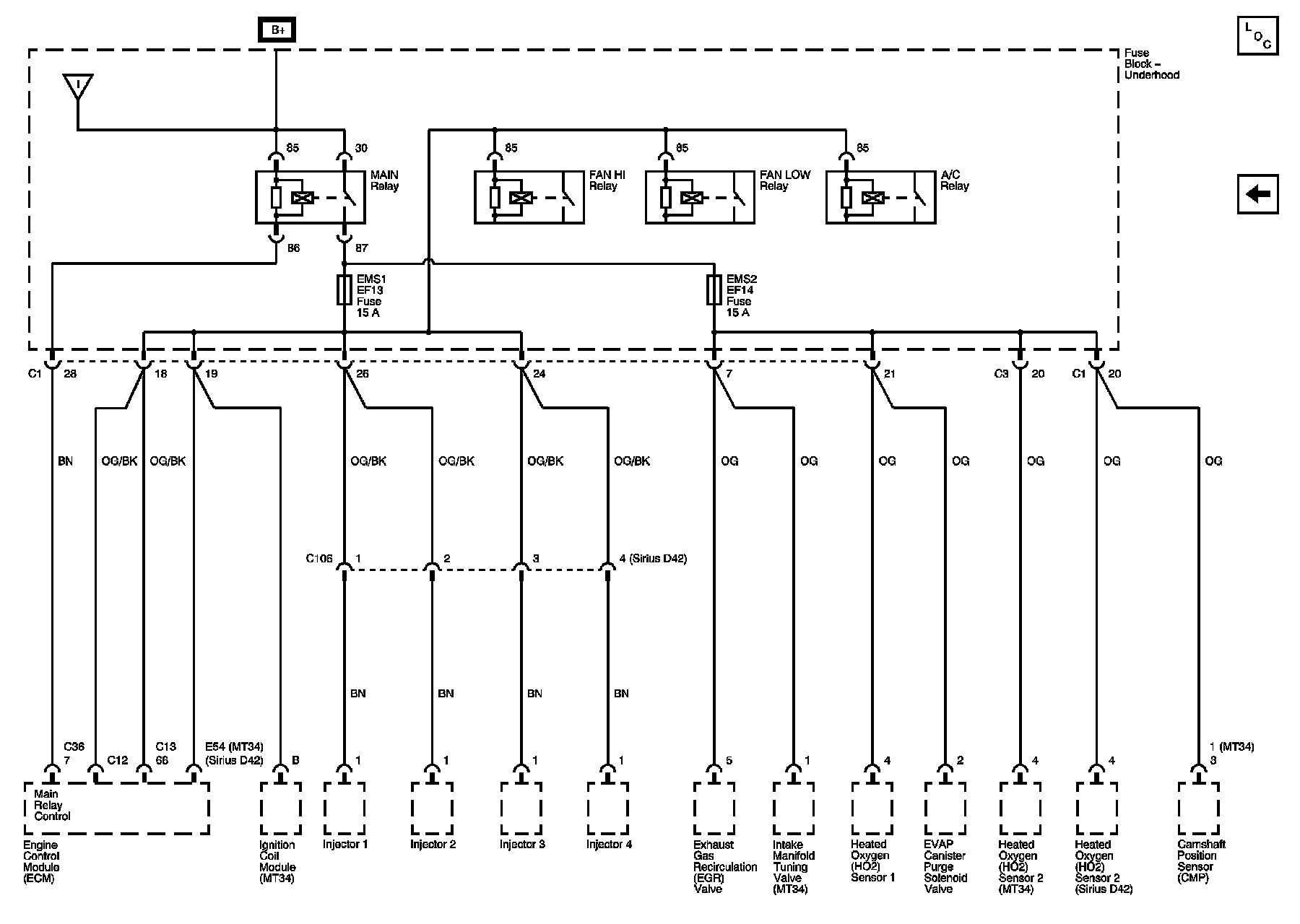

Power Distribution Diagram 12 (Notchback):
