Interior Lights Dimming Diagram 2 (Notchback)

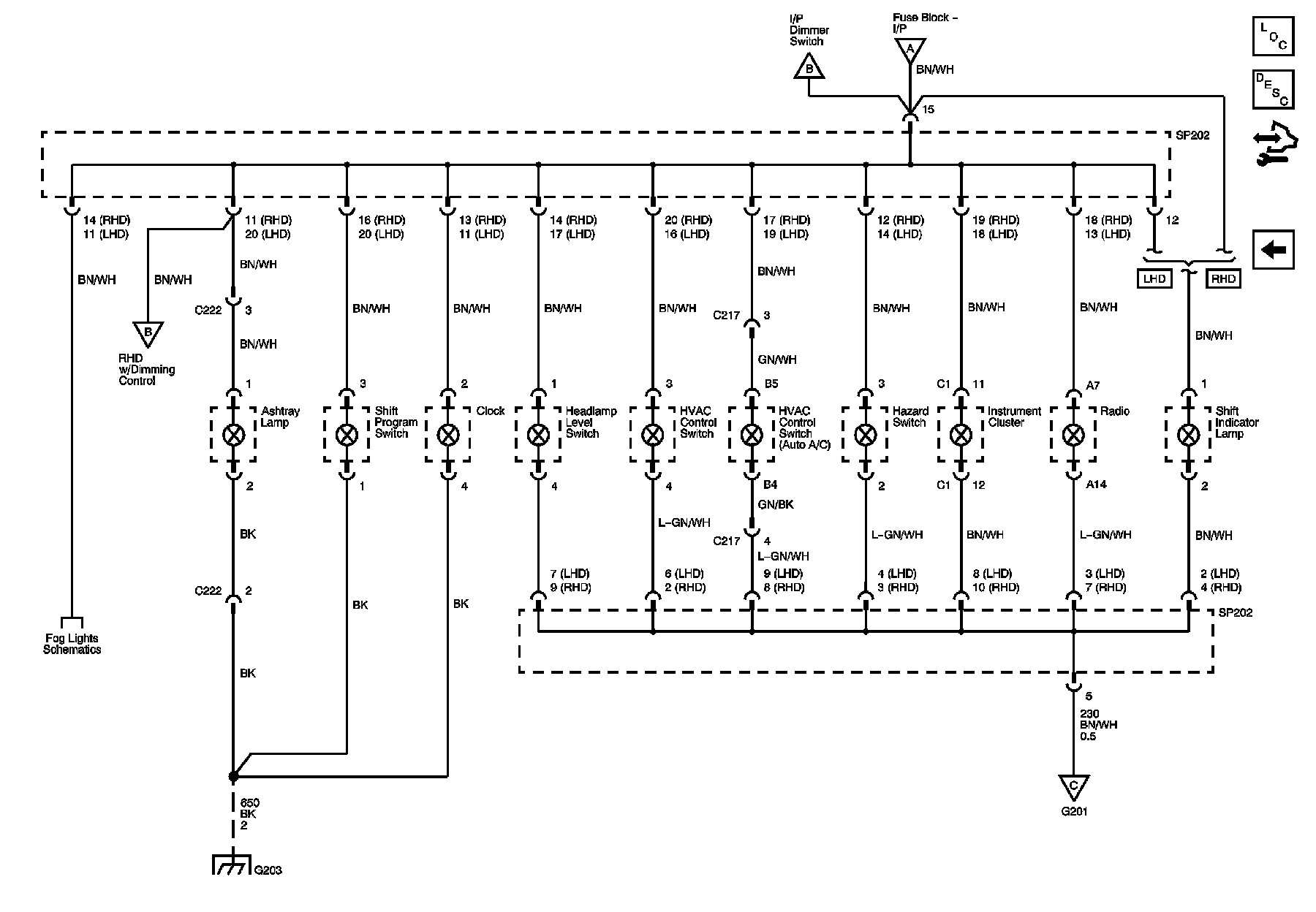

Interior Lights Dimming Schematics (Notchback)

Interior Lights Dimming (2 of 2)

Interior Lights Dimming Diagram 2 (Notchback):
