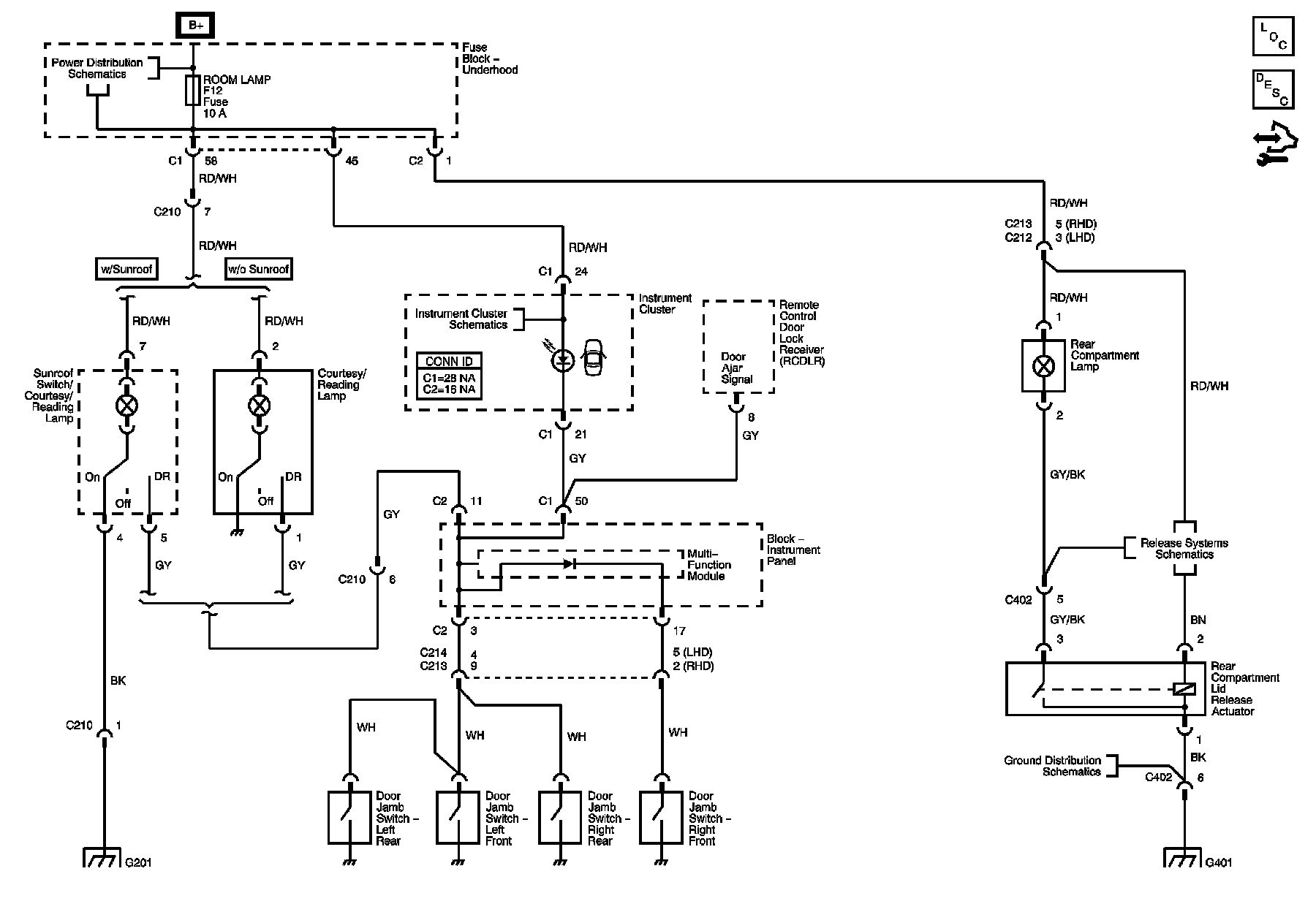

Interior Lights Diagram (Notchback)



Interior Lights Schematics (Notchback)

Interior Lights Diagram (Notchback):
