Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Headlights/Daytime Running Lights (DRL) Diagrams (Notchback) >> Headlights/Daytime Running Lights (DRL) Diagram 1 (Notchback)

Headlights/Daytime Running Lights (DRL) Diagram 1 (Notchback)



Headlights/Daytime Running Lights (DRL) Schematics (Notchback)

Oil Pressure and Head Lamp Switch

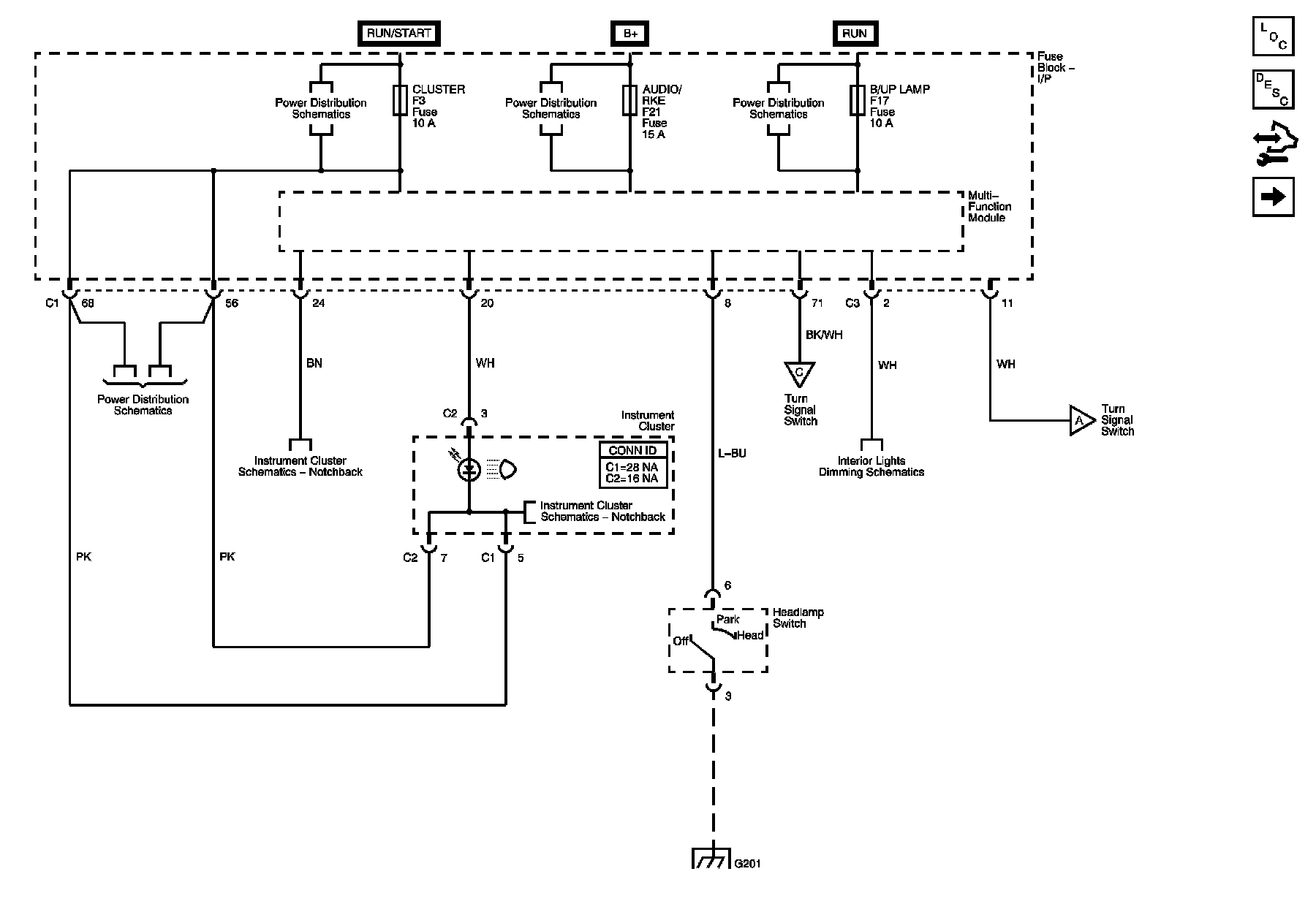

Headlights/Daytime Running Lights (DRL) Diagram 1 (Notchback):
