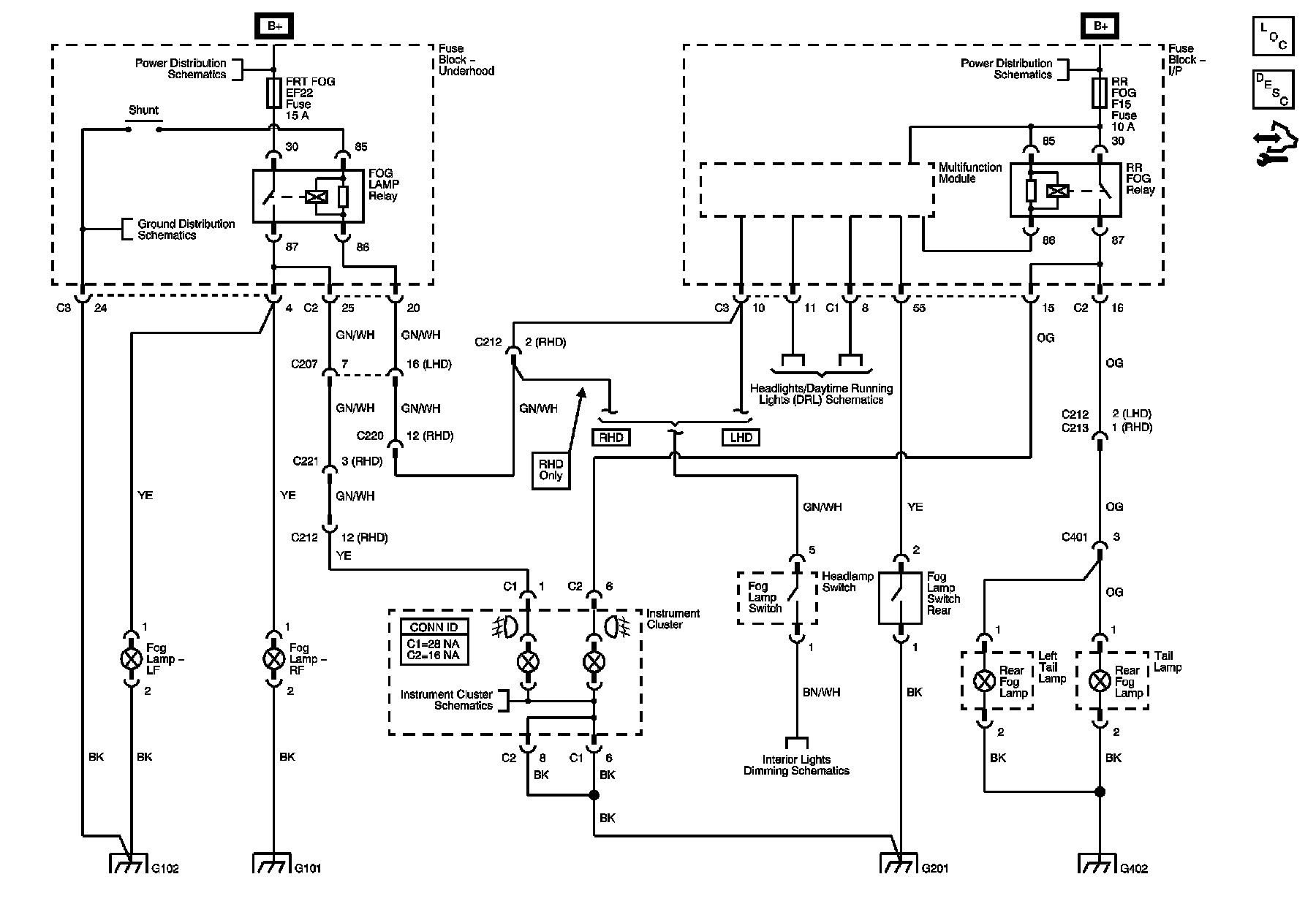

Fog Lights Diagram (Notchback)



Fog Lights Schematics (Notchback)

Fog Lights Diagram (Notchback):
