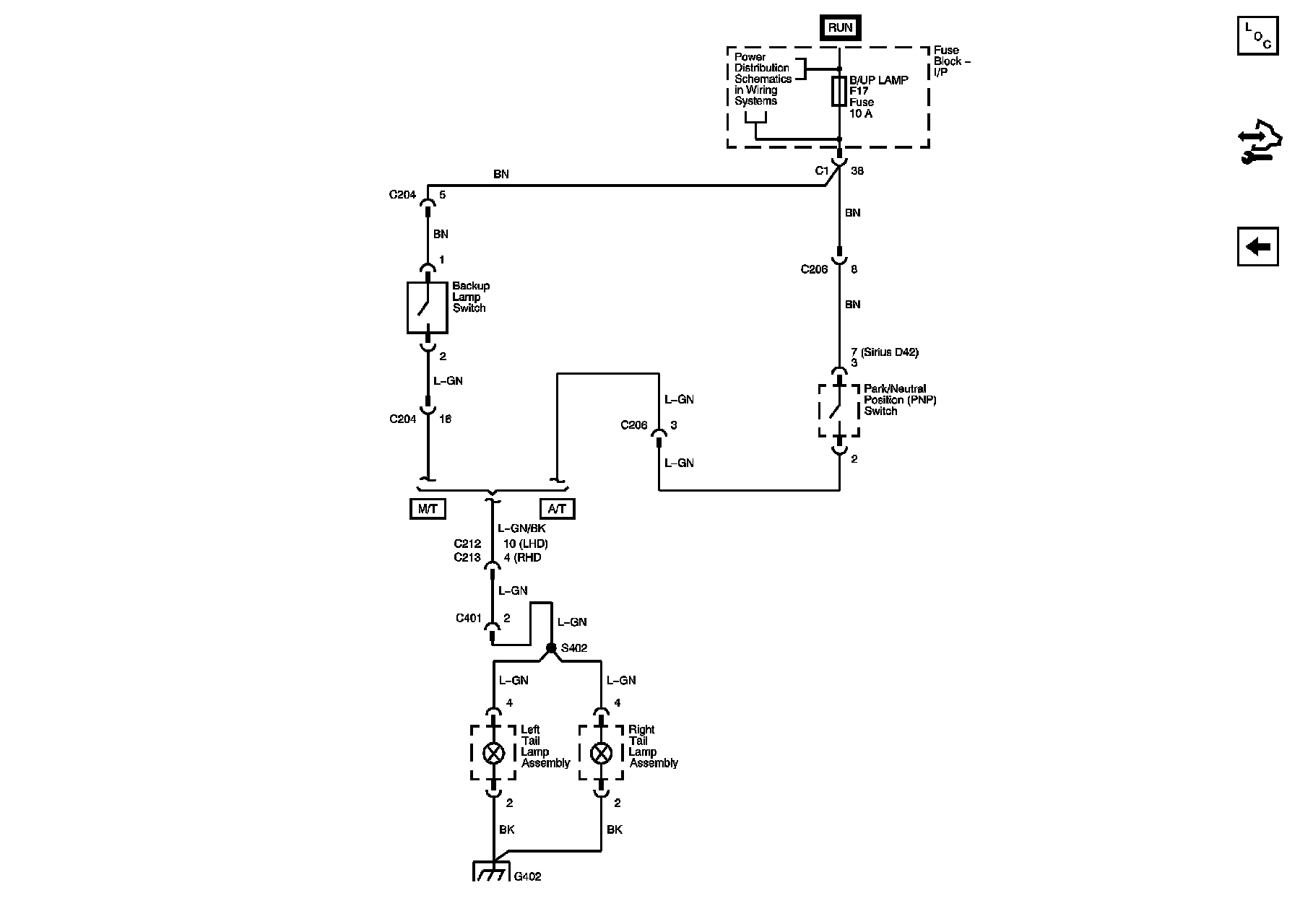

Exterior Lights Diagram 5 (Notchback)



Exterior Lights Schematics (Notchback)

Tail Lamp Assembly and Backup Lamp Switch

Exterior Lights Diagram 5 (Notchback):
