Instrument Cluster Replacement (Notchback)

Instrument Cluster Replacement (Notchback)

Removal Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.

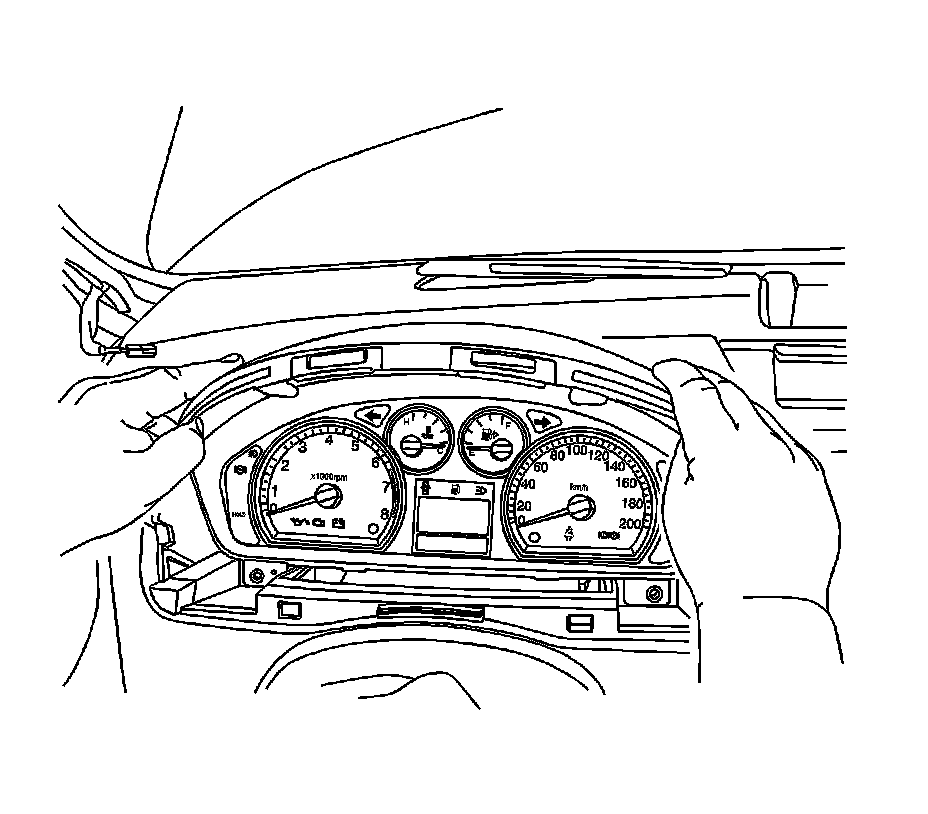

2. Remove the instrument cluster trim panel.

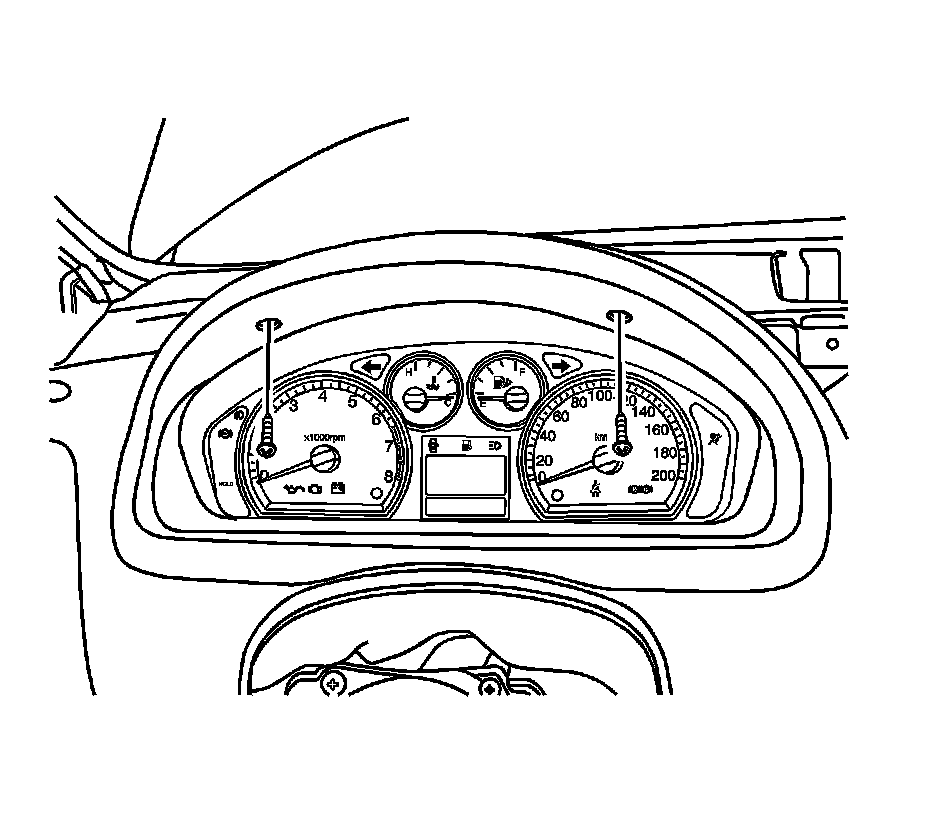

3. Remove the instrument cluster rear trim panel.

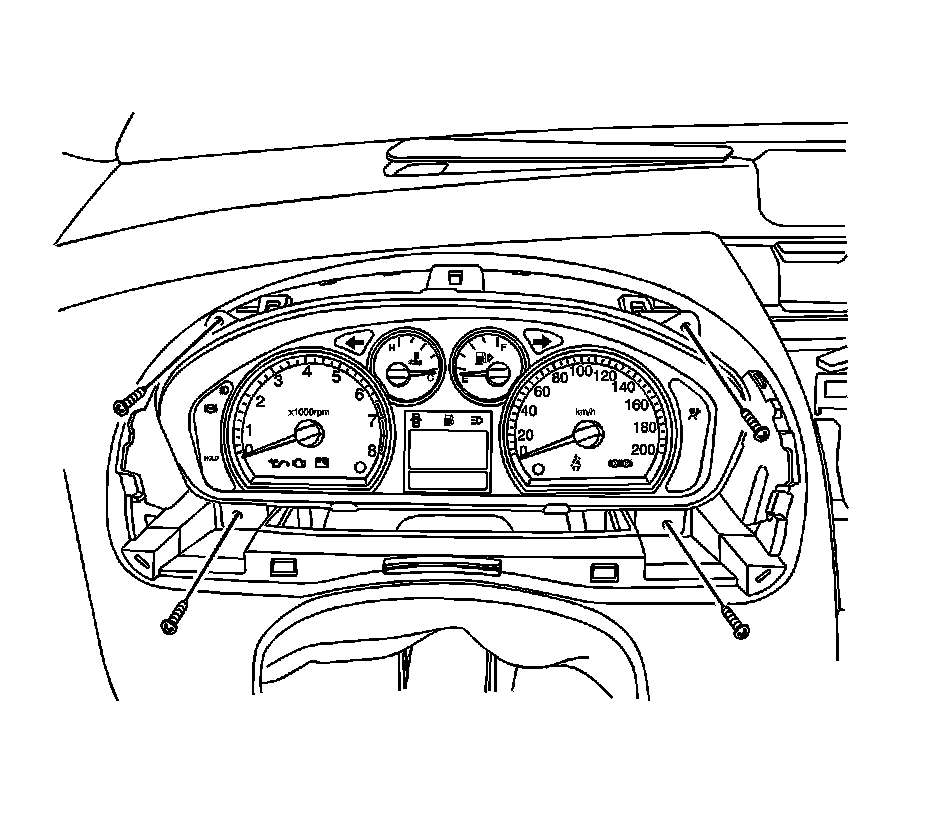

4. Remove the screws and the instrument cluster.
5. Disconnect the electrical connectors.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Connect the electrical connectors.
2. Install the instrument cluster with the screws.




3. Install the instrument cluster rear trim panel.




4. Install the instrument cluster trim panel.
5. Connect the negative battery cable.
