Air Conditioning Clutch Coil Removal (V5 Compressor)

Air Conditioning Clutch Coil Removal (V5 Compressor)

Tools Required
* J 8433-1 Puller Crossbar
* J 8433-3 Forcing Screw
* J 33023-A Puller Pilot
* J 33025 Clutch Coil Puller Legs


Disassembly Procedure




Caution: Refer to Battery Disconnect Caution (Battery Disconnect Caution).
1. Disconnect the negative battery cable.
2. Recover the refrigerant. Refer to Refrigerant Recovery and Recharging (Service and Repair).
3. Remove the compressor. Refer to Compressor Replacement (Service and Repair).
4. Remove the clutch plate and hub assembly. Refer to Compressor Clutch Plate and Hub Assembly Removal (V5 Compressor) (Compressor Clutch Plate and Hub Assembly Removal (V5 Compressor)).
5. Remove the clutch rotor and bearing. Refer to Clutch Rotor and/or Bearing Removal (V5 Compressor) (Clutch Rotor and/or Bearing Removal (V5 Compressor)).
6. Mark the clutch coil terminal location on the compressor housing.

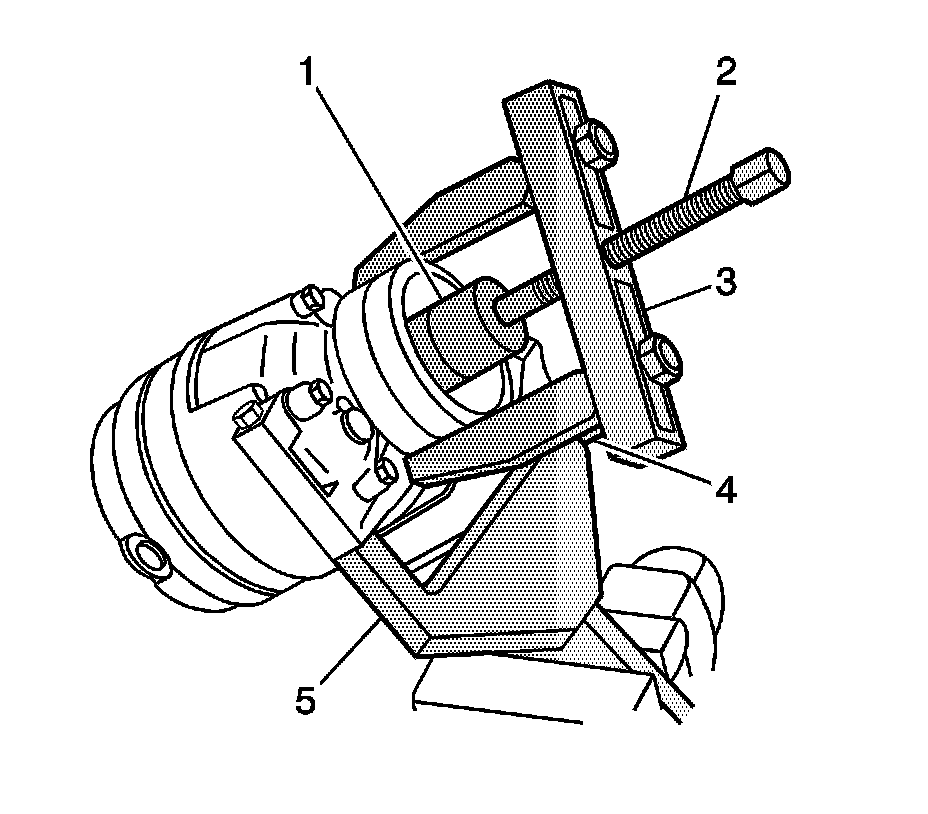

7. Install the J 33023-A (1) on the compressor housing. Also install the J 8433-1 (3) with the J 33025 (4).
8. Tighten the J 8433-3 (2) against the J 33023-A (1) to remove the clutch coil.
