Engine Cooling Diagrams (Notchback)



Engine Cooling Schematics (Notchback)

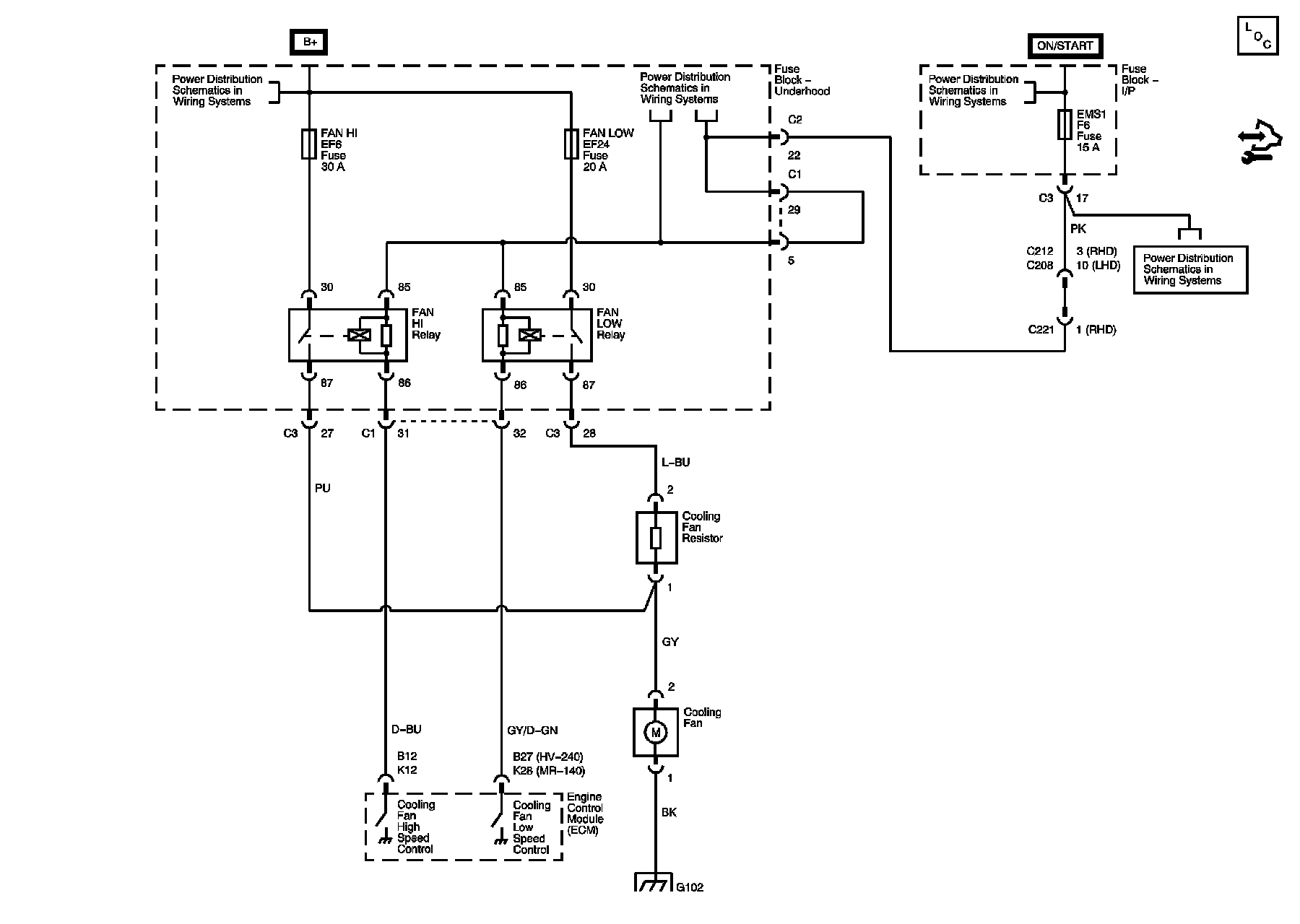

MR140, HV240

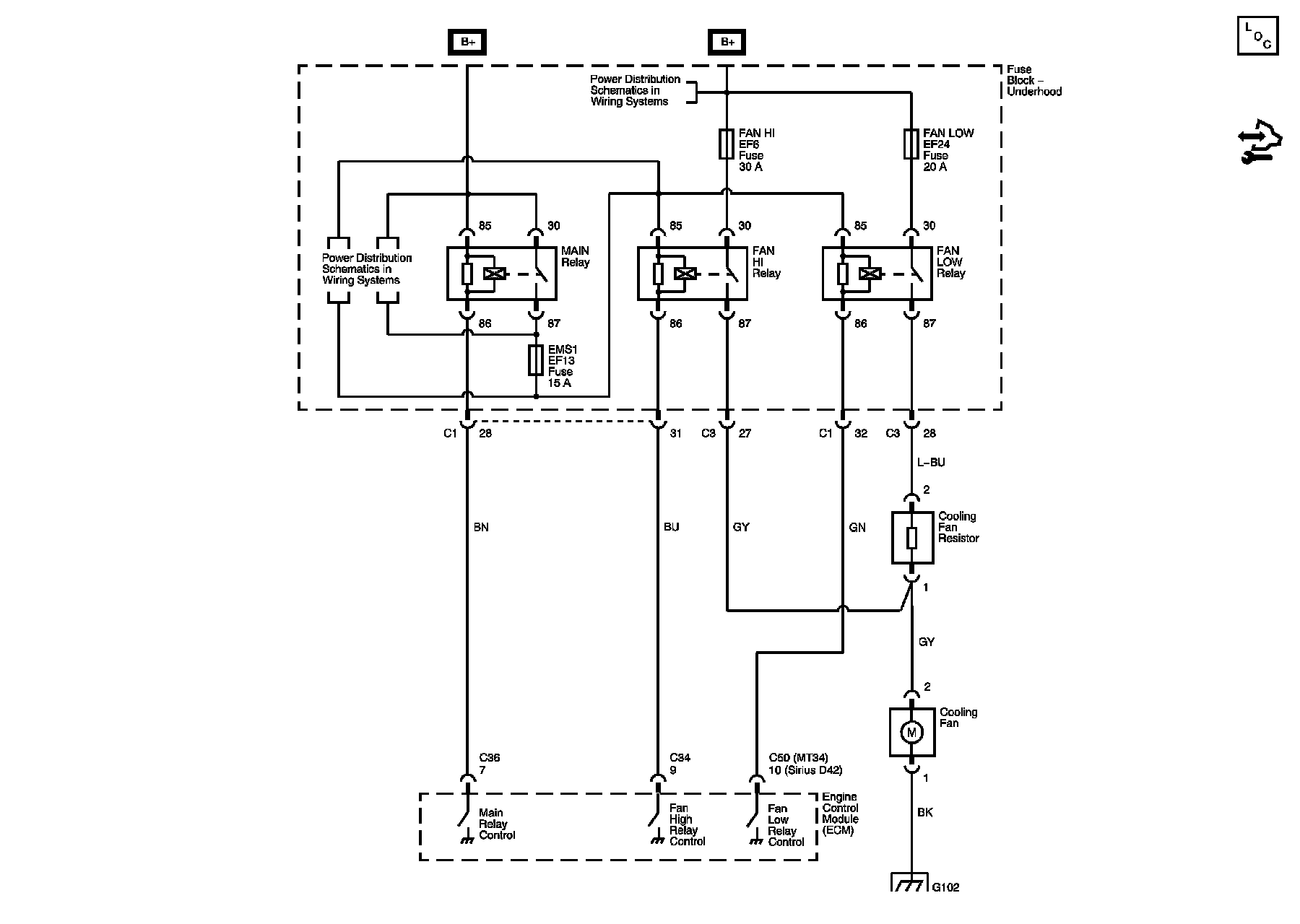

MT34, Sirius D42
