Moveable Window Diagrams (Hatchback)



Moveable Window Schematics (Hatchback)

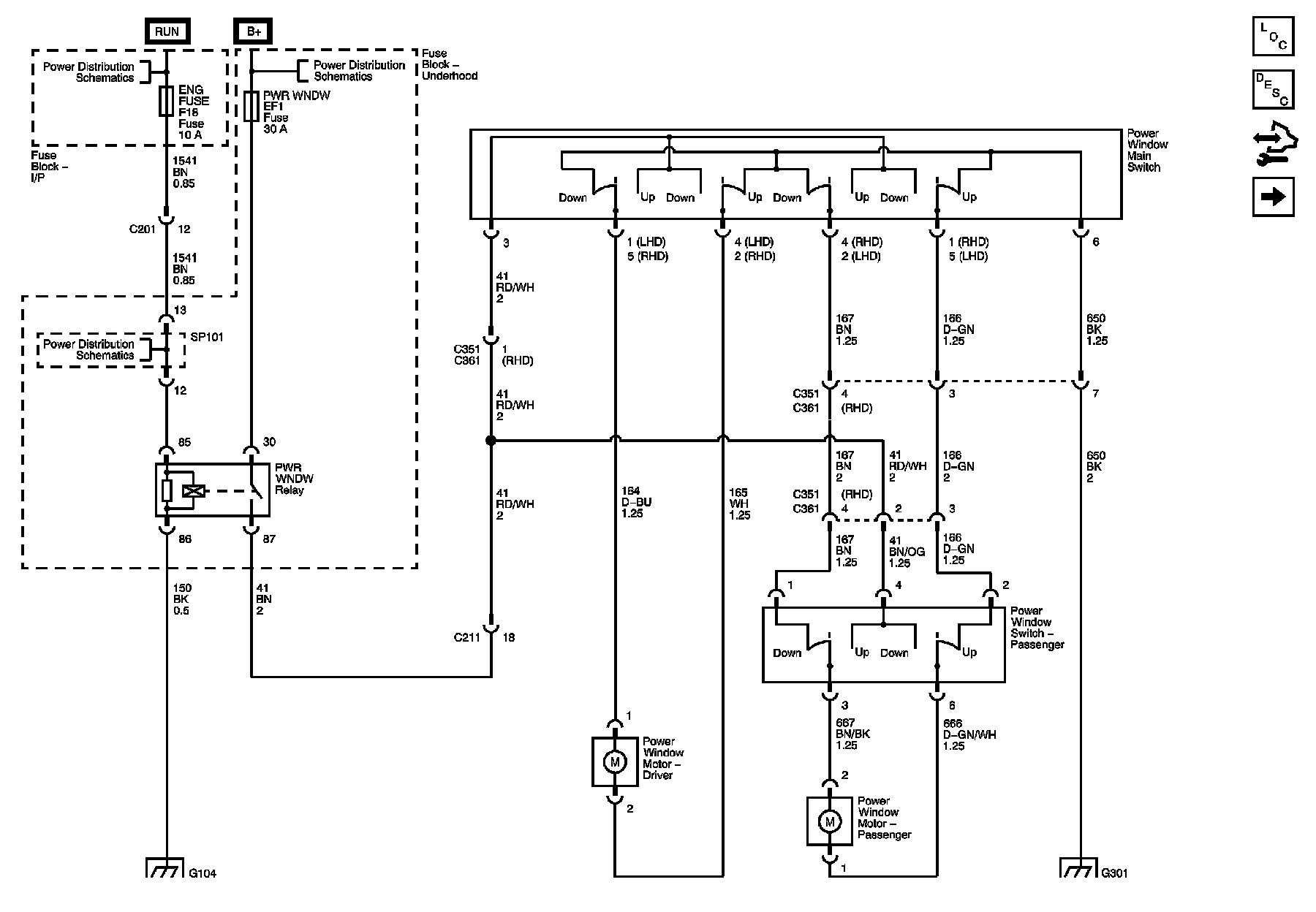

Front Windows Only

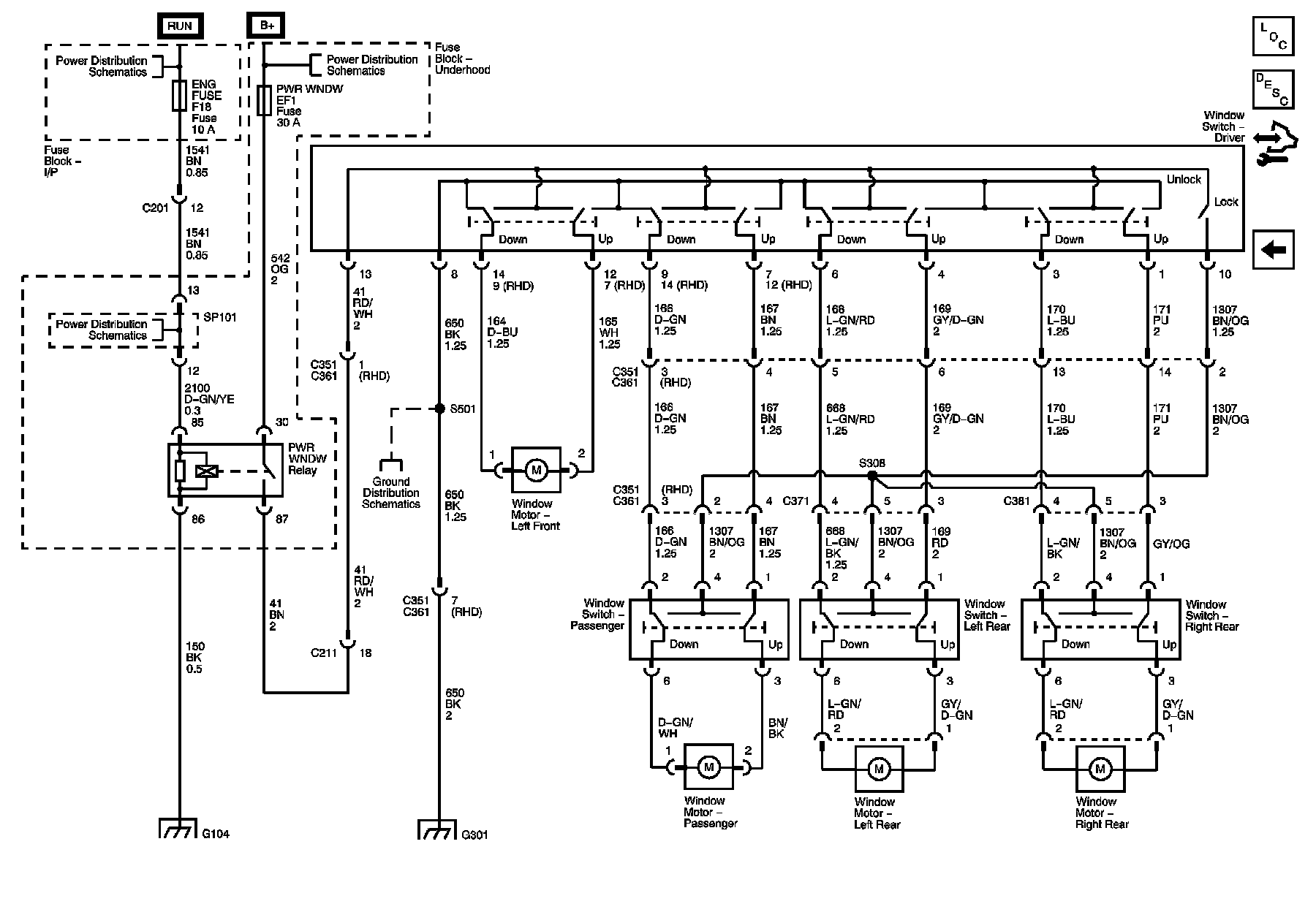

4 Windows
