Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting and Charging >> Power and Ground Distribution >> System Diagram >> Power Distribution Diagrams (Hatchback) >> Power Distribution Diagram 11 (Hatchback)

Power Distribution Diagram 11 (Hatchback)



Power Distribution Schematics (Hatchback)

Fuse Block - I/P 18 Fuse

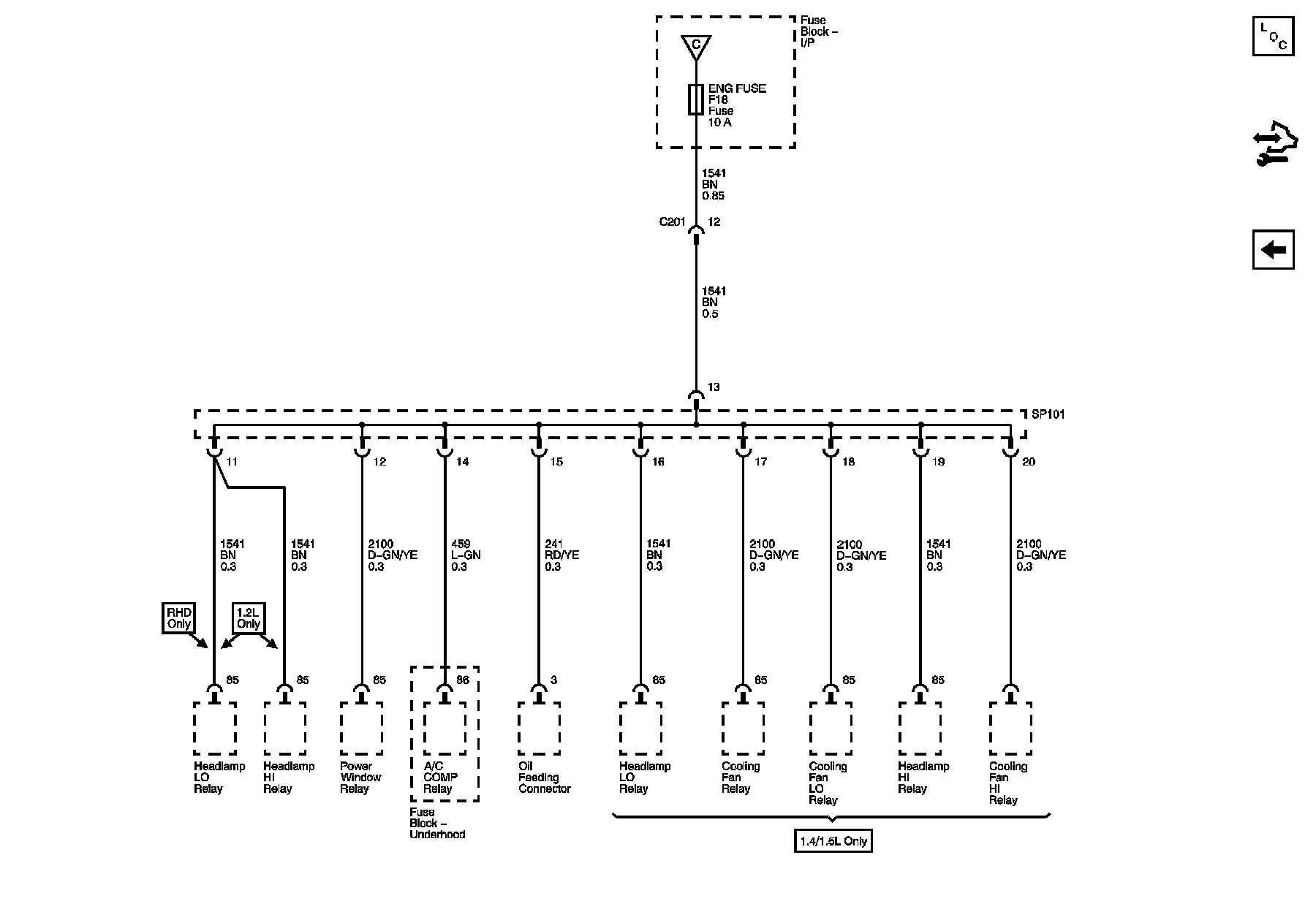

Power Distribution Diagram 11 (Hatchback):
