Ignition Lock Diagrams (Hatchback)



Ignition Lock Schematics (Hatchback)

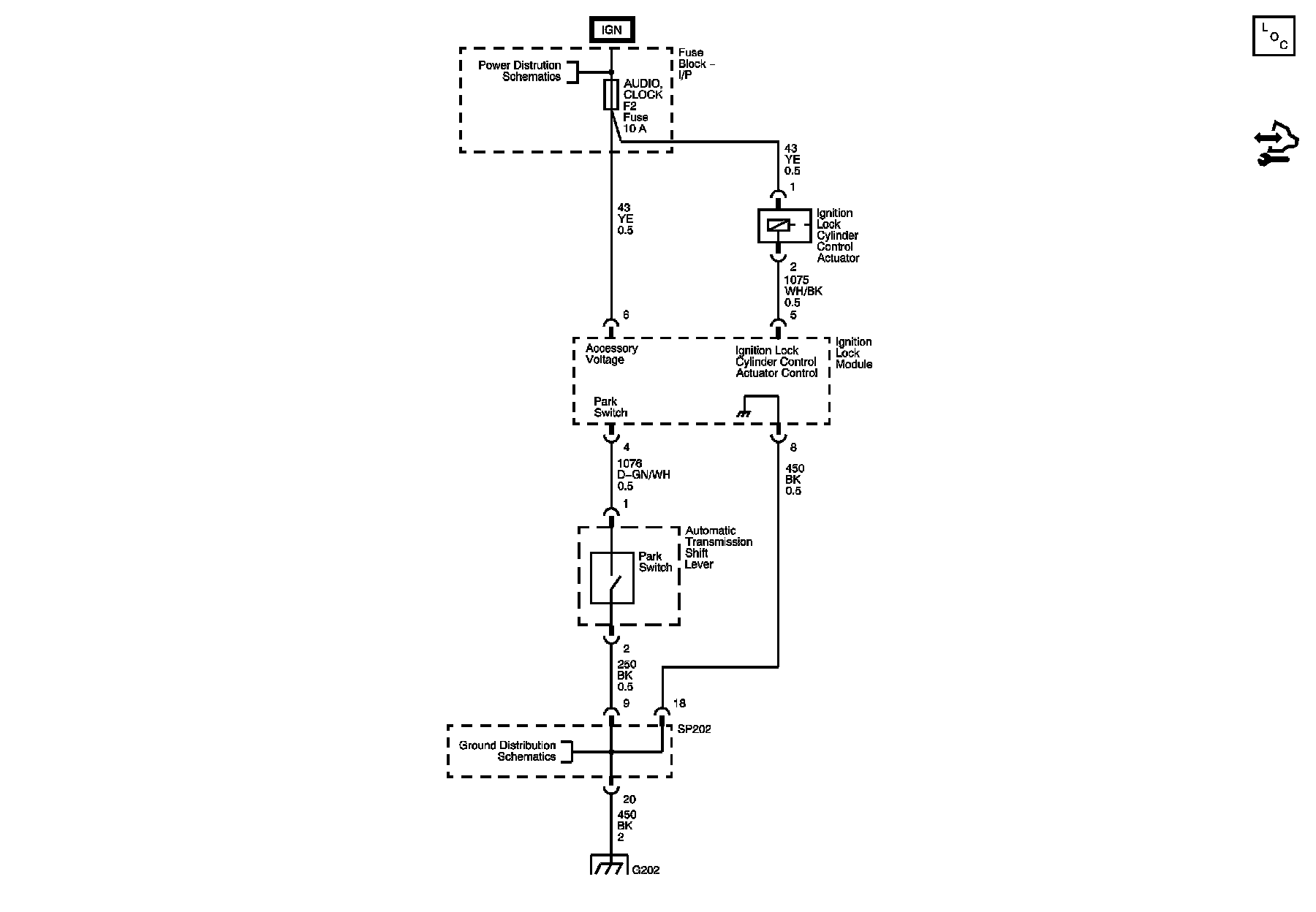

Ignition Lock Diagram (Hatchback):
