Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Lighting and Horns >> System Diagram >> Interior Lights Dimming Diagrams (Hatchback) >> Interior Lights Dimming Diagram 2 (Hatchback)

Interior Lights Dimming Diagram 2 (Hatchback)



Interior Lights Dimming Schematics (Hatchback)

w/o Dimmer

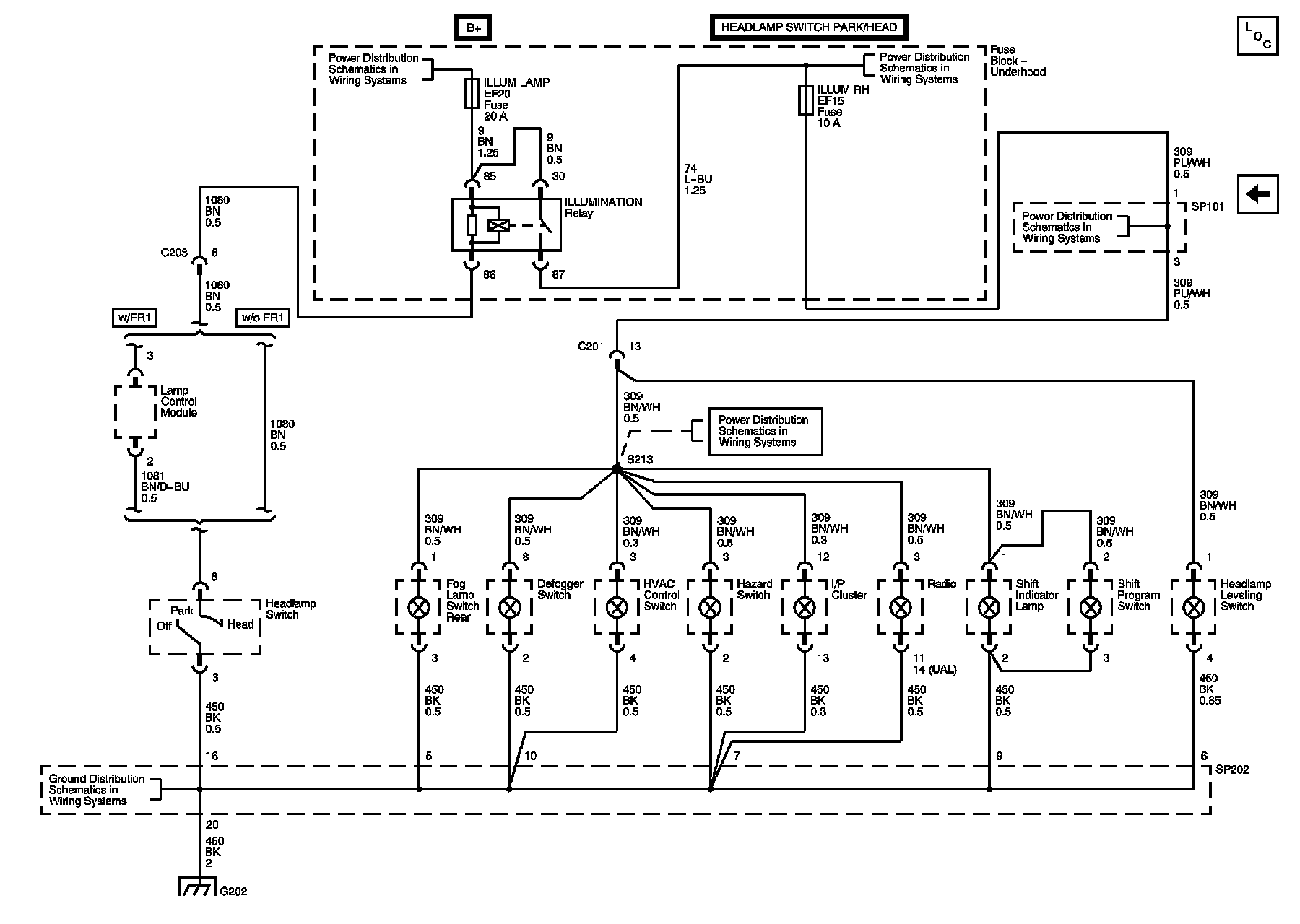

Interior Lights Dimming Diagram 2 (Hatchback):
