Headlights/Daytime Running Lights (DRL) Diagram 2 (Notchback)



Headlights/Daytime Running Lights (DRL) Schematics (Notchback)

Headlamps and Turn Signal Switch

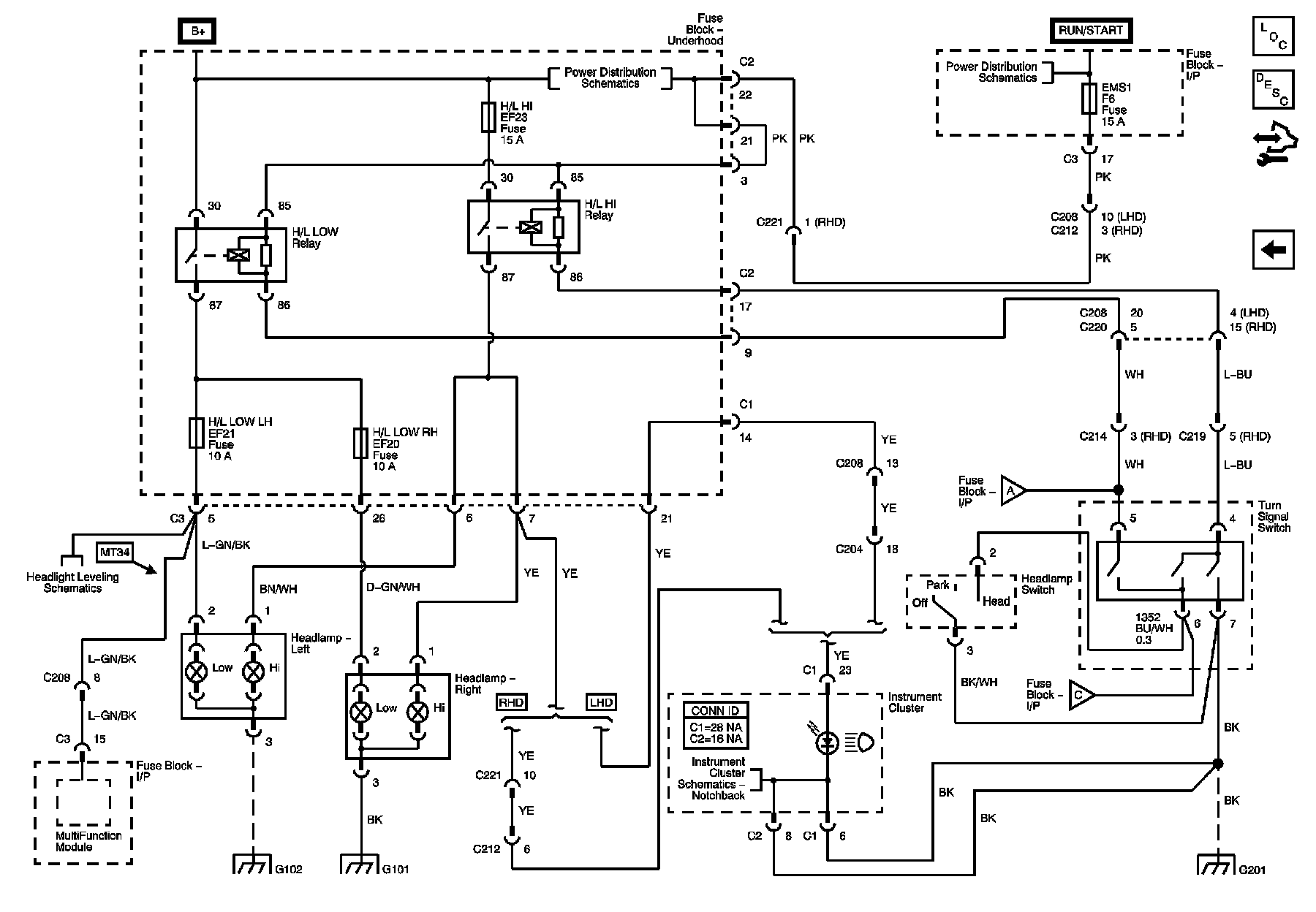

Headlights/Daytime Running Lights (DRL) Diagram 2 (Notchback):
