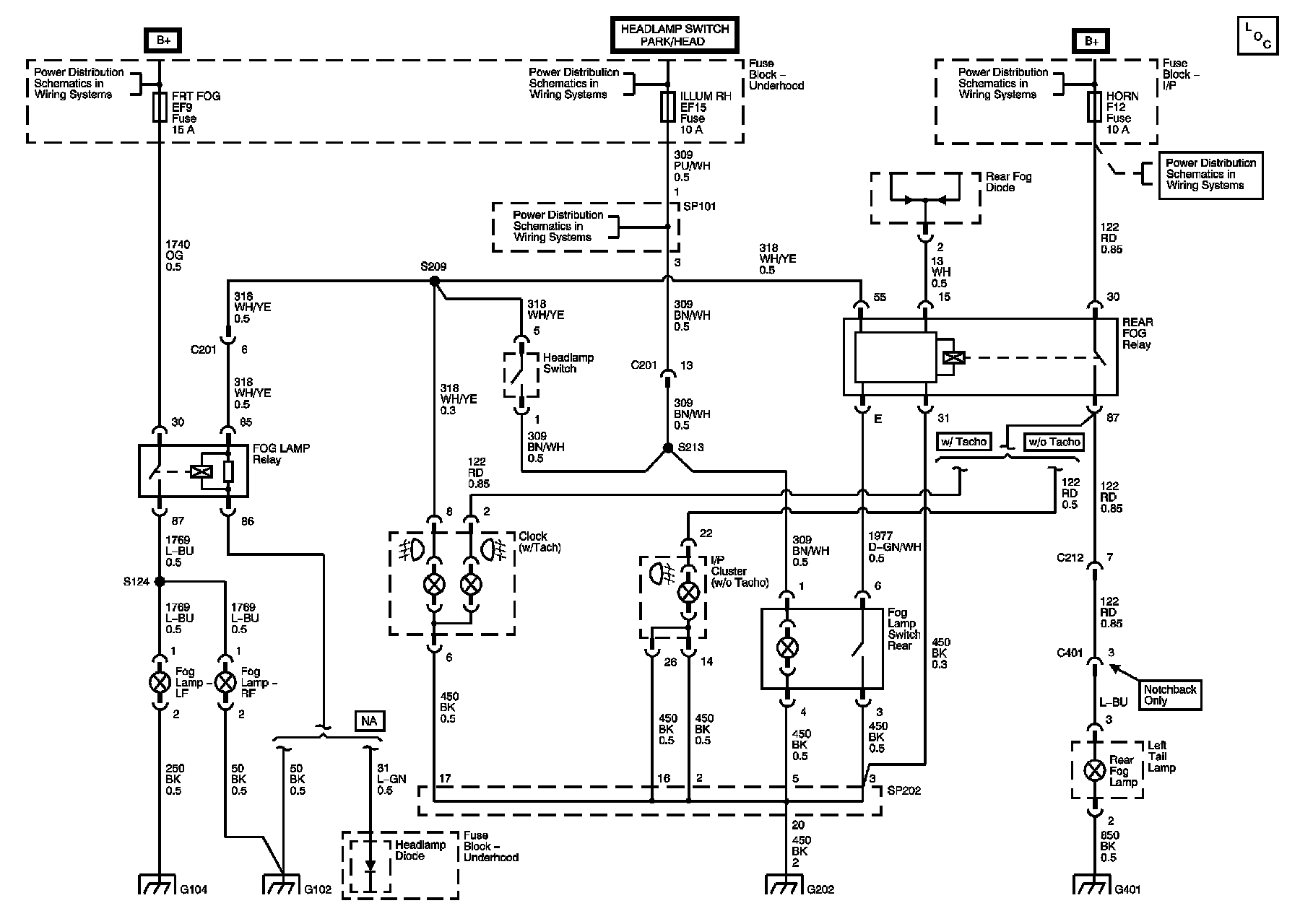

Fog Lights Diagram (Hatchback)



Fog Lights Schematics (Hatchback)

Fog Lights Diagram (Hatchback):
