Exterior Lights Diagram 4 (Hatchback)



Exterior Lights Schematics (Hatchback)

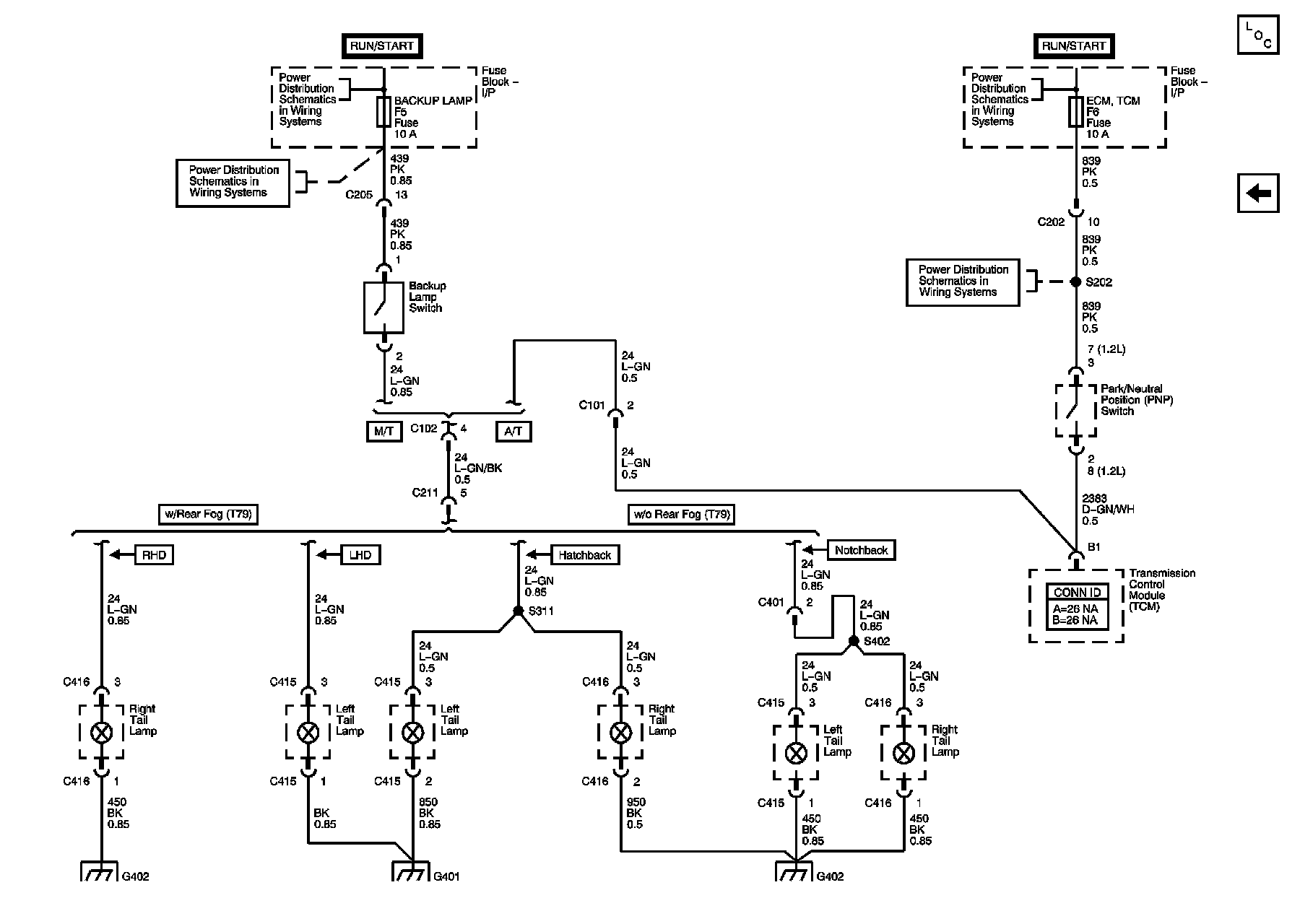

Backup Lamps

Exterior Lights Diagram 4 (Hatchback):
