Instrument Cluster Diagrams (Notchback)



Instrument Cluster Schematics (Notchback)

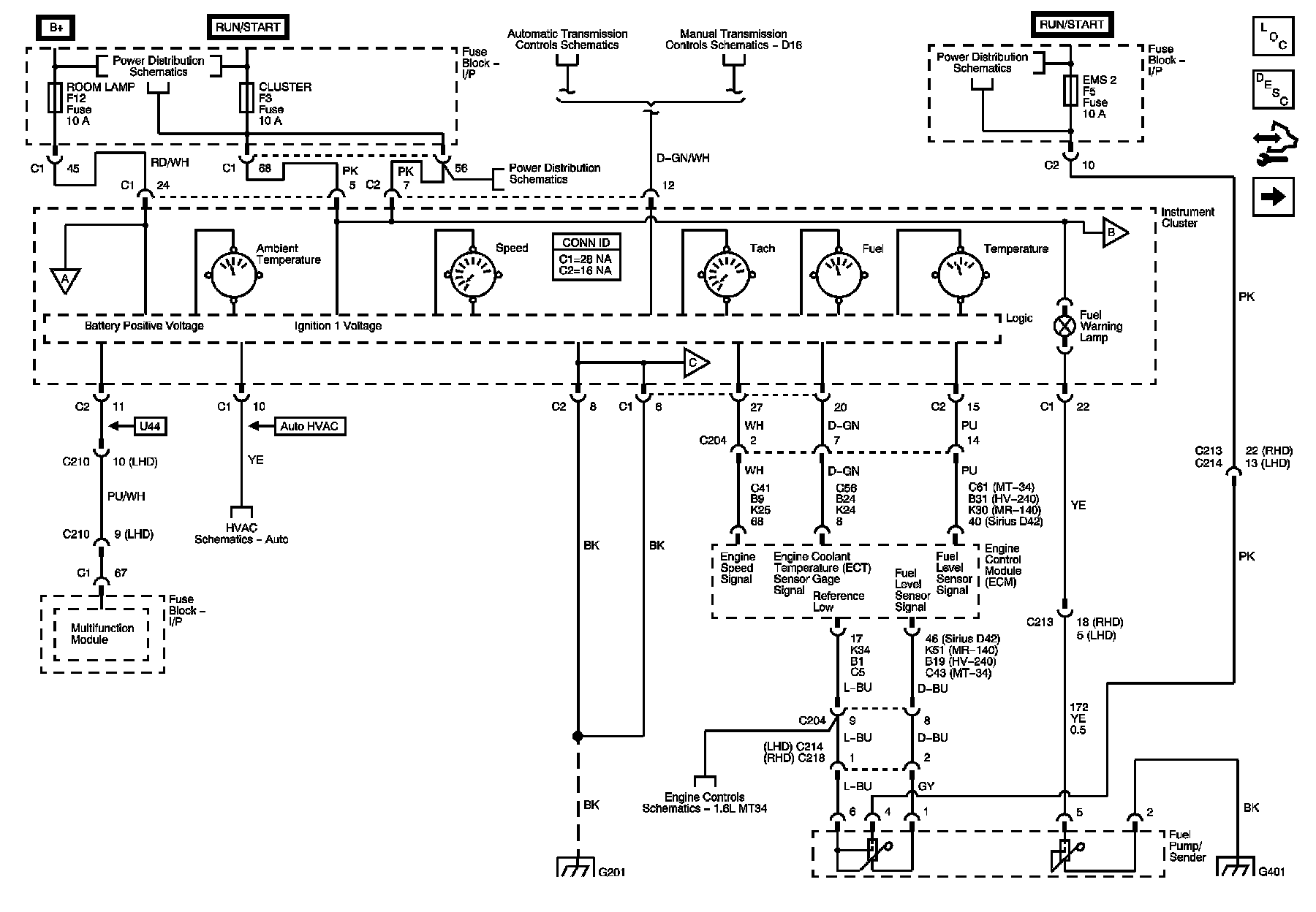

Instrument Cluster Power and Ground, Ambient Temperature, Engine Temperature, Fuel, Speed Gages

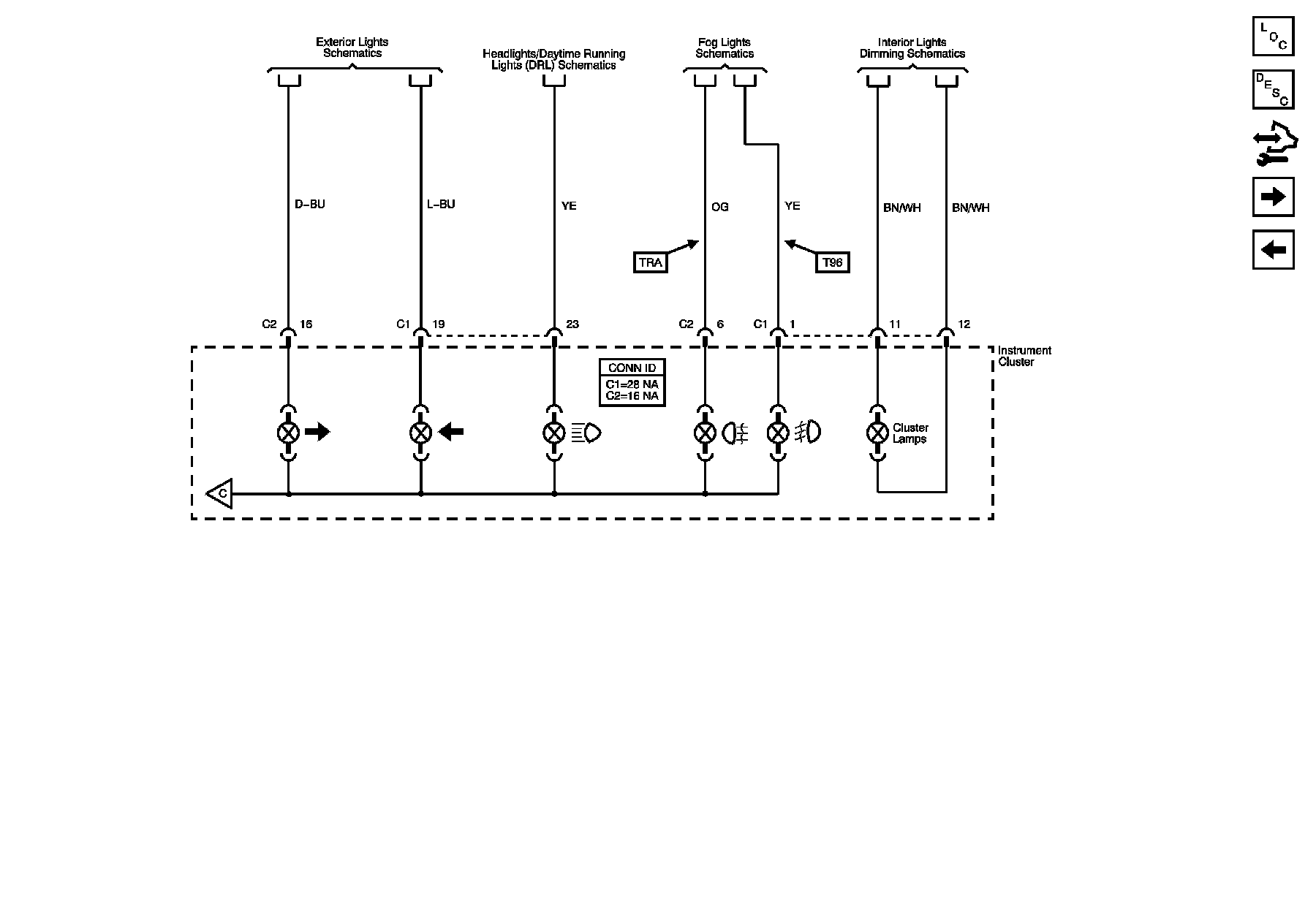

Turn, High Beam, Fog Indicators, Instrument Cluster Illumination





I/P Cluster
