Instrument Cluster Diagrams (Hatchback)



Instrument Cluster Schematics (Hatchback)

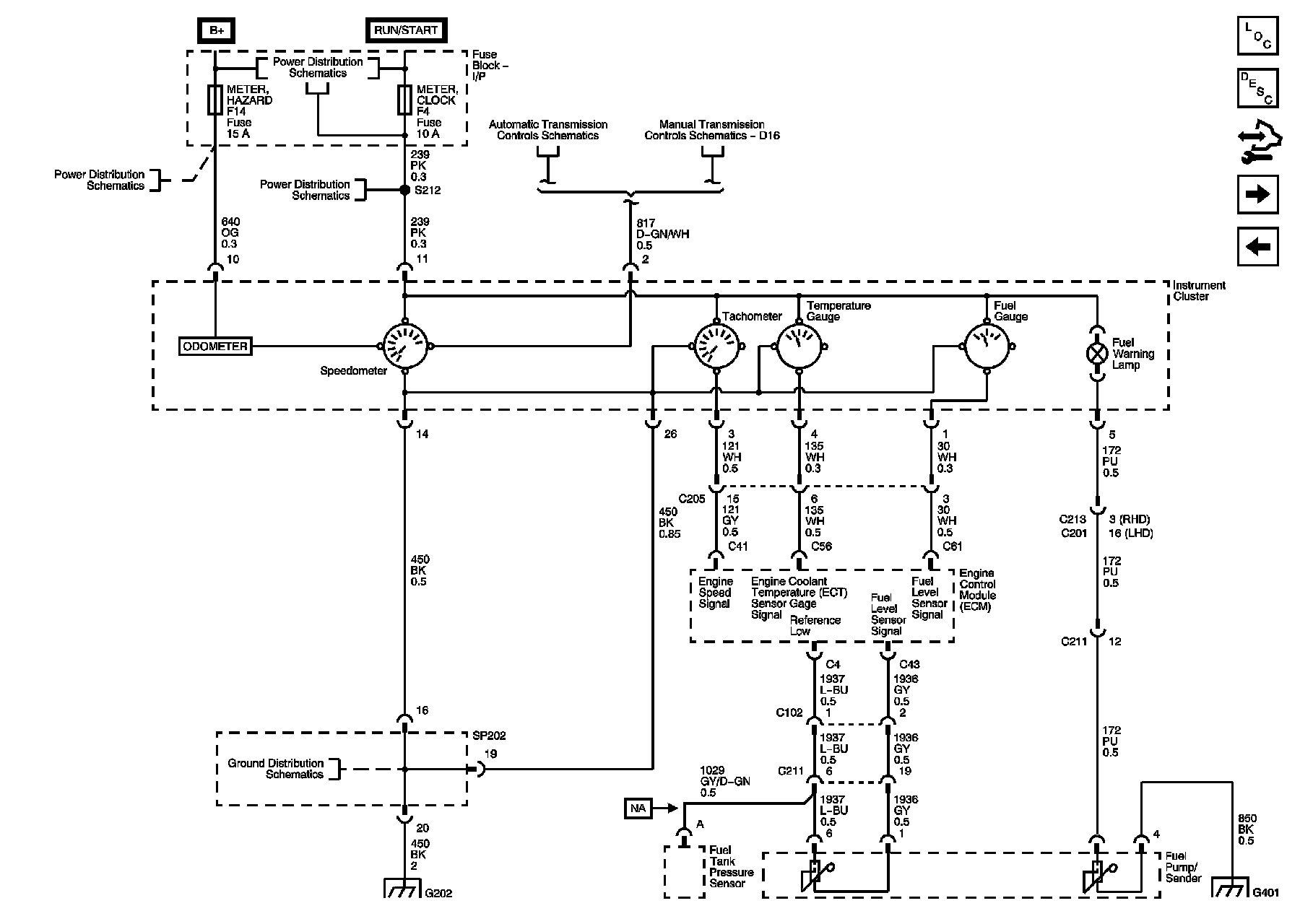

1.6L Gages

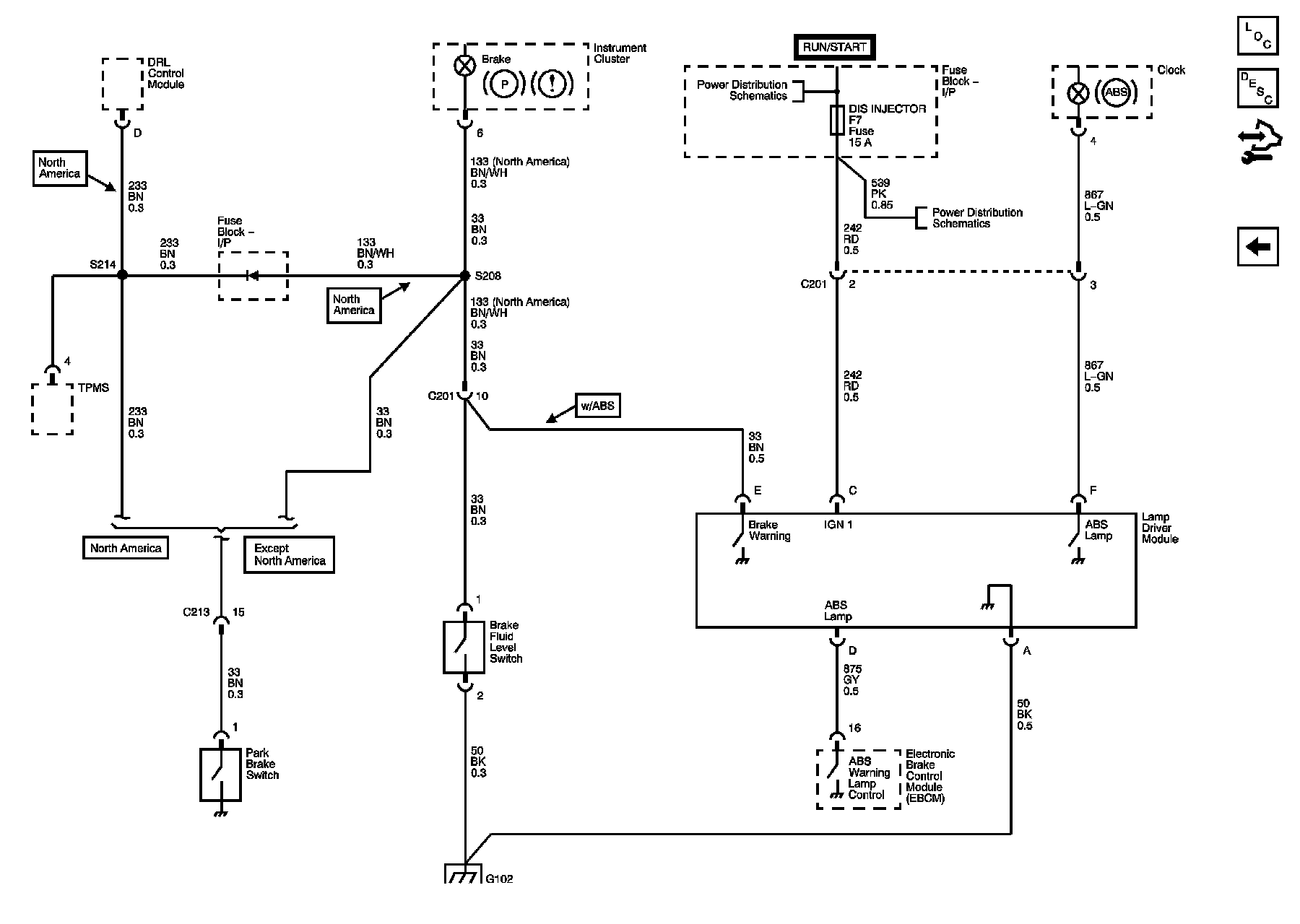

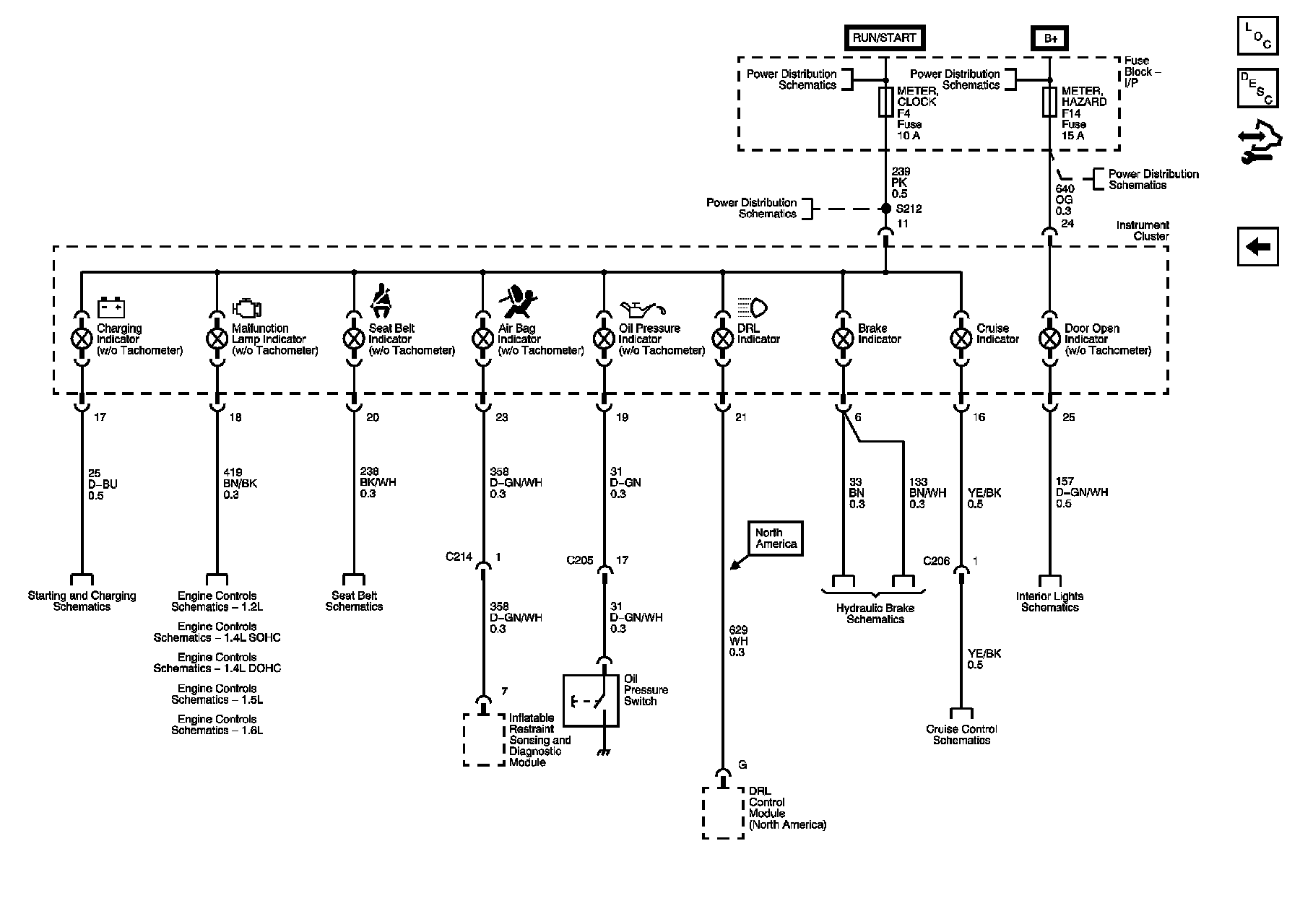

Indicators - 1 of 2

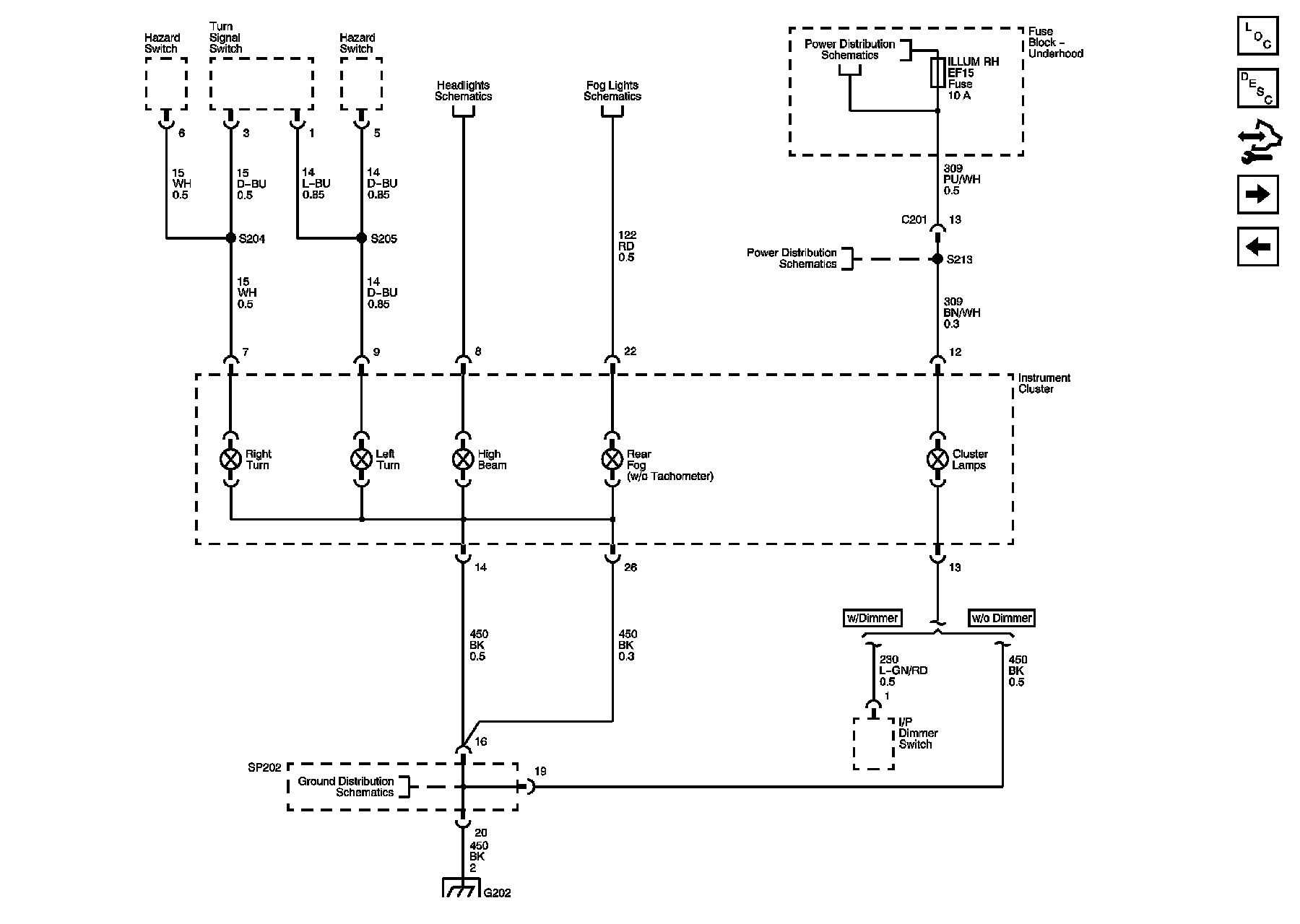

Indicators - 2 of 2





I/P Cluster
