Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Instrument Panel, Gauges and Warning Indicators >> System Diagram >> Audible Warnings Diagrams (Notchback)

Audible Warnings Diagrams (Notchback)

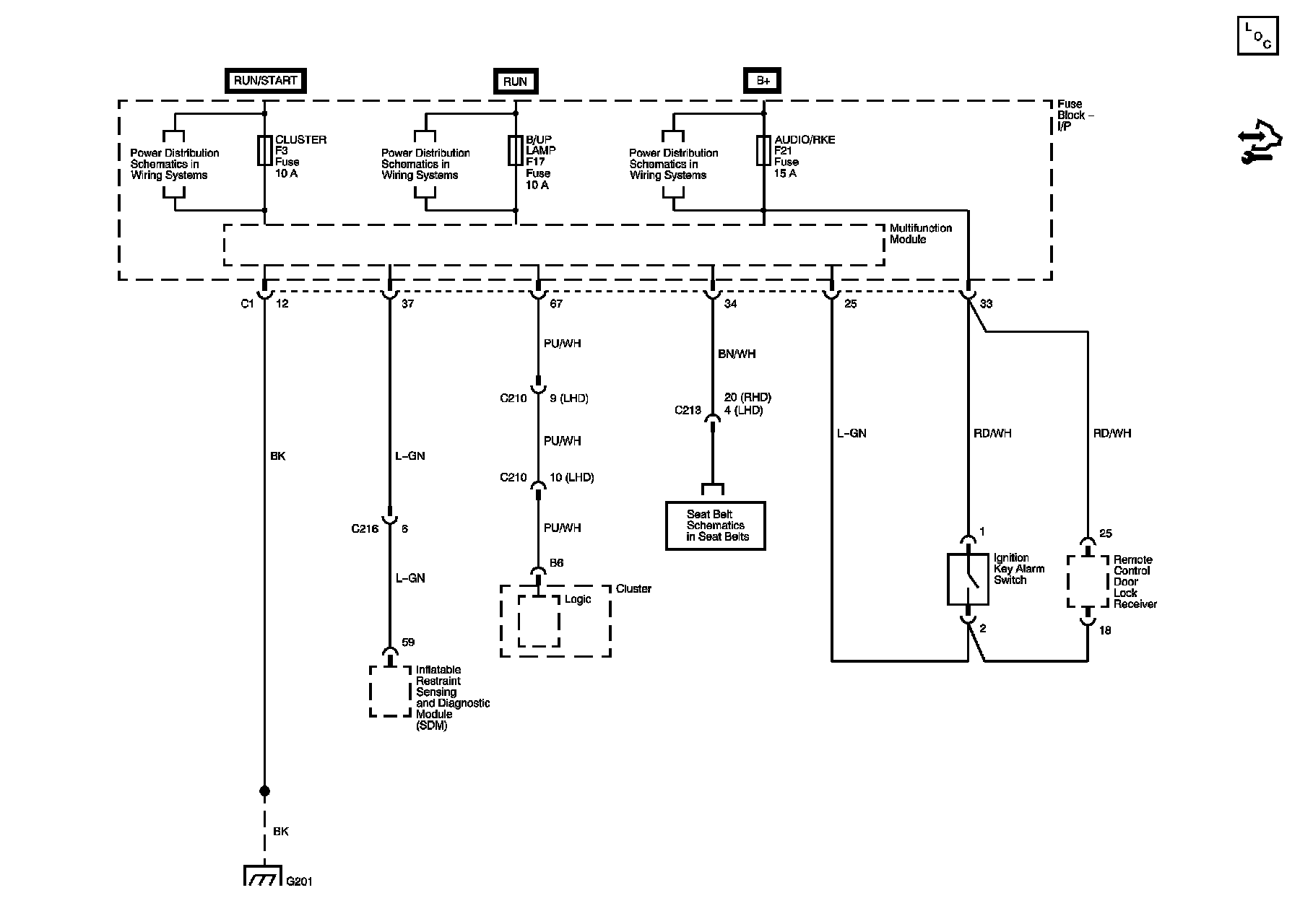

Audible Warnings Schematics (Notchback)
