Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heated Glass Element >> Defogger Diagrams (Notchback)

Defogger Diagrams (Notchback)

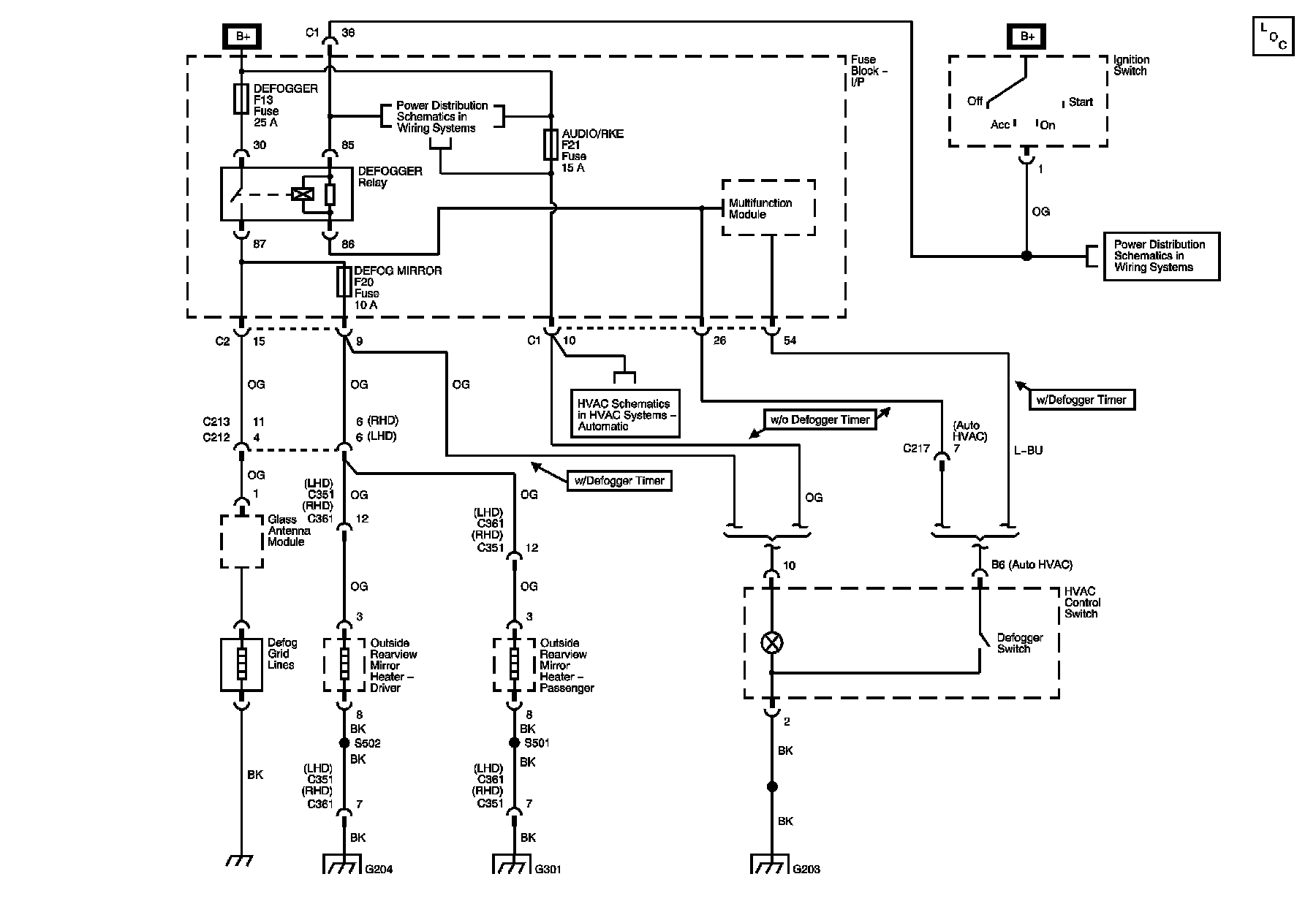

Defogger Schematics (Notchback)

Defogger Diagram (Notchback):
