Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> Cruise Control Diagrams (Notchback)

Cruise Control Diagrams (Notchback)

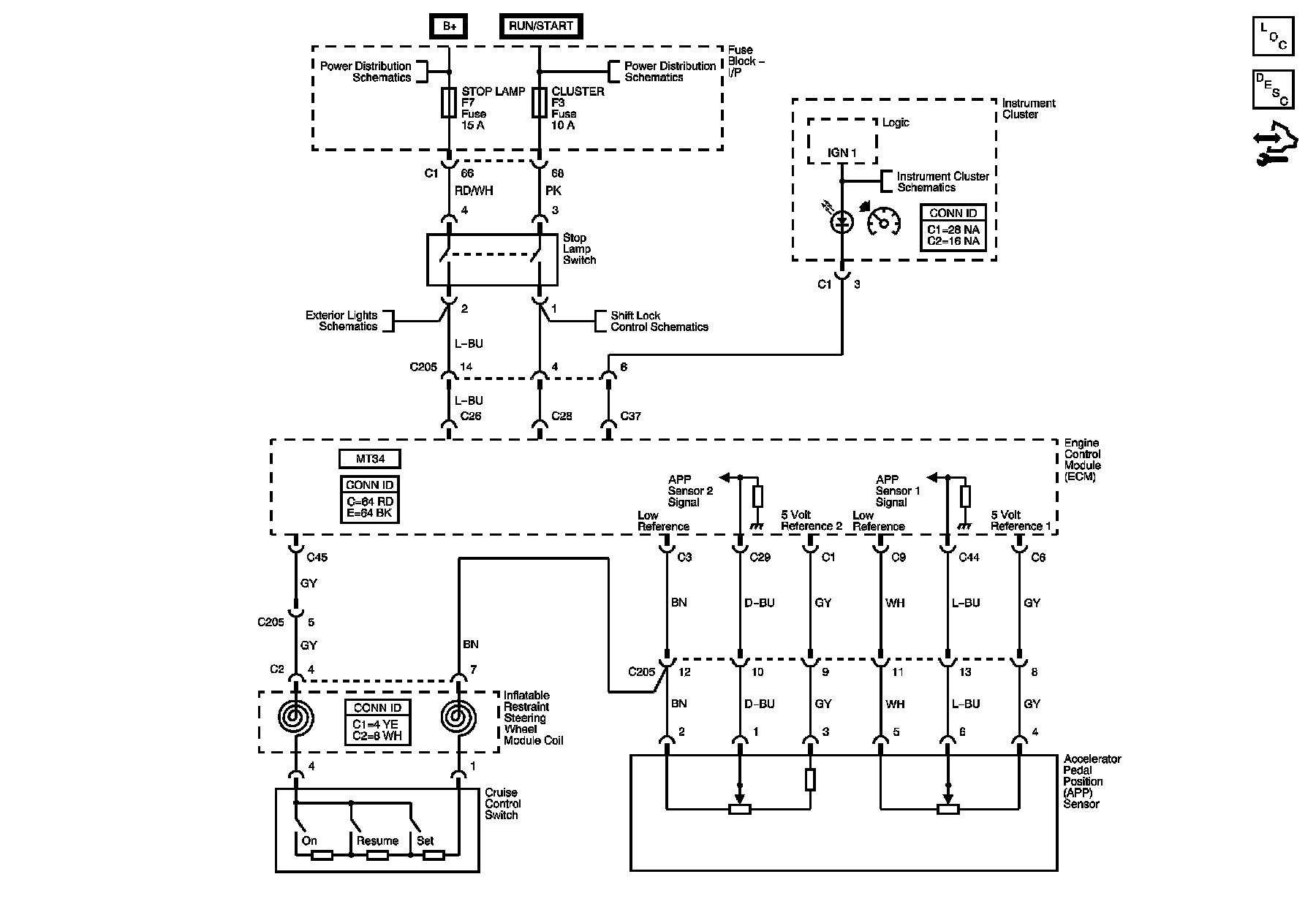

Cruise Control Schematics (Notchback)
