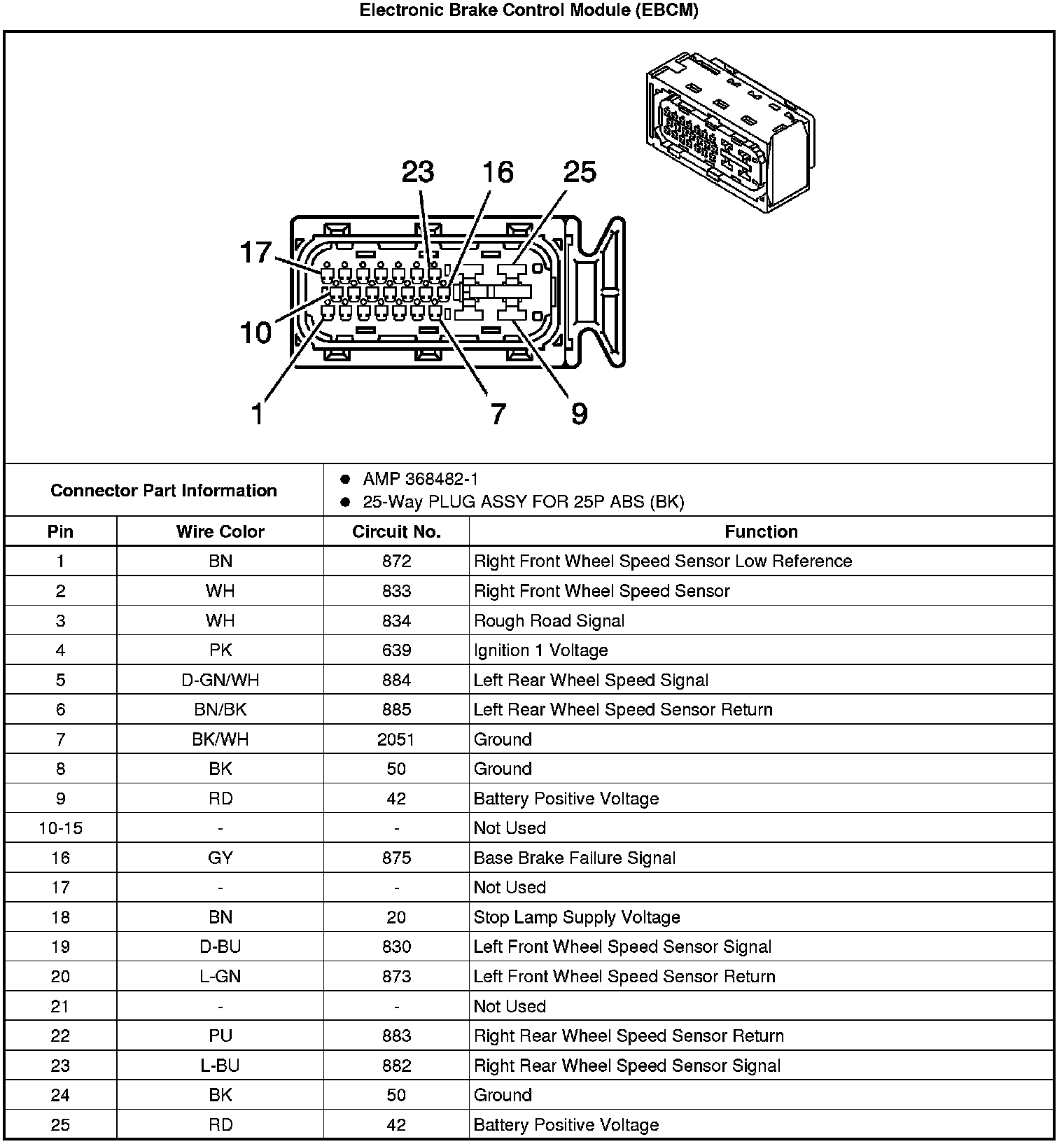

Antilock Brake System Connector End Views (Hatchback)



Antilock Brake System Connector End Views (Hatchback)
