Front Seat Adjuster Replacement (Horizontal)

Front Seat Adjuster Replacement (Horizontal)

Removal Procedure




1. Remove the seat back. Refer to Front Seat Back Replacement (Lever Type) (Front Seat Back Replacement (Lever Type))Front Seat Back Replacement (Dial Type) (Front Seat Back Replacement (Dial Type)).

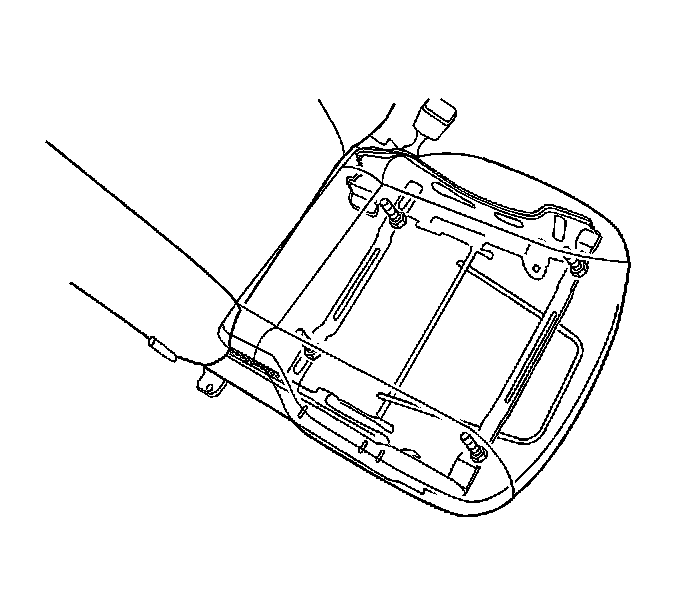

2. Remove the seat cushion bolts and the front seat adjusters from the seat cushion.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the front seat adjusters to the seat cushion with the bolts.

Tighten the front seat cushion bolts to 25 N.m (18 lb ft).

2. Install the seat back. Refer to Front Seat Back Replacement (Lever Type) (Front Seat Back Replacement (Lever Type))Front Seat Back Replacement (Dial Type) (Front Seat Back Replacement (Dial Type)).
