Outside Rearview Mirror Diagrams (Notchback)



Outside Rearview Mirror Schematics (Notchback)

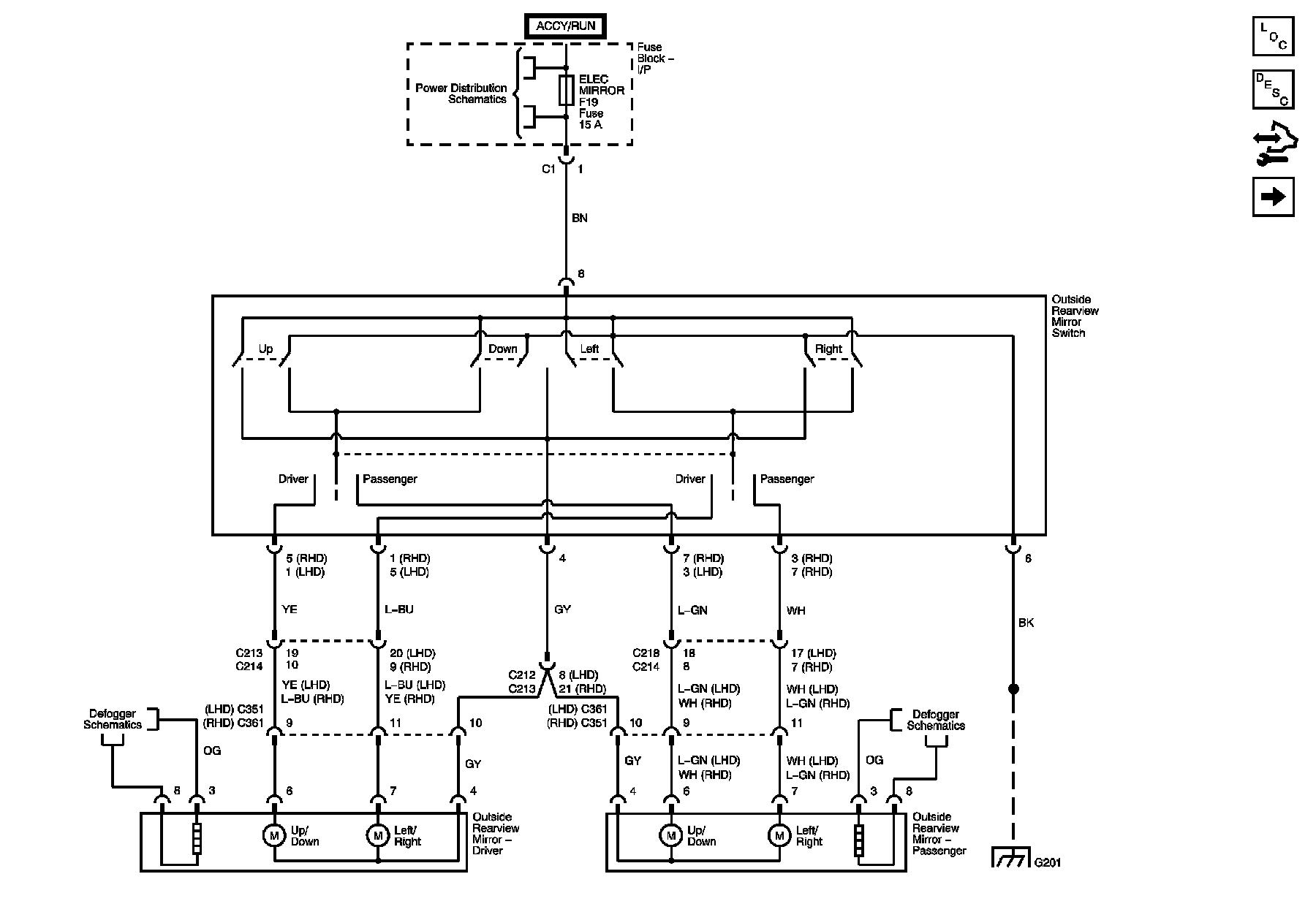

Power Mirrors

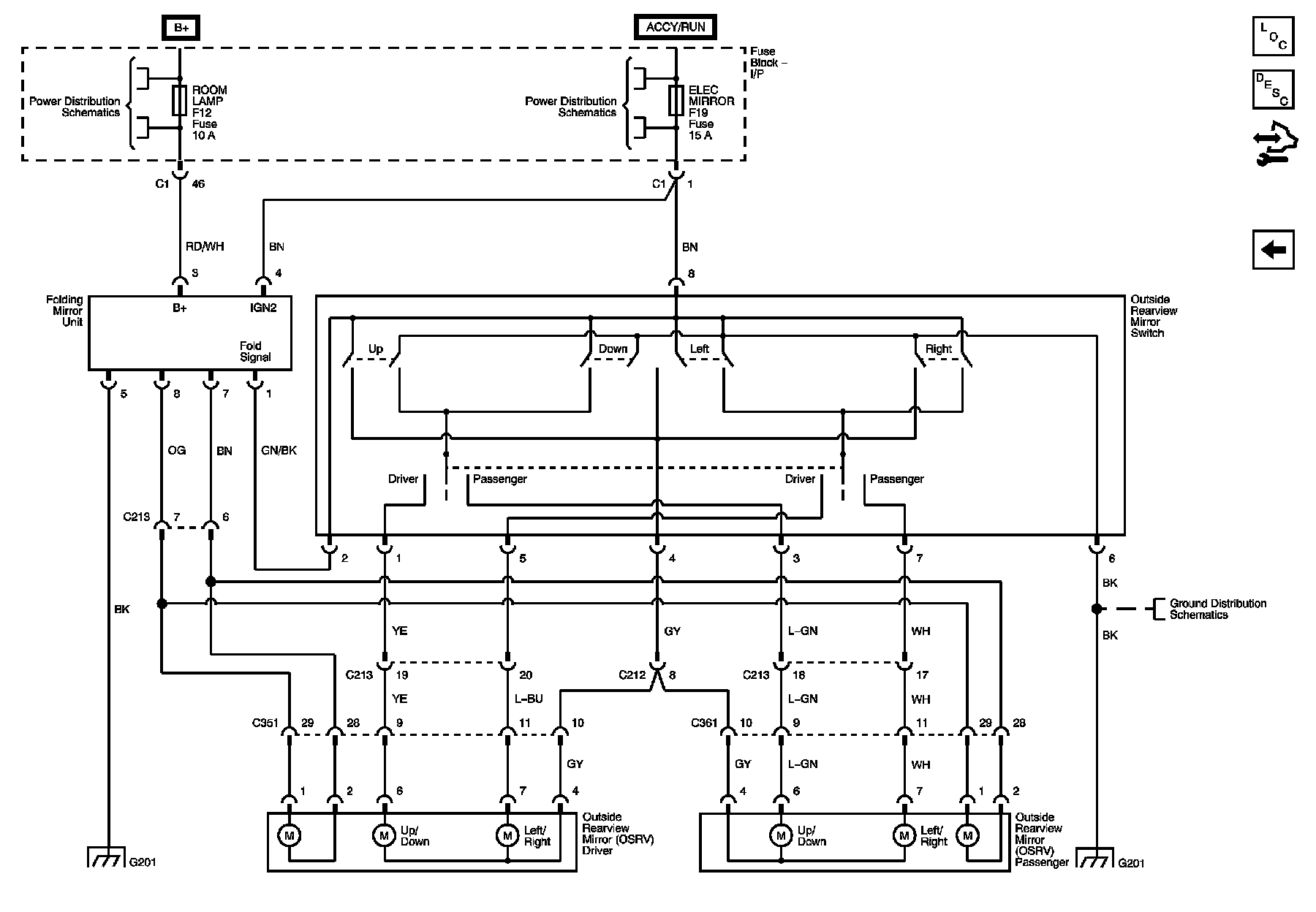

Folding Mirrors
