Outside Rearview Mirror Diagrams (Hatchback)



Outside Rearview Mirror Schematics (Hatchback)

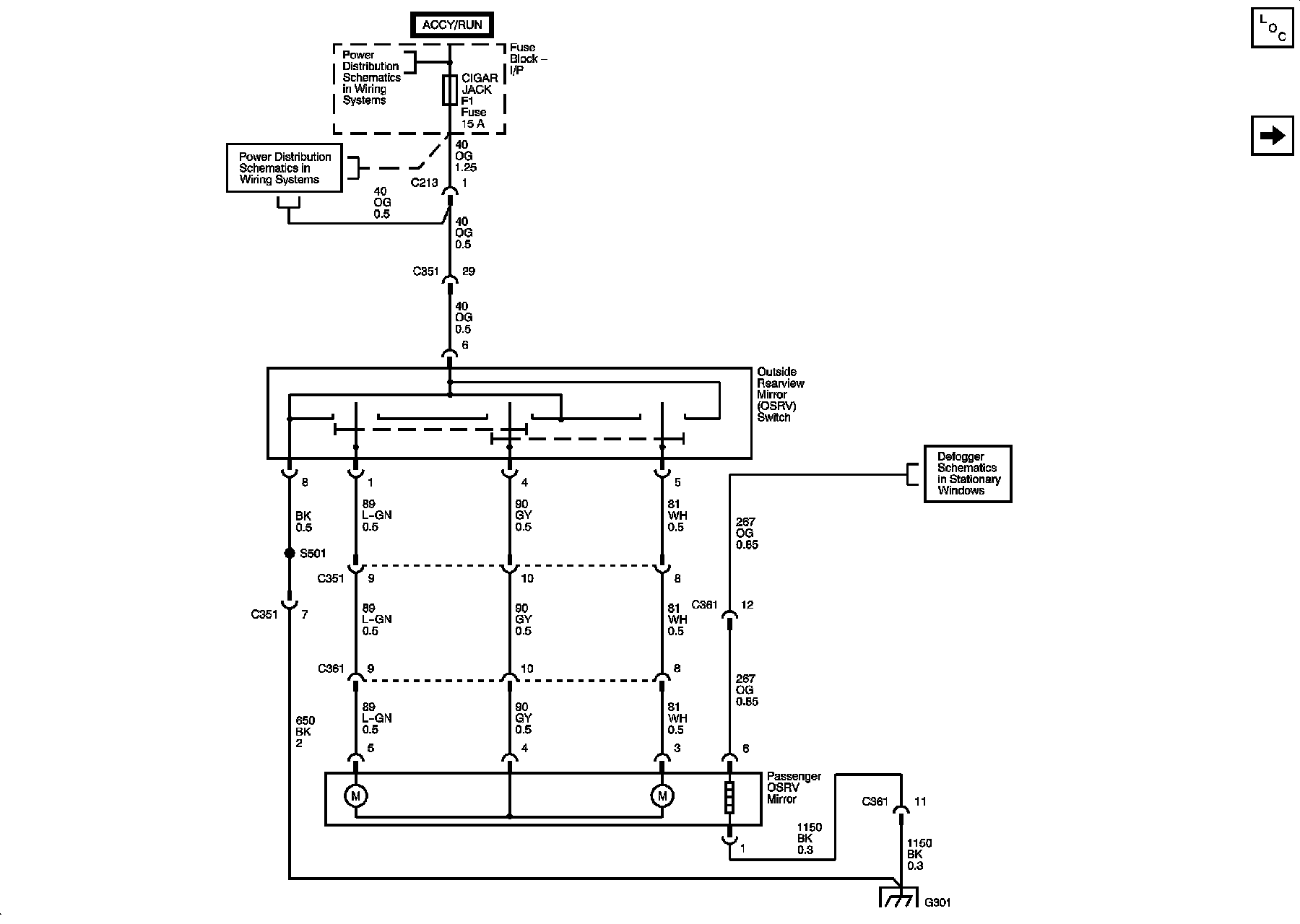

Pass Only

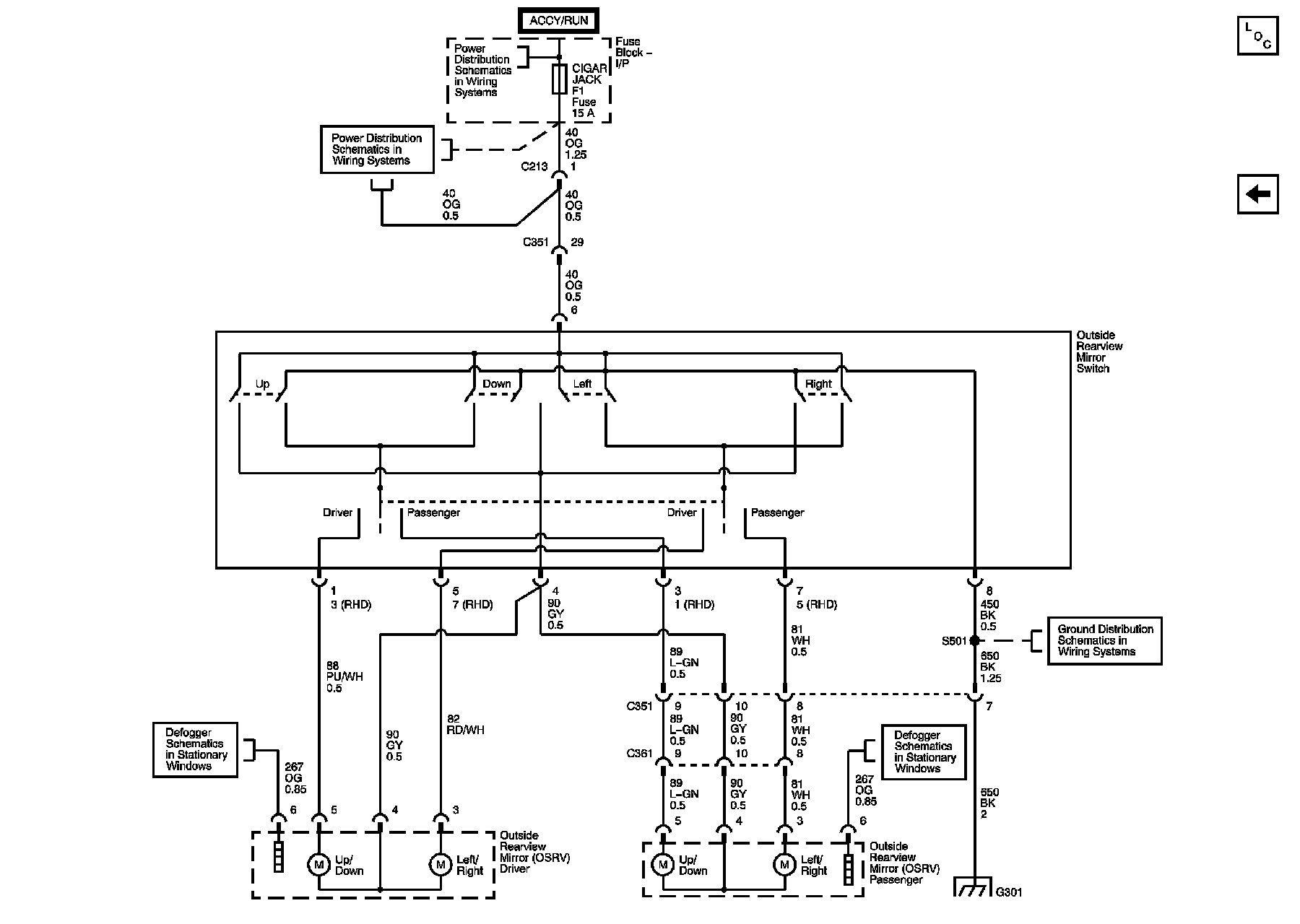

Dual
