Rear Compartment Lid Lock Cylinder Replacement (Hatchback)

Rear Compartment Lid Lock Cylinder Replacement (Hatchback)

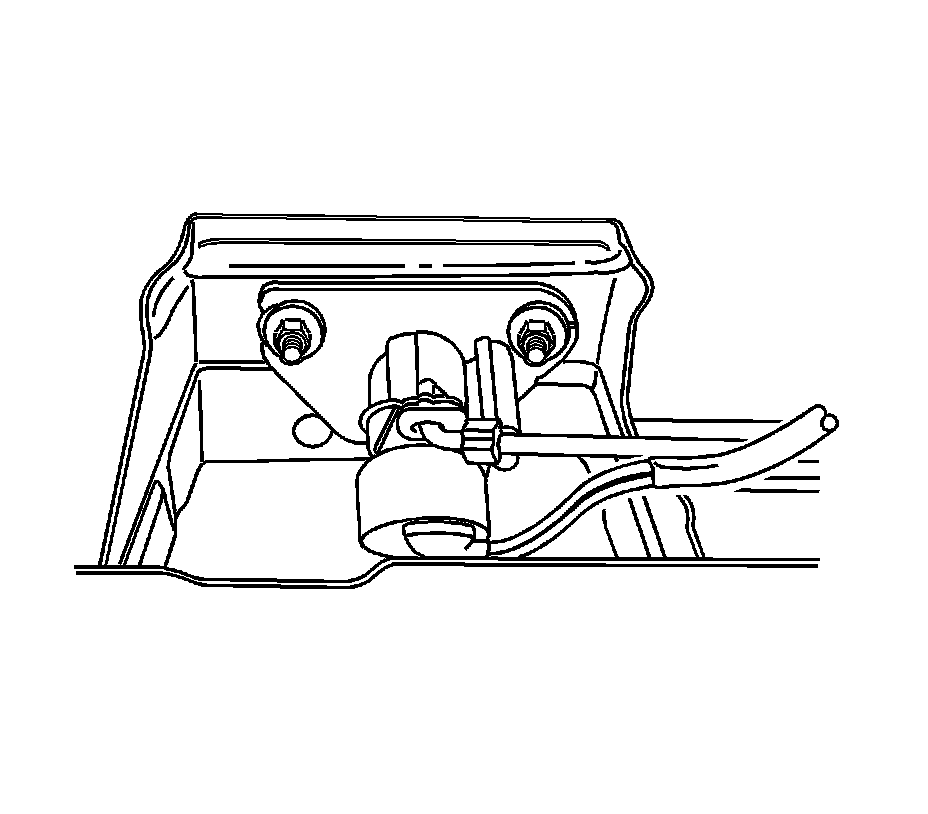

Removal Procedure




1. Remove the hatchback door lower garnish molding, if equipped.
2. Disconnect the lock rod.
3. Remove the nuts and the lock cylinder.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the lock cylinder with the nuts.

Tighten the luggage compartment lock cylinder nuts to 3 N.m (27 lb in).

2. Connect the lock rod.
3. Install the hatchback door lower garnish molding, if equipped.
