Rear Quarter Upper Trim Panel Replacement (Notchback)



Rear Quarter Upper Trim Panel Replacement (Notchback)

Removal Procedure




1. Remove the seat belt from the rear quarter upper trim panel.

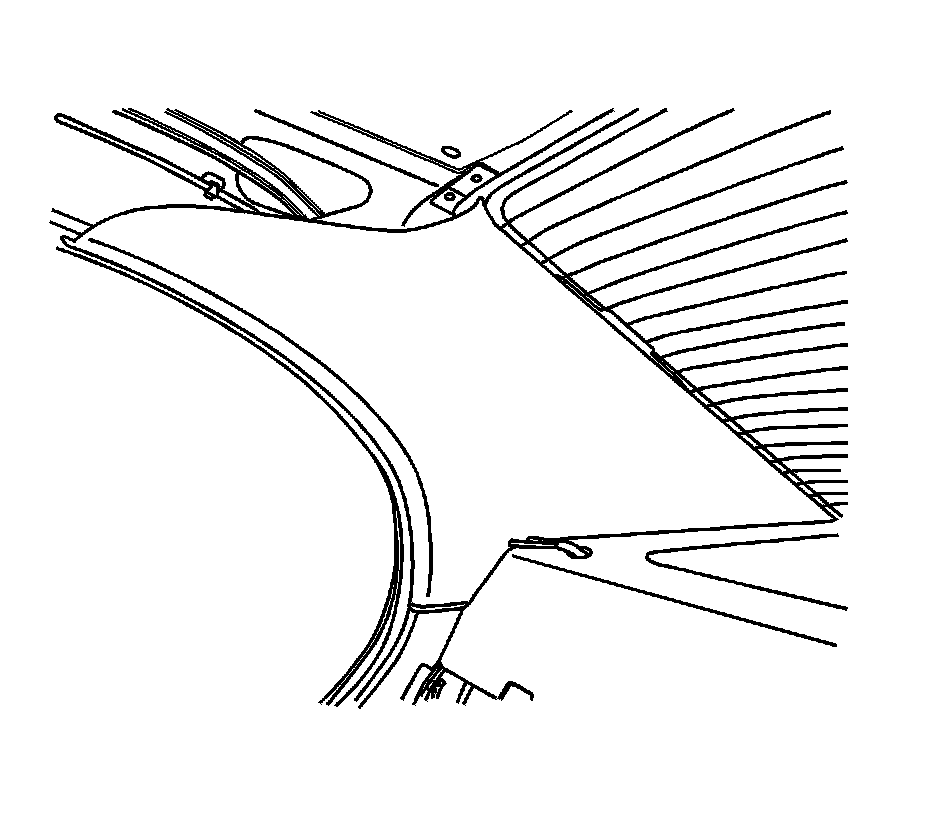

2. Remove the rear quarter upper trim panel.


Installation Procedure




1. Install the rear quarter upper trim panel.
2. Install the seat belt from the rear quarter upper trim panel.
