Center Pillar Upper Trim Panel Replacement (Hatchback)

Center Pillar Upper Trim Panel Replacement (Hatchback)

Removal Procedure

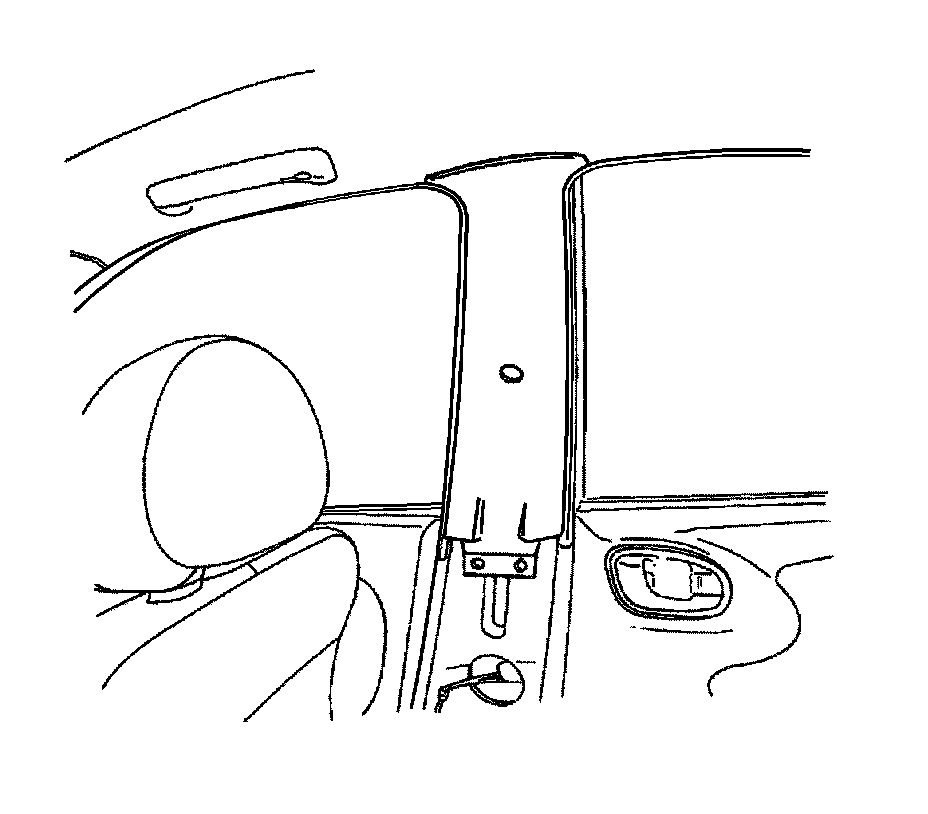

1. Remove the bolt and the upper front seat belt anchor.




2. Remove the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement (Notchback) (Service and Repair)Center Pillar Lower Trim Panel Replacement (Hatchback) (Service and Repair).

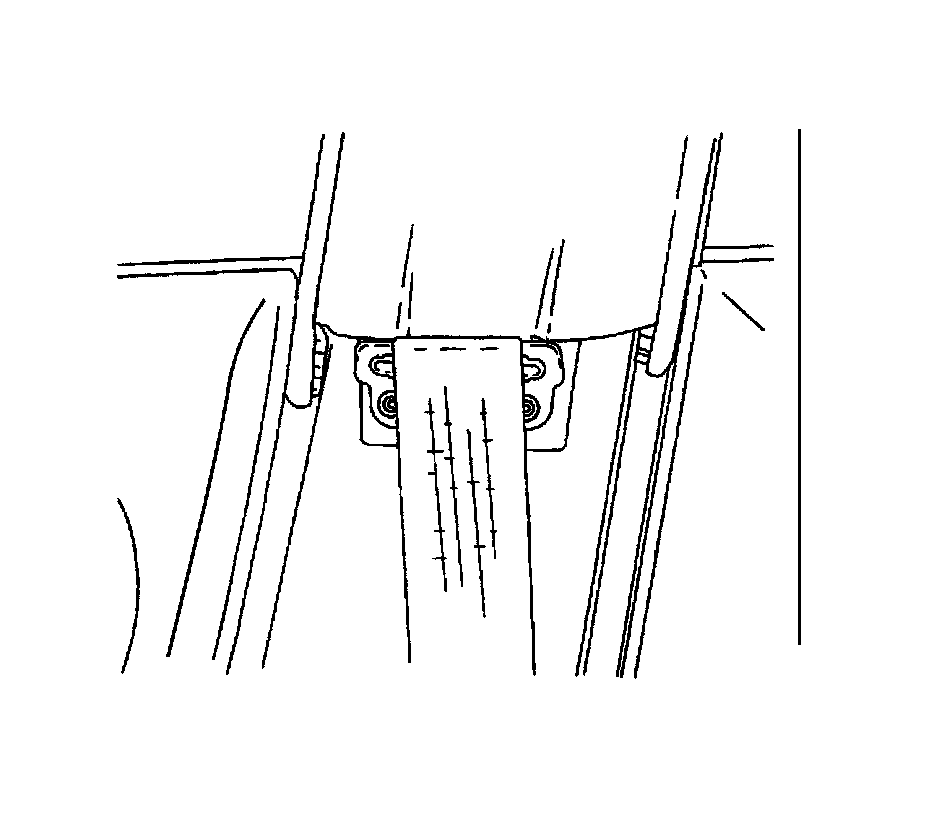

3. Remove the screws and the seat belt bracket.

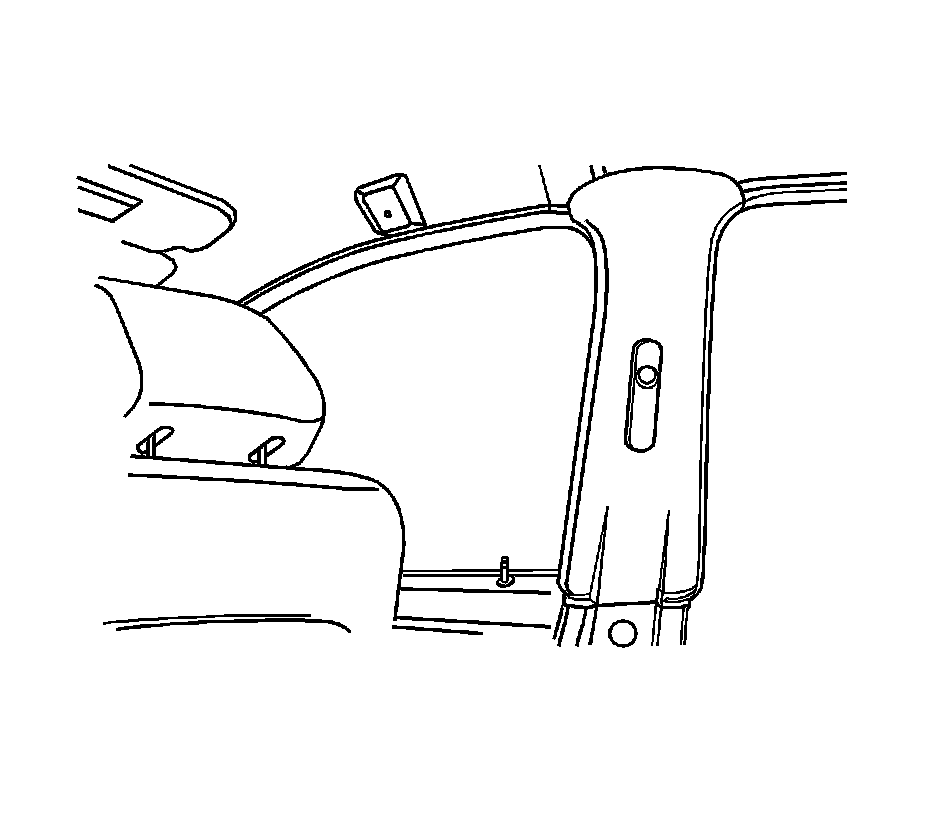

4. Pry off the upper center pillar trim panel.


Installation Procedure




1. Install the upper center pillar trim panel.





Notice: Refer to Fastener Notice (Fastener Notice).

2. Install the seat belt bracket with the screws.

Tighten the seat belt bracket screws to 10 N.m (89 lb in).




3. Install the lower center pillar trim panel. Refer to Center Pillar Lower Trim Panel Replacement (Notchback) (Service and Repair)Center Pillar Lower Trim Panel Replacement (Hatchback) (Service and Repair).
4. Install the upper front seat belt anchor with the bolt.

Tighten the seat belt anchor bolt to 38 N.m (28 lb ft).
