Passenger Assist Handle: Service and Repair

Assist Handle Replacement

Removal Procedure

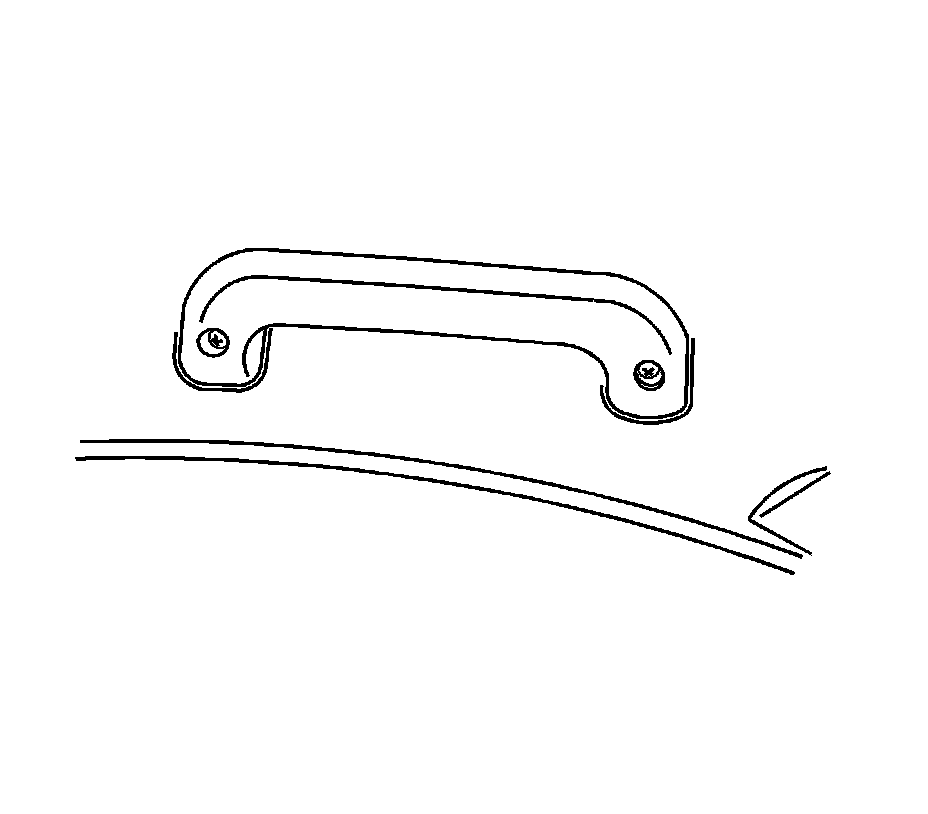

Remove the screws and the assist handle from the headliner.

Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

Install the assist handle to the headliner with the screws.

Tighten the passenger assist handle screws to 3.5 N.m (31 lb in).
