Cupholder Replacement (Notchback)

Cupholder Replacement (Notchback)

Removal Procedure




1. Slide the cupholder open.

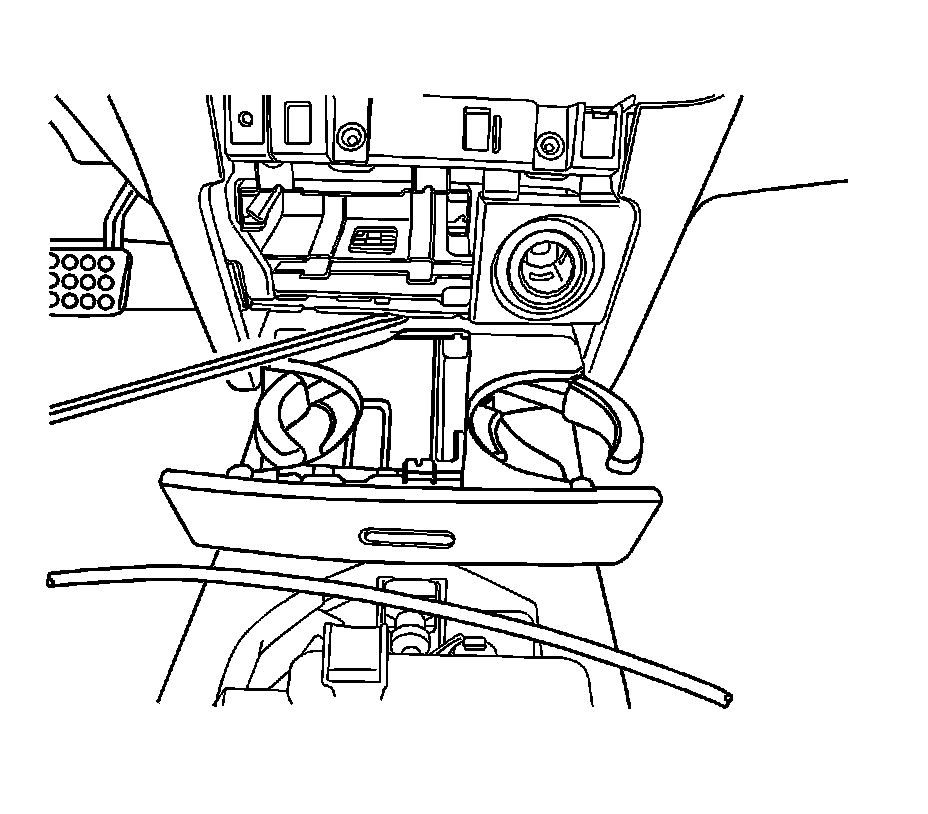

2. Push down on the retaining tab and remove the cupholder from the instrument panel.


Installation Procedure




1. Install the cupholder to the instrument panel by sliding forward making sure the retaining tab locks in.
2. Slide the cupholder in and out to make sure it functions correctly.
