Cupholder Replacement (Hatchback)

Cupholder Replacement (Hatchback)

Removal Procedure




1. Remove the instrument panel. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)Instrument Panel Assembly Replacement (Hatchback) (Service and Repair).

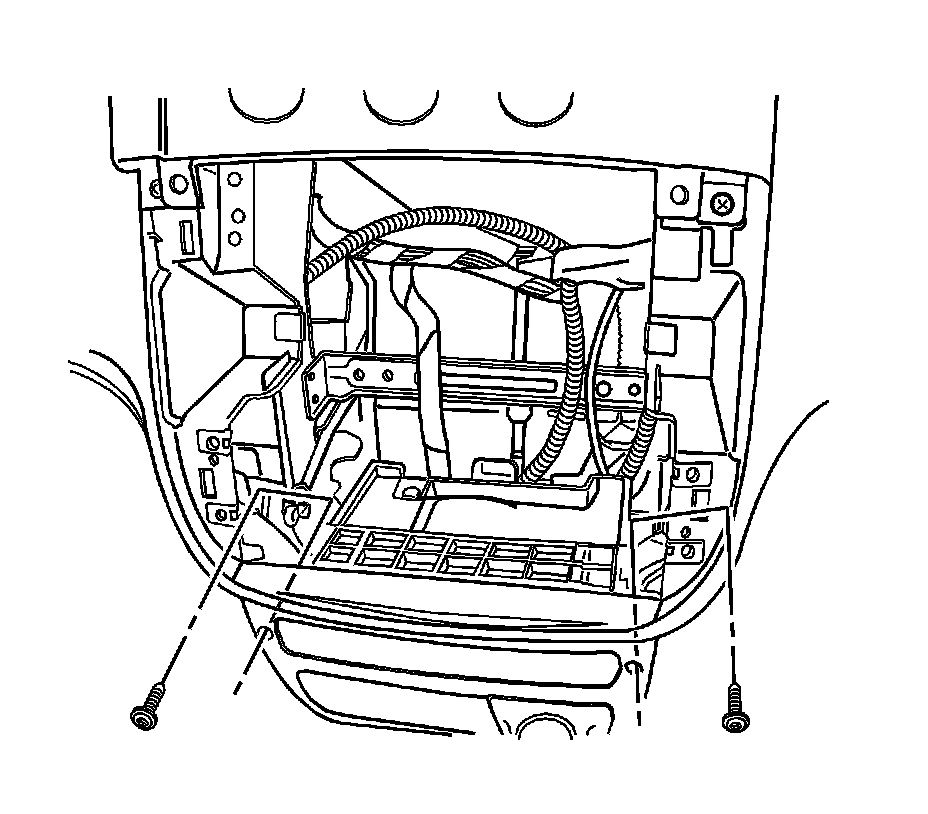

2. Remove the screws and the cupholder from the instrument panel.


Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

1. Install the cupholder with the screws.

Tighten the cupholder screws to 2.5 N.m (22 lb in).

2. Install the instrument panel. Refer to Instrument Panel Assembly Replacement (Notchback) (Service and Repair)Instrument Panel Assembly Replacement (Hatchback) (Service and Repair).
