Front Door Striker: Service and Repair

Door Striker Replacement

Removal Procedure

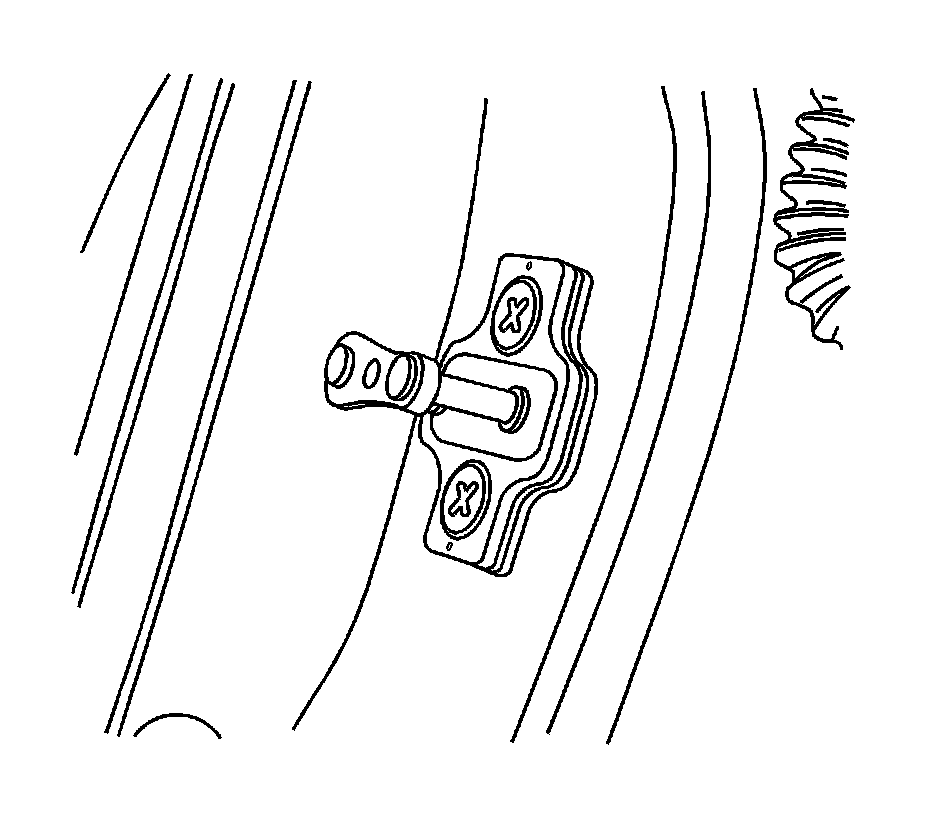

Remove the screws and the door lock striker.

Installation Procedure





Notice: Refer to Fastener Notice (Fastener Notice).

Install the screws and the door lock striker.

Tighten the door lock striker screws to 24 N.m (18 lb ft).
