Home >> Pontiac >> 2008 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Accessories and Optional Equipment >> Diagrams >> Electrical Diagrams >> Radio/Navigation System Diagrams (Notchback)

Radio/Navigation System Diagrams (Notchback)

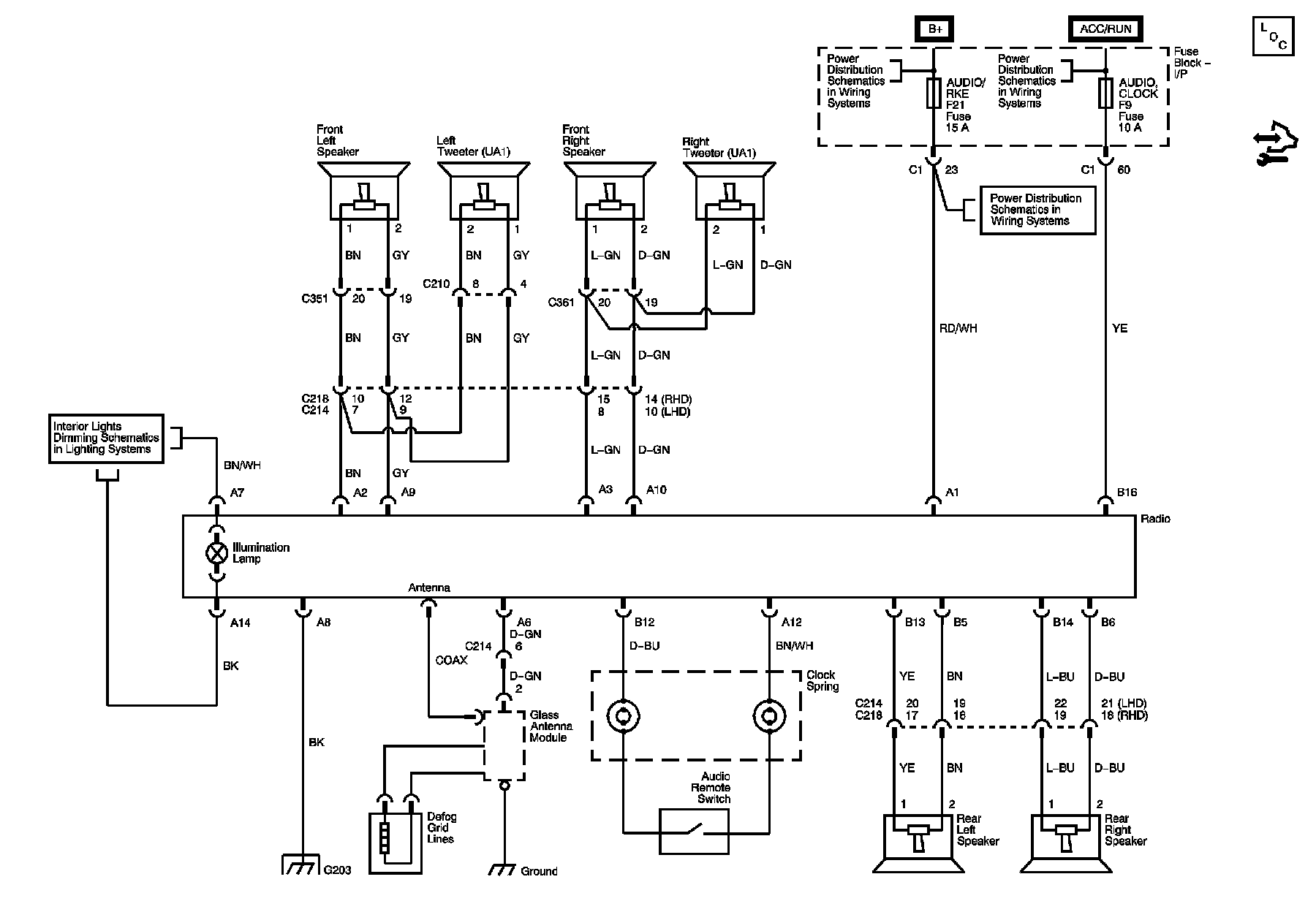

Radio/Navigation System Schematics (Notchback)
