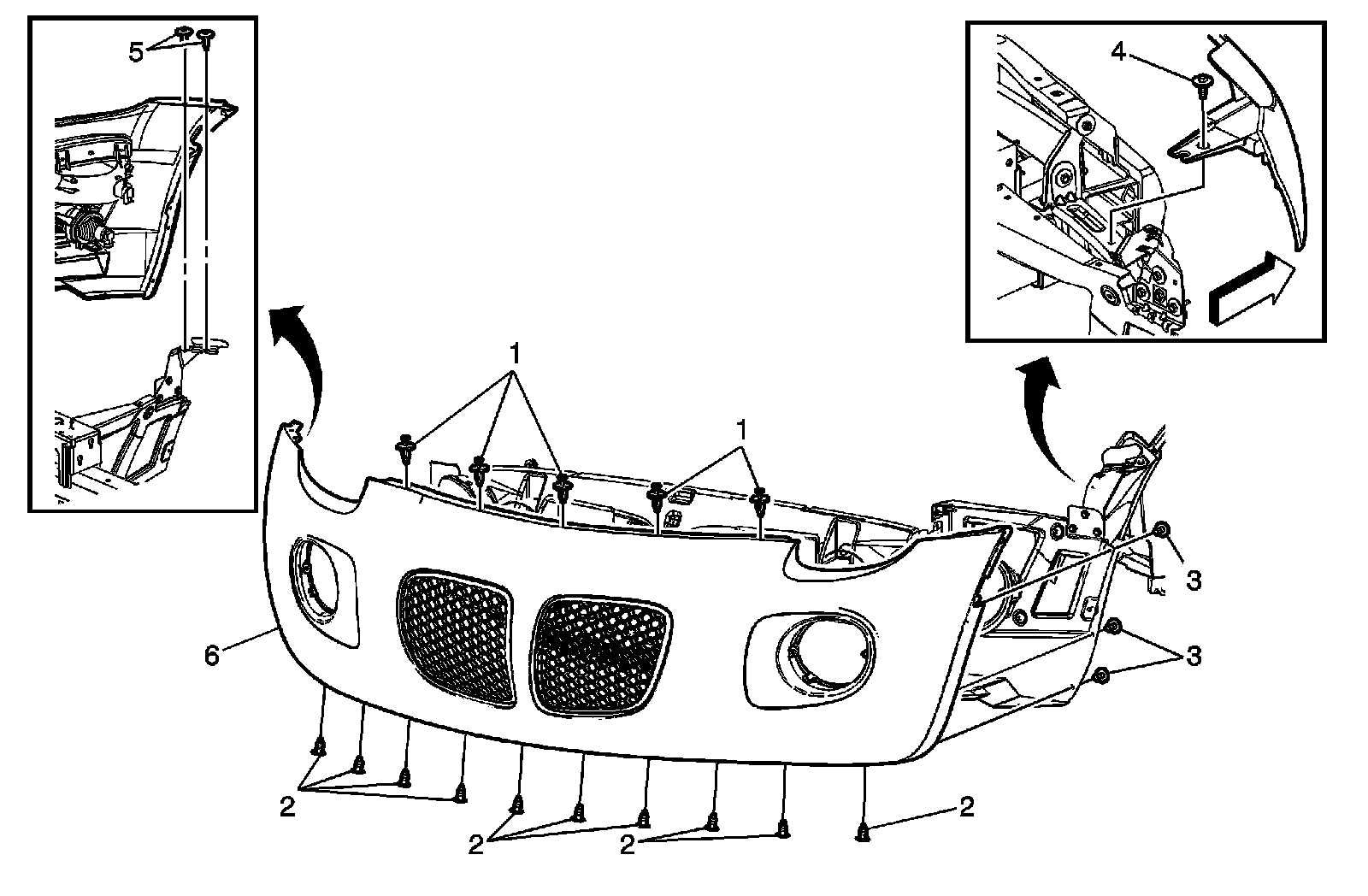

Front Bumper Fascia Replacement (Solstice Turbo)


Front Bumper Fascia Replacement (Solstice Turbo)

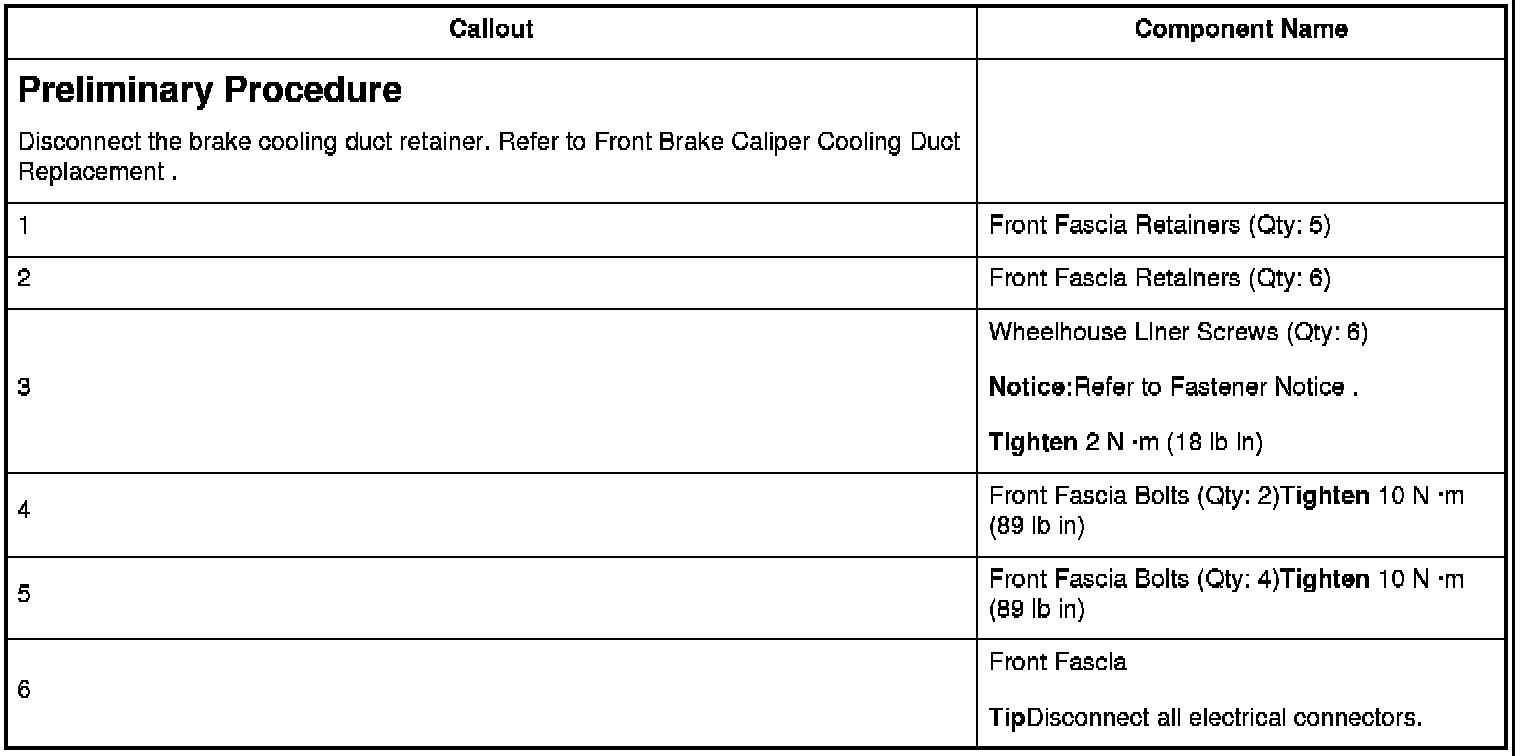

Preliminary Procedure

Notice:Refer to.
TightenTightenTighten
TipDisconnect all electrical connectors.
