Air Bag Deactivation Switch: Diagrams

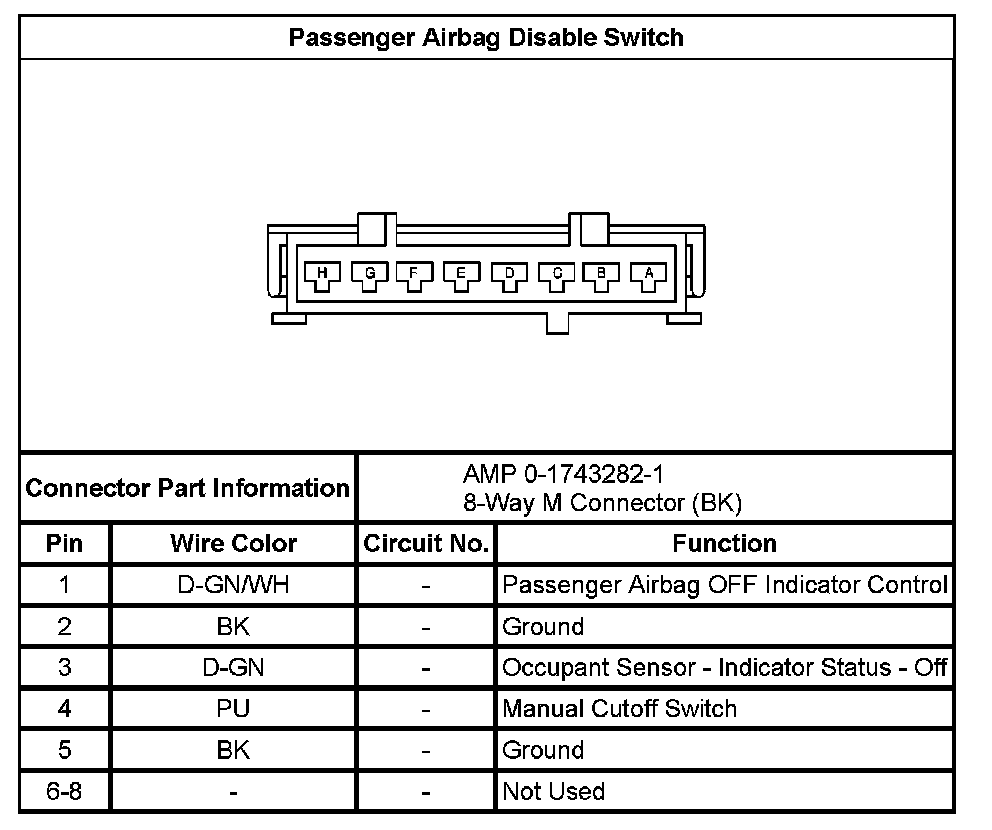

SIR Connector End Views (Notchback)

Passenger Airbag Disable Switch
