SIR Schematics (North American (Hatchback))



SIR Schematics (North American (Hatchback))

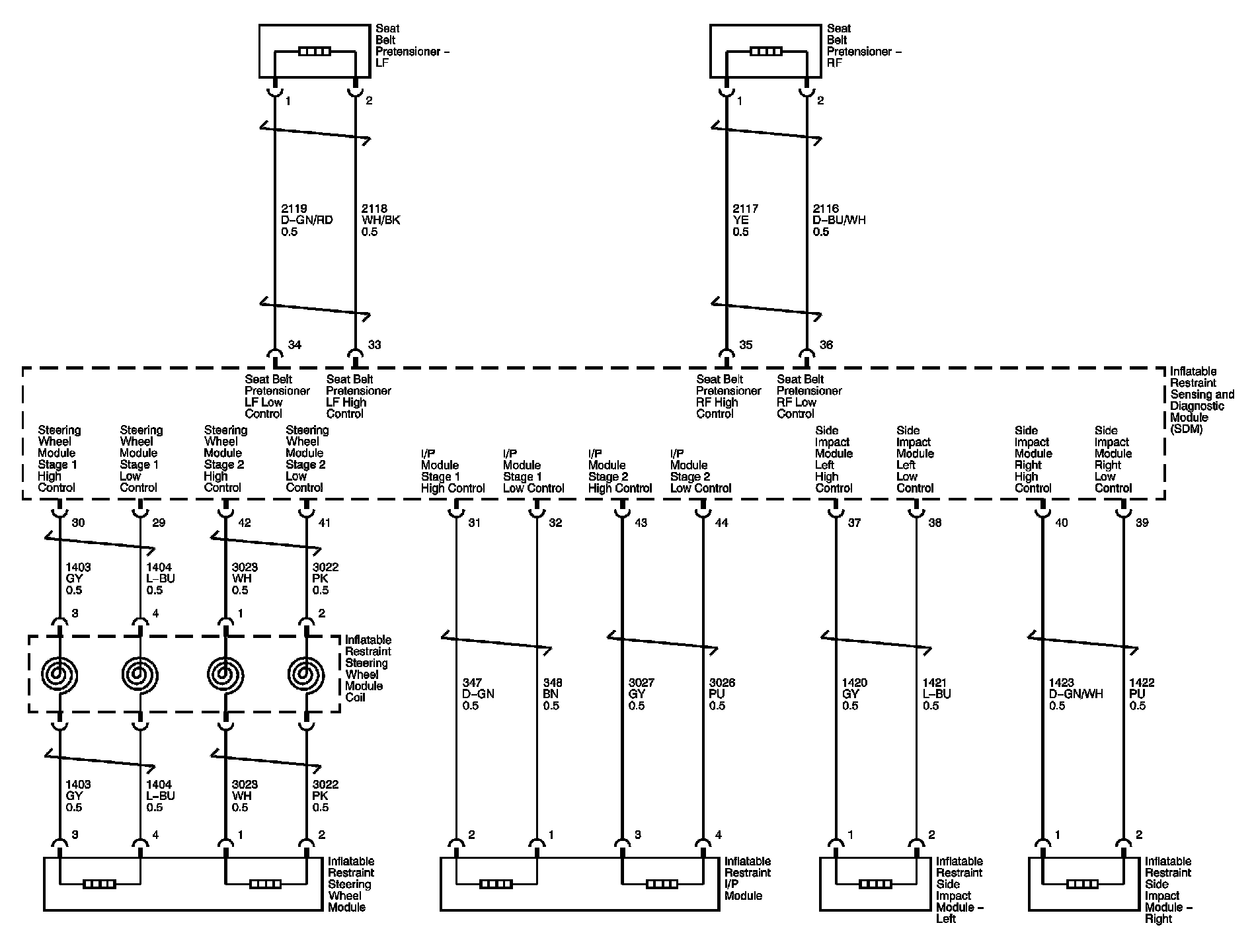

1 of 2






2 of 2
