Vehicle Speed Sensor
>>
Diagrams
>>
Connector End Views (Hatchback)
Connector End Views (Hatchback)
Connector End Views (Hatchback)

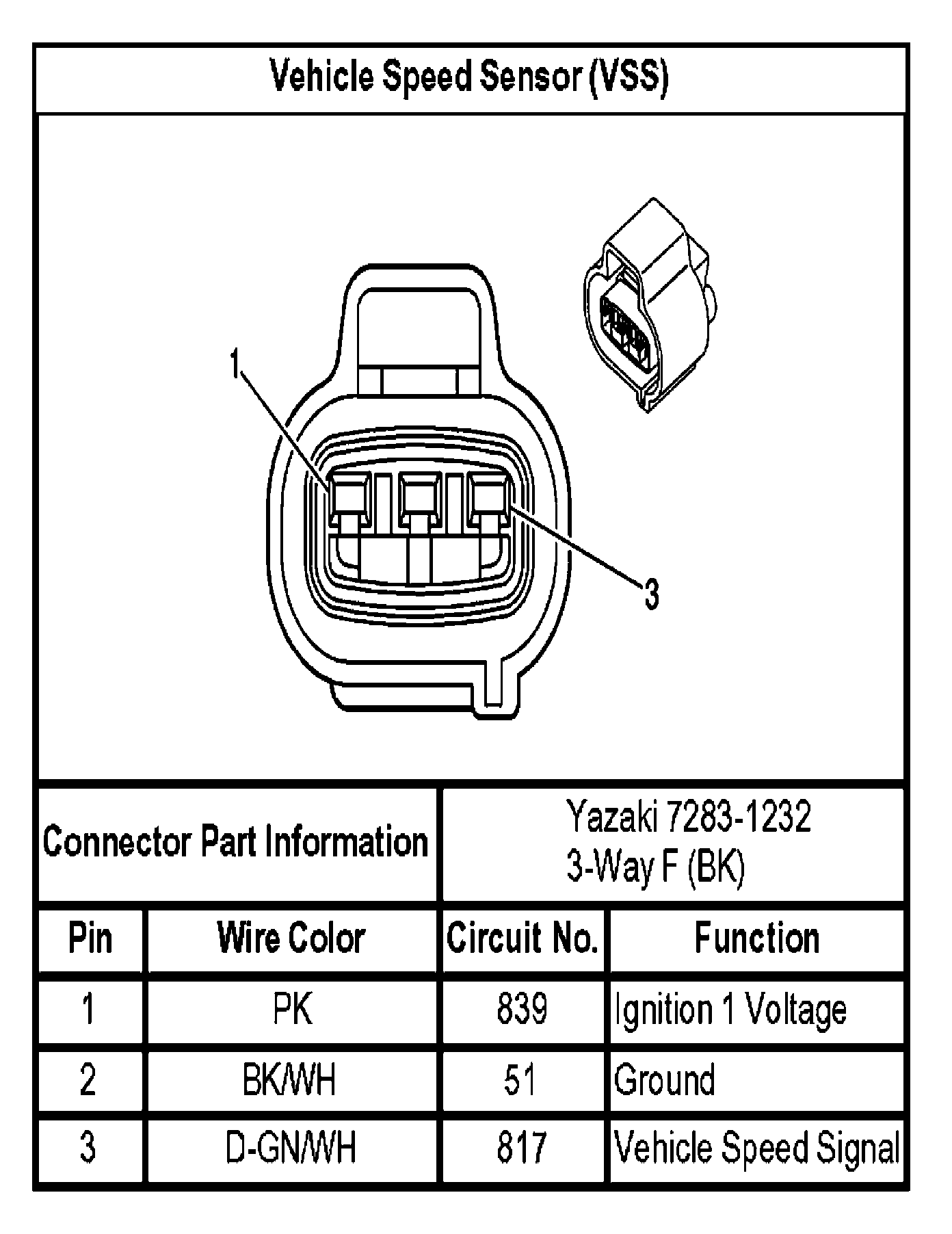

Vehicle Speed Sensor (VSS):
