Inline Harness Connector End Views (Hatchback)
>>
C300 - C399
>>
C351
C351
Inline Harness Connector End Views (Hatchback)

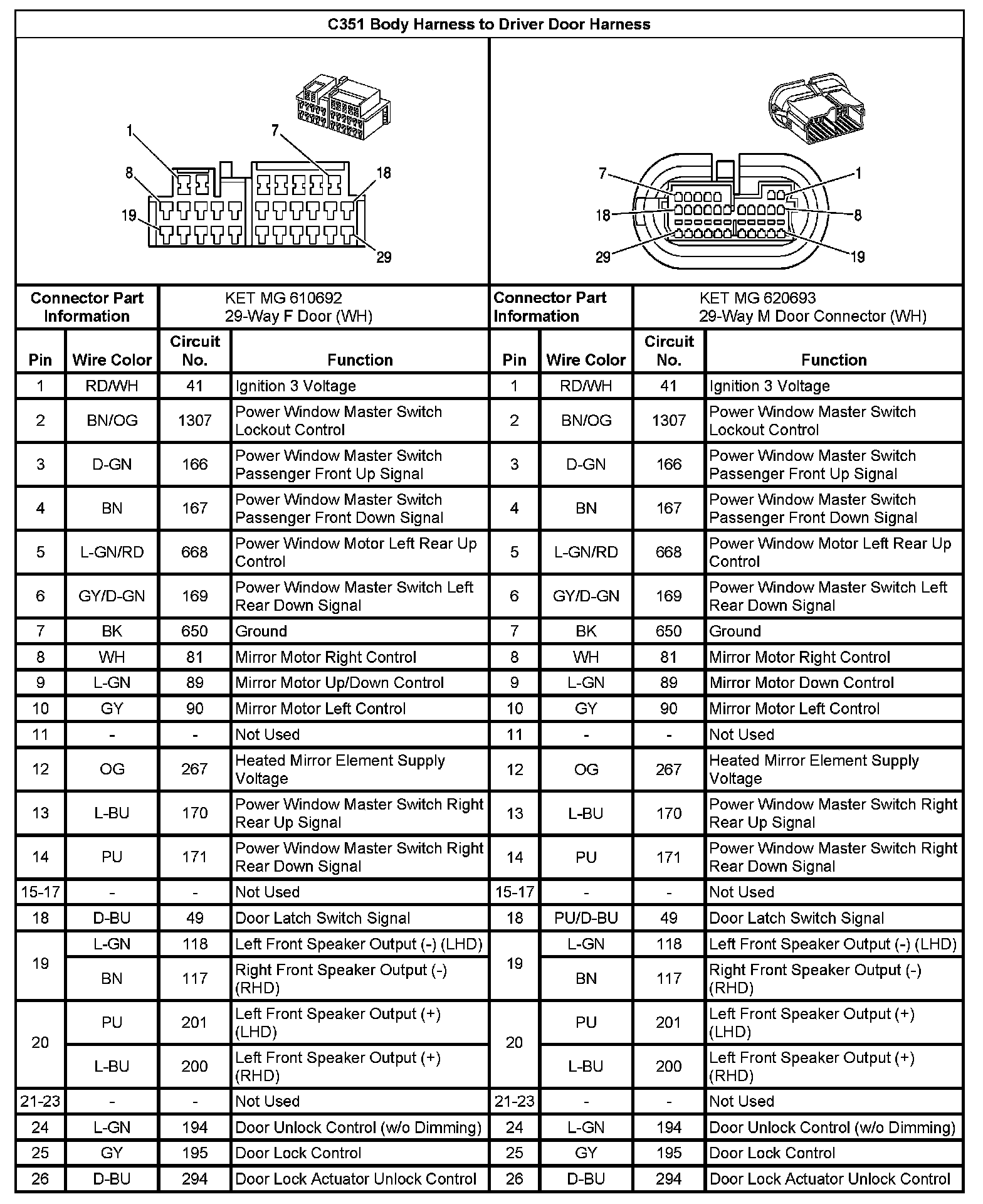

C351 Body Harness To Driver Door Harness (Pin 1 To 26):

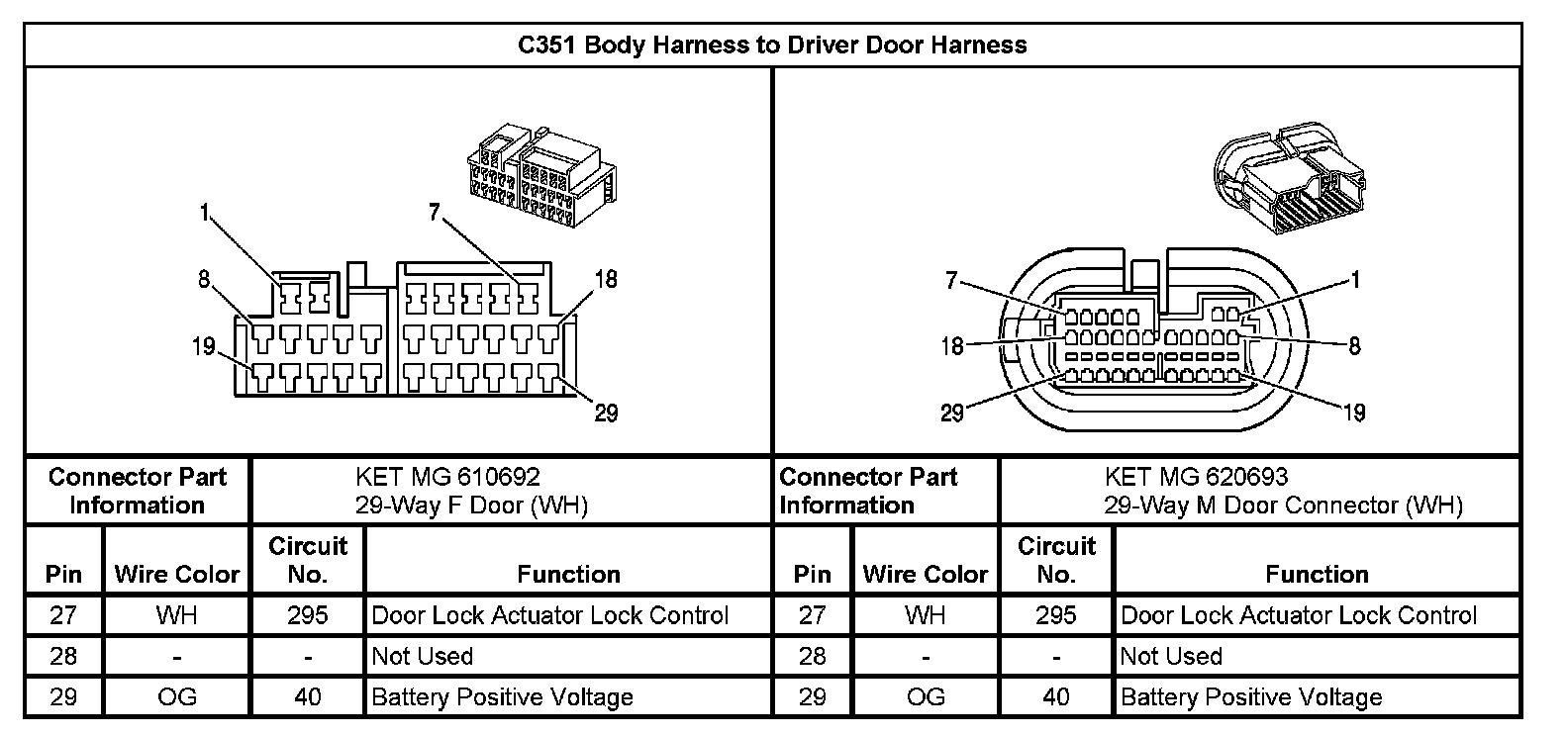

C351 Body Harness To Driver Door Harness (Pin 27 To 29):
