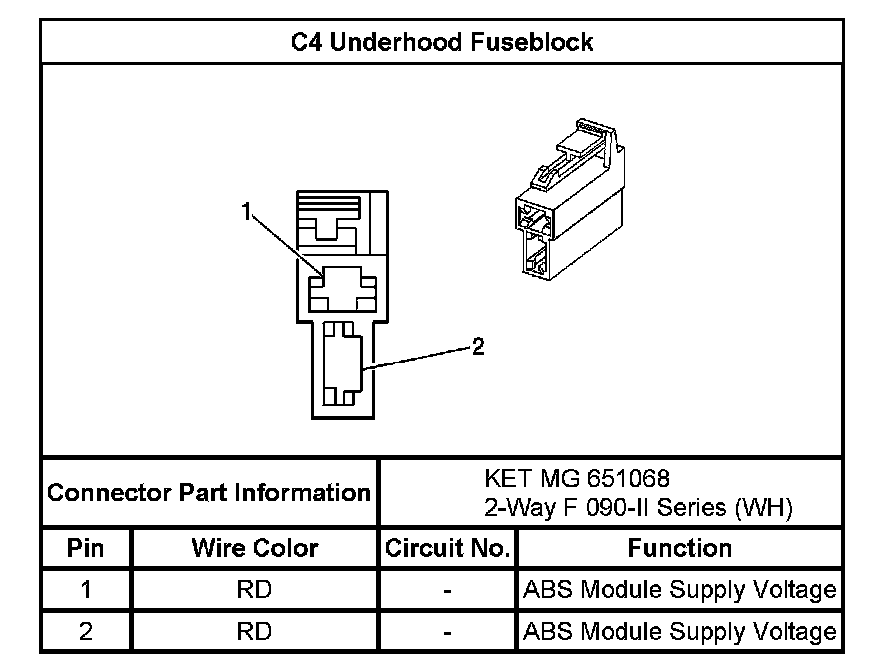

Power and Grounding Connector End Views (Notchback)
Power and Grounding Connector End Views (Notchback)
Power and Grounding Connector End Views (Notchback)

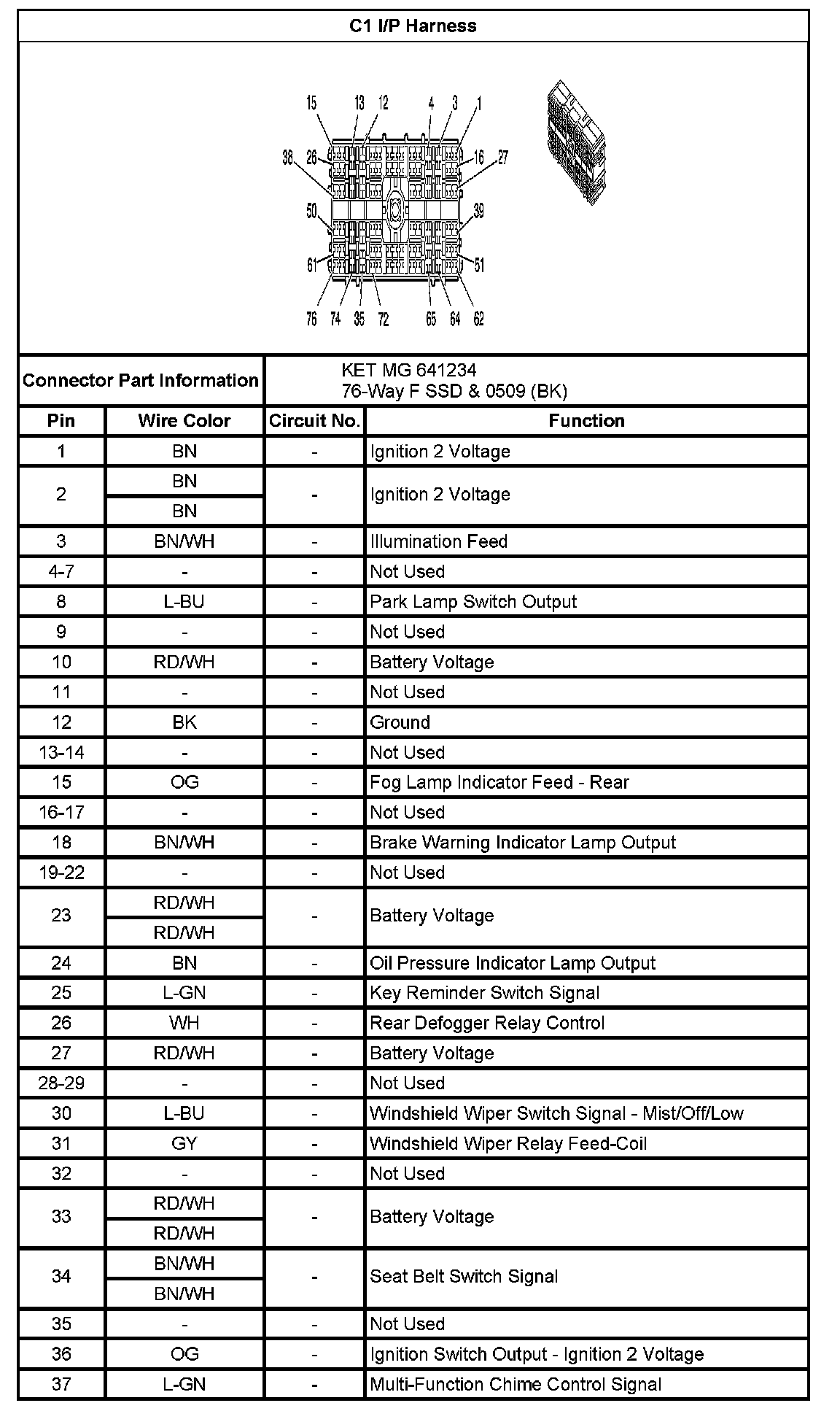

C1 I/P Harness (Pin 1 To 37):

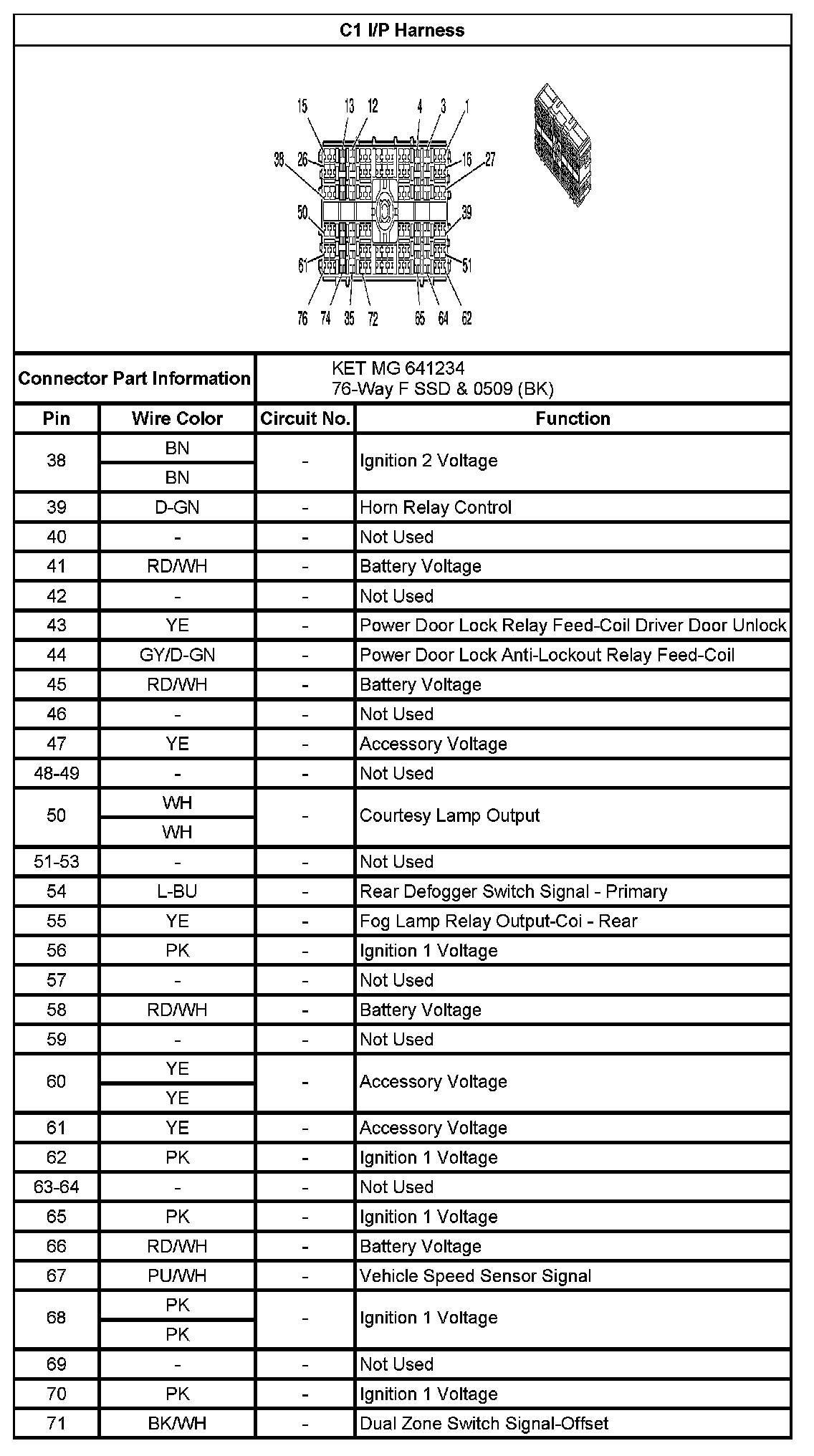

C1 I/P Harness (Pin 38 To 71):

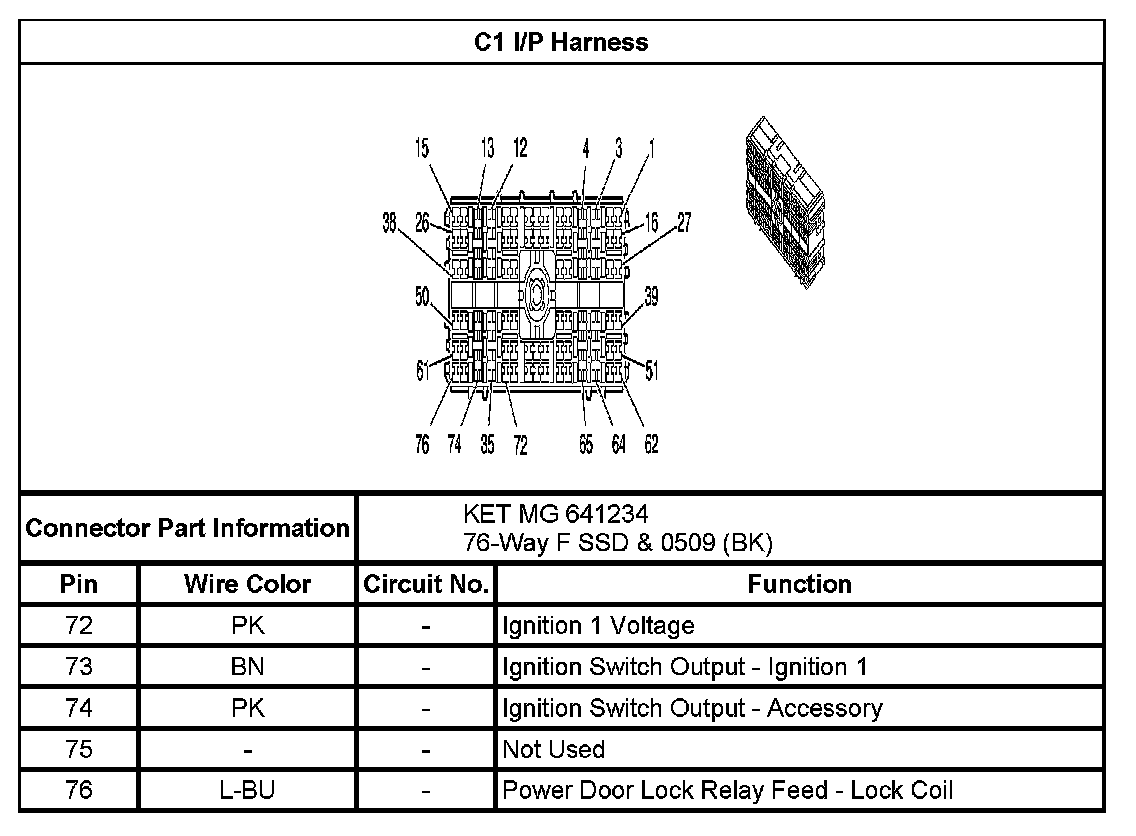

C1 I/P Harness (Pin 72 To 76):
