Home >> Pontiac >> 2007 >> Wave (CANADA) L4-1.6L >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Fog/Driving Lamp Switch >> Diagrams

Fog/Driving Lamp Switch: Diagrams

k

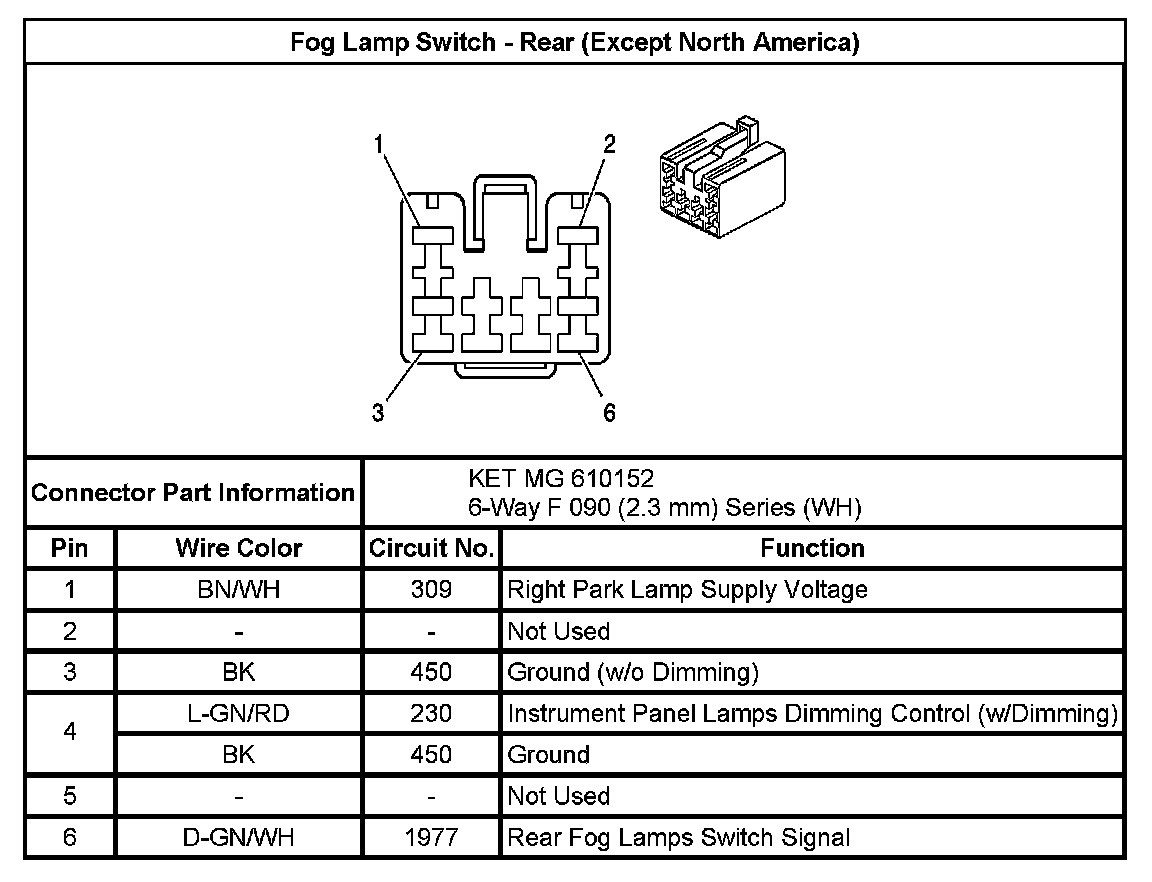

Lighting Systems Connector End Views (Hatchback)
